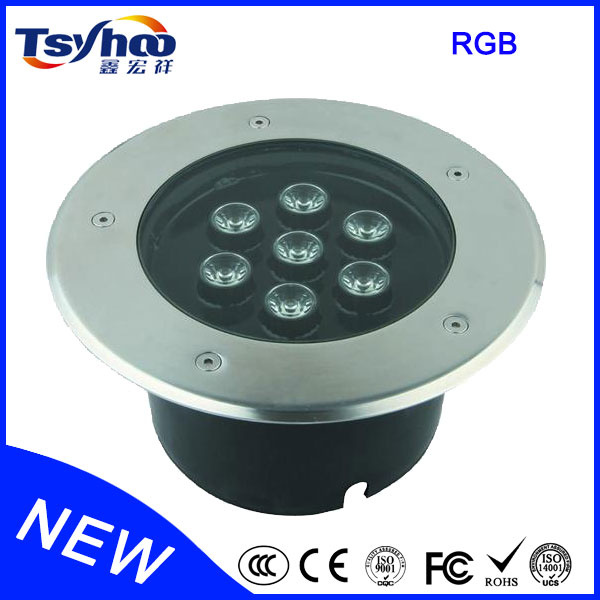

Hot Sale 7W 304 Stainless Steel LED Buried Lights
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
Hot Sale 7W 304 Stainless Steel LED Buried Lights
Specification:
Product description: 7W LED underground
Product Model: XHX-UG2S7W XHX-UG3S7C
Beam angle: 30°
Input wattage: 7W
Product material: Die casting aluminum +toughened glass
Input voltage: AC 100-240V
Life span: >35, 000 hours
Light source: 7PCS 1W LED
Replace lamp: 70W halogen light
IP grade: IP67
Safety Specification: CE & RoHS
Solution: Built-in isolation driver
Features:
1. High power Epistar as light source, with high lumens output.
2. Stainlss steel panel and aluminum shell, static spraying plastic, constant temperature curing.
Application area:
Widely used in Courtyard corridor, lawn garden, Sidewalk etc.
Application:
Applicable to the street, the road, the building, the landscape, the supermarket, underground parking lot, highway toll station, gas station, exhibition hall, gymnasium and other lighting places.
Shipping
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-3 days for samples; 5-25 days for batch goods.
Payment Terms
1. Payment: T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 5pcs.
3. Warranty: 3 years.
4. Package Informations: 1 pcs per box /The volume of the box is 75cmx75cmx75cm.
| Parameter | symbol | Model | Min. | Typ. | Max. | Unit |
| Input Wattage | P |
| - | 7 |
| W |
| Input Voltage | Vin | 50/60Hz | 85 | 230 | 265 | V |
| Input Current | Iin |
| - | - | 50 | mA |
| Power Factor | λ | λ=P/S | - | 0.6 | - | % |
| Operating Temperature | T | 230V/50Hz | -20 | 25 | 45 | ºC |
| Storage Temperature | T | - | -30 | 25 | 60 | ºC |
| Lumen Output (WW) | lm | XHX-UG3S7W | - | 560 | - | lm |
| Lumen Output (CW) | lm | XHX-UG3S7C | - | 630 | - | lm |
| Color Temperature (WW) | CCT | XHX-UG3S7W | 2500 | 3000 | 3500 | K |
| Color Temperature (CW) | CCT | XHX-UG3S7C | 5000 | 5500 | 6000 | K |
| Color Rendering Index | CRI | XHX-UG3S7W |
| 65 |
| % |
| Prod Model: |
XHX-UG06A-701 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
D150*95 |
| Packing Size: |
165*165*105mm |
| LED: |
High Power 1W |
| Cut Hole: |
D135mm |
| Net Weight/ Gross Weight: |
1kg/1.1kg |
| Color: |
Single Color or RGB |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum |
| No. Of Light Source: |
≤10PCS |
| Application: |
park |
| Certification: |
RoHS |
| Input Voltage: |
24v |
| Light Source: |
With Light Source |
| LED Chips Brand: |
Epistar |
| Power: |
7W |
| IP Rating: |
IP67 |
Xinhongxiang Optoelectronics (Shenzhen) Co., Ltd. As one of the most leading LED Products manufacturer in Shenzhen China, covering 10 000 square meters, register capital high up to 30 million CNY, is one high-tech enterprise focus on researching, producing, sale and service of LED products, . Nowadays Xinhongxiang owns fully automatic production lines, independent purifying workshop, researching center, most advanced production and inspection equipments, which guarantee the quality of the LED products. All the products have exported more than 100 countries, such as USA, Mexico, Canada, Brazil, Chile, Argentina, Panama, Colombia, Germany, France, Sweden, Italy, Spain, Russia, Poland, Turkey, Ukraine, South Africa, Egypt, Saudi Arabia, Singapore, Thailand, India etc
Developing History:
From 1996 to 2010, Xinhongxiang Optoelectronics (shenzhen) Co., Ltd, mainly involved in LED encapsulation and LED Display.
Since 2010, owe to enlarge the company scale and build up self-owned brand, Xinhongxiang focus on LED lighting, Shenzhen BESDLED Co., Ltd focus on LED display, business involved in indoor and outdoor LED Encapsulation, LED Display and LED Lighting Products.
LED Display:
Full Color Indoor and outdoor LED Display, single or dual basic color LED signs, LED Curtain, LED Dance Floor, Rental LED Display,
LED Lighting:
LED Bulb, LED Tube, LED Spotlight, LED DownLight, LED Panel Light, LED Street etc,
Comparing with many of LED Manufactures, xinhongxiang owns the following advantages to be your best choice for long term cooperation partner.
1, Fully automatic production lines
Xinhongxiang owns the entire LED manufacturing line, from original Semiconductor to LED chip, then assemble to LED display and LED lighting products.
2, Advanced production equipment
SMD/DIP die bolder, SMD/DIP wire Bolder, Auto Machine of Pouring Glue for SMD/DIP LED, Spectrum and Color Separation Machine, LED oven, Wave solder, Reflow soldering, Spectrum electronic and color tester, temperature and humidity programmable tester, luminance meter etc. Are equipped for our LED Product production.
3, Many Certification approved to clear up the trade barriers
CE, FCC, UL, RoHS, CCC, ISO9001: 2000 etc are obtained.
4, Strong R&D Team
Xinghongxiang absorb many talents, with more than 500 staffs, and including more than 100 engineers and technician, which paves the way for R&D for new products and excellent sales service
5): After-Service,
Principles: Response in time, solve problem ASAP and ensure the use.
Period: During warranty period, free of all maintenance charges;
After Warranty, only charge the material cost.
All the life time, Technology support is free.
