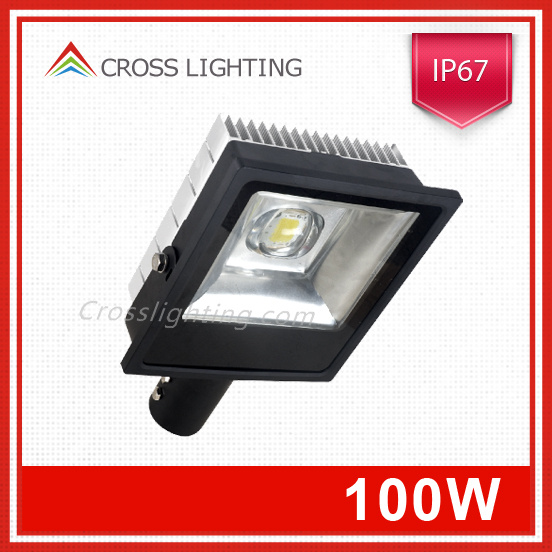

Outdoor Light IP67 100W LED Street Light
100W LED street light is made from aviation aluminum heat dissipation, high strength and die cast aluminium casing, toughened glass, high reflective aluminum and other high quality material assembly LED floodlights.
1. Lighting design uses two optical professional, let the lamp light distribution more reasonable, to achieve better effect of irradiation;
2. Compact structure design, make the product appearance is more concise and beautiful, the lamp lighter;
3. Using the German T type waterproof structure and the integral type high strength die-casting aluminum shell collocation, can let the protection grade lamp at IP67, stronger;
4. The radiator adopts A6063 pure aluminum aviation aluminum, high coefficient of heat conductivity of the heat dissipation performance best, light the LED light attenuation to a minimum, long life expectancy;
5. Driving power supply with constant voltage constant
Why to choose us?
* Your enquiry will be replied in 12hours.
* High-quality staffs will serve you in fluent English
* product can be made as per your request.
* All your private information can be protected.
* Strong supply capacity can help you enlarge your market.
|
Electrical parameters |
|
Input Voltage(AC,V) |
100-240 V |
|
Input current |
- mA |
|
Frequency |
50/60Hz |
|
Light modulation(yes/no) |
no |
|
Power Consumption, Psystem |
100 W |
|
Power factor |
≥0.9 |
|
Output Voltage(DC) |
28-43 V |
|
Output current |
300 mA |
|
Optical parameters |
|
CCT |
Luminous Flux |
Color Rendering Index (CRI) |
Luminous Efficiency |
Beam Spread Angle |
H/3m Beam Spread Area |
|
|
|
2700K~3200K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
3800K~4300K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
5500K~6500K |
≥9500Lm |
≥70 |
≥95Lm/W |
|
- m |
|
|
|
65*135° |
|
Notes: Tolerance of Lumen:±10% |
|
Structure parameter |
|
Lamp material |
aluminum alloy |
|
Lampshade material |
tempered glass |
|
Outline Dimensions (L×W×H) |
176*166*57mm |
|
IP Grade |
IP 67 |
|
Installation mode |
fixed/caliber 40-60mm |
|
N.W. (Kg) |
4.5Kg |
|
One piece per package(L×W×H) |
415*265*138mm |
|
G.W.(Kg) |
5.2 Kg |
|
Manner of packing (L×W×H) |
as per request |
Guangzhou Crosslighting Co.Ltd is established on the basis of Poinmark Lighting (founded in 1989) which is professional manufacture of LED flood light, LED high bay light, LED street light, we have all kinds of product, reliable product quality, advanced production equipment, sophisticated detection equipment.Comprehensive technology, also have the design of electronic circuit, heat radiation, optics, and the waterproof of outdoor lights.We adopt the project of Sanken and Xiantong for Our Electronic circuit, using A6063 aluminum to heat radiation which heat transfer coefficient can reach 209W/M-K, waterproof using suction principle, can reach IP67 on the premise that only use sealing ring without glue.The two light distribution can be done well as per request by ourselves.Our major business is exporting.
