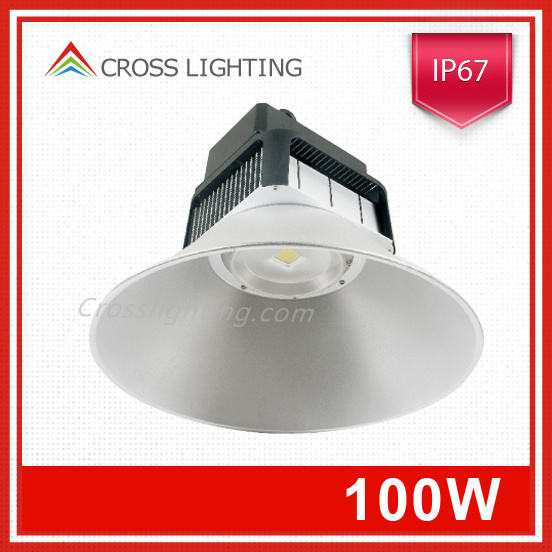

IP67 100W LED High Bay Light with Empistar/LED mining light
100W LED high bay light is made from aviation aluminum heat radiation, high strength and die cast aluminium casing, toughened glass, high reflective aluminum and other high quality material assembly LED high bay light.
1. Lighting design uses two optical design with professional, let the lamp light distribution more uniform and reasonable, to achieve better effect of irradiation;
2. The protection grade lamp can reach more than IP65;
3. The light source LED light attenuation to a minimum, more long life lamp protection;
4. The transmission rate is high, the light softer, less glare;
5. The hook type and rotary type installation more convenient security;
6. Short circuit protection, drive more stable, higher conversion efficiency.
Why to choose us?
* Your enquiry will be replied in 12hours.
* High-quality staffs will serve you in fluent English
* product can be made as per your request.
* All your private information can be protected.
* Strong supply capacity can help you enlarge your market.
Electrical parameters |
Input Voltage(AC,V) |
100-240 V |
Input current |
- mA |
Frequency |
50/60Hz |
Light modulation(yes/no) |
no |
Power Consumption, Psystem |
100 W |
Power factor |
≥0.9 |
Output Voltage(DC) |
28-43 V |
Output current |
3500 mA |
Optical parameters |
CCT |
Luminous Flux |
Color Rendering Index (CRI) |
Luminous Efficiency |
Beam Spread Angle |
H/3m Beam Spread Area |
|
2700K~3200K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
3800K~4300K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
5500K~6500K |
≥8500Lm |
≥70 |
≥85Lm/W |
|
- m |
|
80° |
Notes: Tolerance of Lumen:±10% |
Structure parameter |
Lamp material |
aluminum alloy |
Lampshade material |
PC+UV blanching/ transparent |
Outline Dimensions (L×W×H) |
450*415mm |
IP Grade |
IP 67 |
Installation mode |
suspension type |
N.W. (Kg) |
5.8Kg |
One piece per package(L×W×H) |
460*460*435mm |
G.W.(Kg) |
7 Kg |
Manner of packing (L×W×H) |
as per request |
Guangzhou Crosslighting Co.Ltd is established on the basis of Poinmark Lighting (founded in 1989) which is professional manufacture of LED flood light, LED high bay light, LED street light, we have all kinds of product, reliable product quality, advanced production equipment, sophisticated detection equipment.Comprehensive technology, also have the design of electronic circuit, heat radiation, optics, and the waterproof of outdoor lights.We adopt the project of Sanken and Xiantong for Our Electronic circuit, using A6063 aluminum to heat radiation which heat transfer coefficient can reach 209W/M-K, waterproof using suction principle, can reach IP67 on the premise that only use sealing ring without glue.The two light distribution can be done well as per request by ourselves.Our major business is exporting.
