Product feature:

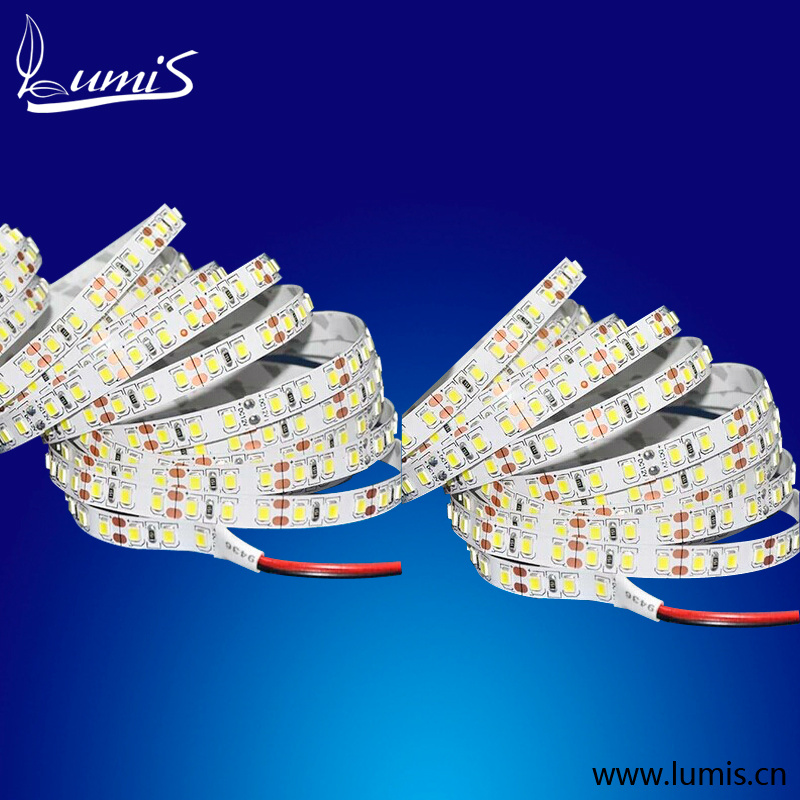

Material technology: The bright SMD2835 lamp as the light emitting element. Made together with the high temperature resistant flexible FPC.
Light Angle: 120 degree
Product length: 5M/Roll
Power rating: 48W/5M
Rated current: 4A/5M
Operating Temperature: -20° C~+45° C
Storage temperature: 0° C~+60° C
Environment humidity: 40-70% RH
Installation: Using 1mm 3M double-sided adhesive fixed on the back.
LED Life time: Mean time between failure(MTBF): 50000 hours
Applications:
Hotels
Conference/Meeting rooms
Commercial Purposes
Schools
Need to energy saving and auxiliary lighting, decorative lighting
Note & warning:
In order to be able to achieve better luminous effect of products.
Recommend every 5 meters lamp with a power connecting.
In order to ensure the lamp with long service life and the environment, can not force pulling the power line in these process, no collision so as not to damage the LED lamp.
In order to ensure the lamp with life and reliability, please don't in the 60mm below diameter arc bending, not half so as not to damage the lamp or fracture.
Will try to install the appropriate environment.
Please note that careful operation, in the case of power on, don't hit the ac power, avoid shock.
Product performance parameter:
|
Model |
Partnumber |
Color |
CCT |
LED/M |
Luminous Flux/M |
Working Voltage (V) |
Current rating (A/M) |
Rated power (W/M) |
Cutting size (mm/pcs) |
Packing (M/Roll) |
|
2835 White 60pcs/M |
LFS12-W82835NP |
Warm White |
3000K |
120 |
800 |
12 |
0.8 |
9.6 |
50 |
5 |
|
LFS12-N82835NP |
Neutral
White |
5000K |
120 |
900 |
12 |
0.8 |
9.6 |
50 |
5 |
|
LFS12-C82835NP |
Cool White |
6300K |
120 |
960 |
12 |
0.8 |
9.6 |
50 |
5 |
|
|
Blue |
|
|
|
|
|
|
|
|
|
|
Green |
|
|
|
|
|
|
|
|
|
|
Red |
|
|
|
|
|
|
|
|
|
|
Yellow |
|
|
|
|
|
|
|
|
