Model:YL-BRL36W1-CE
Size:1210*75*24mm
Input voltage:AC100-240V
System power:36W
PF:0.95
Beam angle:120°
Luminous flux:3500lm
CCT:2500-6500K
Ra:>80
Lifetime:30000Hs
Materials;PC+Aluminum

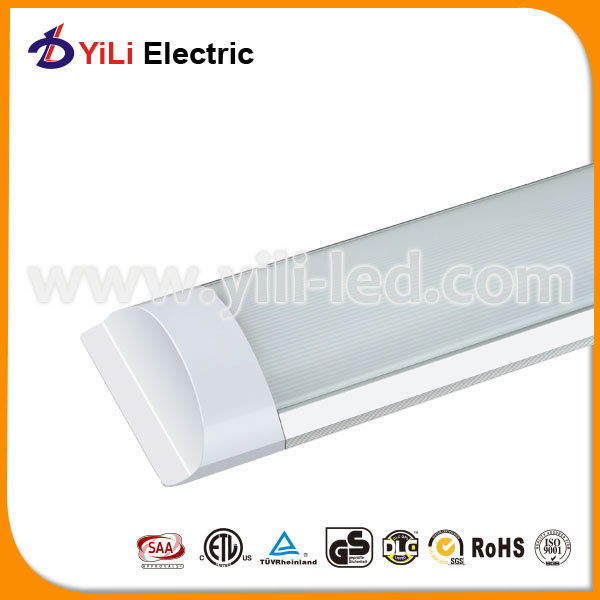

1.2M Panel Light
* Main cooling structure use anodized aluminum and atomization stripes PC, flame-retardant PC plug;
* LED panel lights and LED tube can be replaced;
* CRI above 80, finished luminous efficiency 100Lm / W;
* LED passed LM80 test, finished SCD <6;
* CE certification
Applications
* Widely use in hospitals, schools, shopping malls, restaurants, hotels, office buildings, etc.
Specifications
Parameter Model | YL-MW35B-CE | YL-MW35N-CE | YL-MW36W-CE |
| Watt(W) | 36 | 36 | 36 |
| Lumens(lm) | 3600 | 3650 | 3700 |
| Beam Angle(deg) | 120 | 120 | 120 |
| CCT(K) | 2700 | 4000 | 6000 |
| CRI(Ra) | >80 | >80 | >80 |
| Energy Efficiency Classes | A+ | A+ | A+ |
| PF | ≥0.95 | ≥0.95 | ≥0.95 |
| Efficiency Lm/W | >90 | >90 | >90 |
| Voltage(V) | AC100-240 | AC100-240 | AC100-240 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Lifespan(hrs) | 25000 | 25000 | 25000 |
| Working Temperature(ºC) | -20~40 | -20~40 | -20~40 |
| Storage Temperature(ºC) | -20~85 | -20~85 | -20~85 |
