Hight Resolution P4 Indoor Fullcolor LED Display Wall /Sign
Price: |
US $ 800-880/Square Meter |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Square Meter |
Pay Type: |
T/T,Paypal,Western Union |
Product Features
- Energy saving design,good cooling system,high definition,
- cost-effective,outstanding reliability,complete function,
- are favorite by new and old customers
- Ultra-high refresh rate,can support video shooting,
- clear picture quality assurance
- Quick and easy assembly,removing System,save loading time

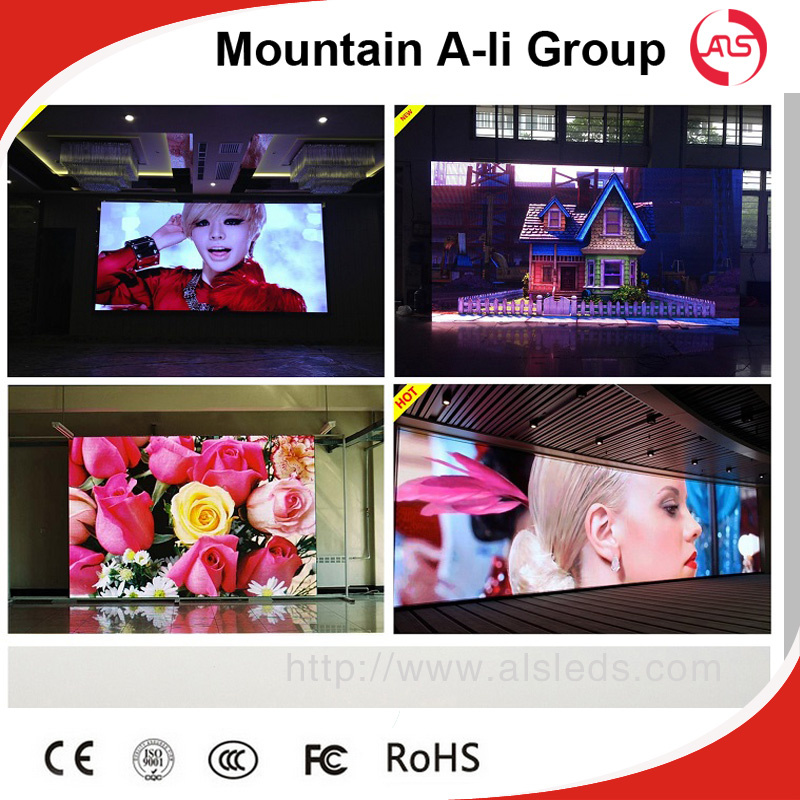

Using Range
- Widely used in large venue,stadiums,bank,government,
- terminal,dock,station,stock market,medical systems,
- electricity,exhibition etc.

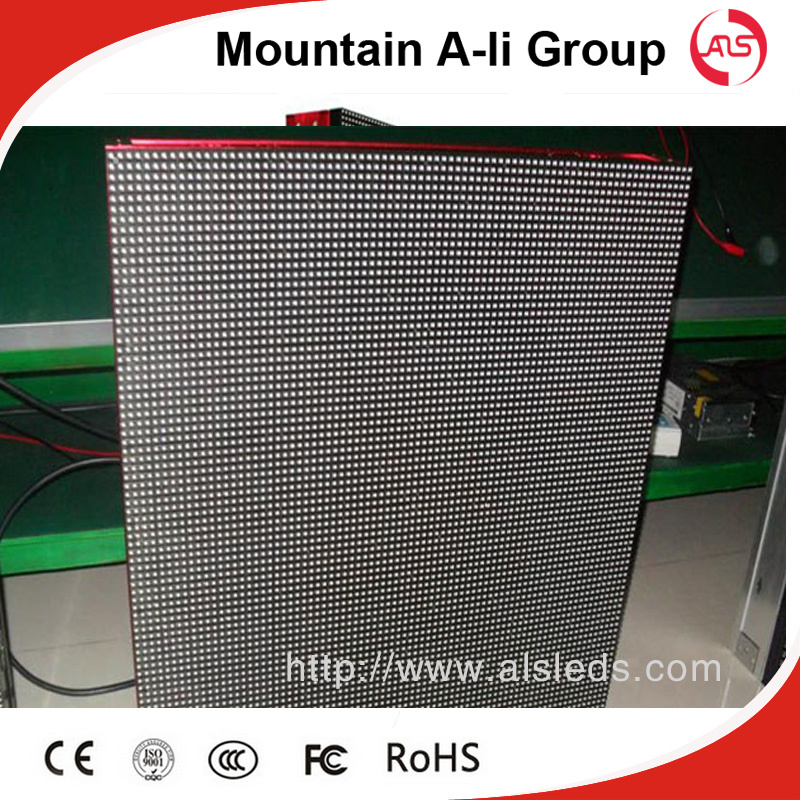

The Technical Parameters of Indoor p4 led screen SMD 3 in 1
Item | Parameter |
---|
Product model | P4-16S |
Module size | 256mm*128mm |
Pixel pitch | 4mm |
Pixel density | 62500dots/m2 |
Pixel configuration | smd 3in1 |
Module resolution | 64dots(W)*32dots(H) |
Maximum power consumption | 18W |
Module thickness | 13.07mm |
Module weight | 0.18kg |
Driving method | Constant current driving |
Scan mode | 1/16 scan |
Interface type | HUB75-A |
Brightness | ≥1500cd/m2 |
The specifications of cabinet |
|
Cabinet size | 512mm*512mm |
Module quantity | 8pcs |
Power supply | 5V/40A *2pcs |
Cabinet resolution | 128*128dots |
Optimal viewing distance | 4m~20m |
Optimal viewing angle | 160°(W) 120°(H) |
Temperature | Storage:-35ºC~+85ºC Working:-20ºC~+50ºC |
System operating humility | 10%-95% |
The specifications of power supply |
|
Operating voltage | AC220V±10% |
Average power consumption | 85W/ |
Maximum power consumption | ≤160W/ |
Current | ≤20mA(single LED) |
The specifications of control system |
Computer | Pentium4 or above |
Operating system | WIN98/2000/NT/XP |
Control model | Synchronization control |
The specifications of the main technical parameters |
|
Driving device | Constant current driving |
Refresh rate | ≥400Hz |
Grey scale | RGB each 256 grade, can display 16.7M colors |
MTBF | ≥9000hours |
Power switch | Automatic switch |
Display mode | 800*600/1024*768 |
Prod Model: |
P4 Indoor Fullcolor LED Display wall |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: |
256mm*128mm |
Pixel Resolution: |
64dots(W)*32dots(H) |
Max Power Consumption: |
18W |
Weight: |
0.18kg |
Cabinet Size: |
512mm*512mm |
Best Viewing Distance: |
4m-20m |
Tube Chip Color: |
Full Color |
Display Function: |
Video Display |
Pixel Pitch: |
4mm |
Pixel Configuration: |
1R,1G,1B |
Scanning Mode: |
1/16 Scan |
Display Type: |
LED Video Display |
Application: |
Shopping Guide |
Certification: |
FCC |
Pixel Density: |
62500dots/M2 |
System Operating Platform: |
Windows |
IP Rating: |
IP31 |
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
