| Price: | US $ 20-1000/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
Main Parameter | ||
Category | Parameter | |
Pixel Pitch | 10mm | |
Optimum Viewing Distance | 10-25m | |
Density of Pixel | 10000pixels/ | |
Brightness | ≥5000nite | ≥6500nite |
Module Resolution | 32*32 | |
LED Encapsulation | DIP346 1R1G1B | SMD5050 1R1G1B |
Driving Method | Real 4 Scan | Real 2 Scan |
Optimum Viewing Angle | H: 110°V:50° | H: 120°V:100° |
Module Size | 320*320*28.4(mm) | 160*160*22.5(mm) |
Module Power | 50w | 70w |
Module Weight | 1200g | 1100g |
Cabinet Size | 960*960*178.4(mm) | 960*960*173(mm) |
Cabinet Resolution | 96*96 | |
Cabinet Power | 1125w | 1100w |
Cabinet Weight | 55kg | 49kg |
IP Rating | Front/Rear:IP65/IP43 | |
Refresh Rate | 1000-4000Hz( Different according to the different Driving IC ) | |
Luminance Consumption | Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25ºC. | |
MTBF | >5000hours | |
Defective Dot Rate | <0.0001 | |
Life Span | >100000hours | |
Working Voltage | 110-240 AC±10% 50-60Hz | |
Working Temperature/Humidity | -30ºC- +50ºC/10-90%RH | |
Storage Temperature/Humidity | -40ºC- +60ºC/10- 90%RH | |
Input Signal | RF,S-VIDEO,RGBHV,YUV,YC & COMPOSITION,etc | |
Connector | CAT5 Cable(Length≤1430m),Optical link(Length≤20km,Optional) | |
Note: The above parameter is just for reference. Changes can be made according to customers' requirements. | ||
| Prod Model: | P10-ODIS-01 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Delivery Time: | Within 7 Days |
| Packing Way: | Wooden Case and Flight Case |

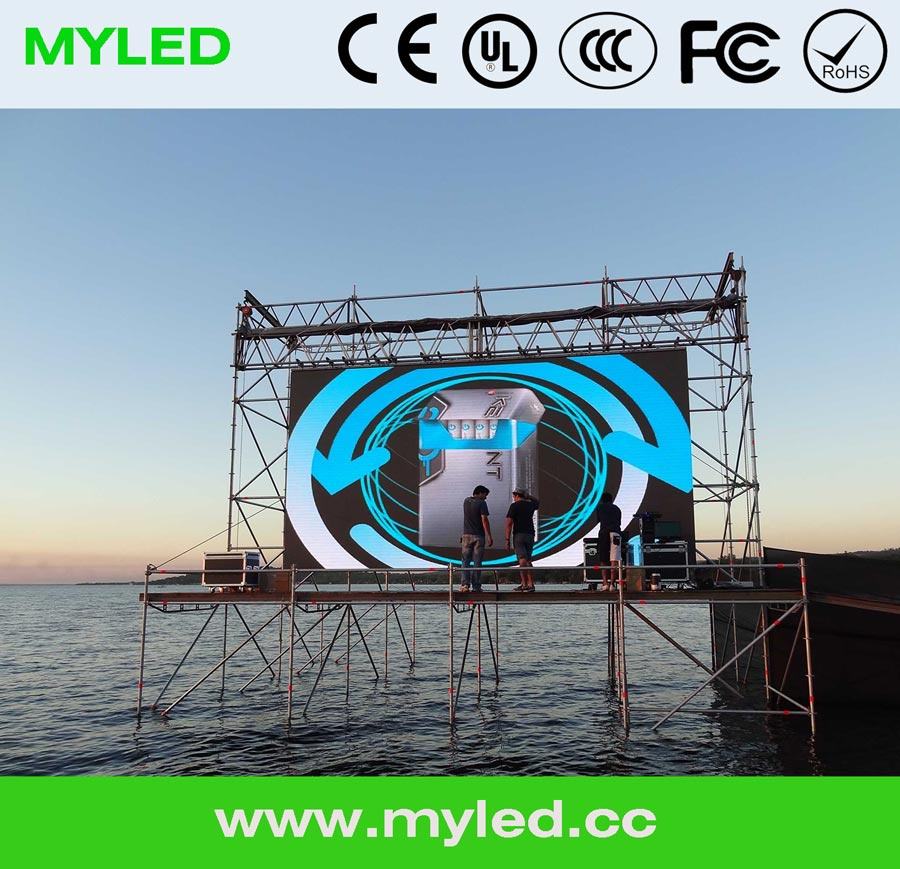

| Display Type: | LED Video Display |
| Tube Chip Color: | Full Color |
| IP Rating: | IP65 |
| Pixel Configuration: | 1R, 1G, 1B |
| Certification: | ETL |
| Pixel Pitch: | 10mm |
| Display Function: | Video Display |
| Application: | Advertising |
| Scanning Mode: | 1/4 Scan |
| Pixel Density: | 10000 dot / m² |
| Average Power Consumption: | 600W / m² |
