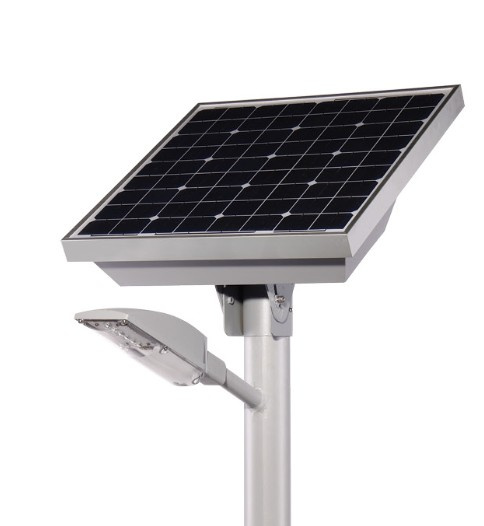

Product Description
1. Led Solar light pannel, battery, photovovltaic controller are integrated, make the installation and
Led solar street lamp Maintenance easily.
2. The inclination angle of solar pannel can be adjusted from10 to50. It suits for anyplace, and
It can be installed coherence in mass production
3. New solar light distribution design make the illumination zone larger, and the led solar street light uniformity will Be better, so people will have better vision when walks on this way.
4. Optimize algorithm of the software controller, makes led solar light street have a better performance,
Increase the brightness of the lamp with 80%, and extended battery life of 1-3 years.
Jingri lighting professional making landscape of all kinds of LED lights, buried lights, courtyard
Lamp, lamp, project-light lamp, floodlight, wash wall lamp, mining lamp, street light, tunnel
Lamp, lamp pole, lawn lamp, point lights, underwater lights, LEDT courtyard lamp, LED
Buried lights, LED project-light lamp, LED lawn lamp, LED street light, LED floodlight
|
|
Product Code |
JRS02-15 |
|
|
Working voltage |
DC12V |
|
|
Continuously raining working days |
3-8day |
|
|
Woking time per day |
6-12hour |
|
|
Pole height |
3M |
|
|
Lamp height |
2.8M |
|
|
Solar panel |
17V/40W |
|
|
Battery |
12V/17AH |
|
|
Controller |
Light control,time control,overvoltage,undervoltage, shortcircuit,lighting stroke protection |
|
|
Installation pipe diameter |
Ø76mm |
|
|
Protection grade |
IP54 |
|
|
Weight |
20kg |
|
|
Packing Size |
640×610×347mm
|
