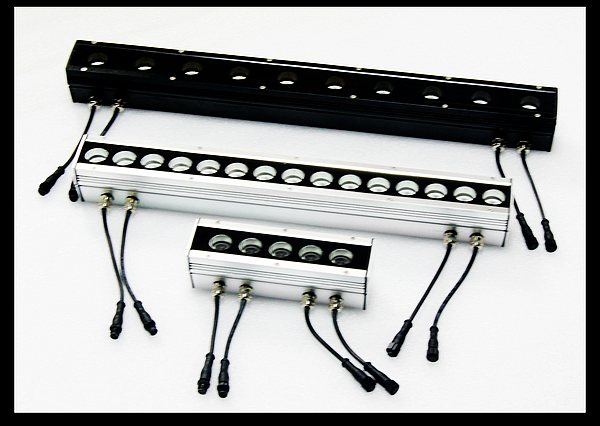

High power LED wall washer light:
Description:
Model: XHY-W2-01/02/03/04
. Main Material: Aluminum+Glass+PMMA or PC
Control mode: DMX512, 4-wire and 3-loop controller
LED Brand: Osram/CREE/Edison
Color: White/Warm White/RGB
Working Voltage: DC 24 V
Work Temp: -30~+45ceilsius degrees
Lifespan: 30000 Hours
Waterroof: IP44/54/65/67
Application:
It can be used outside hotel, in the garden, street, plaza, park as well. It's suitable for
Outdoor lighting.
|
Part no. |
Length(mm) |
LED QTY(Pcs) |
Color |
Color Temp(K) |
Lumen(Lm) |
Power(W) |
CRI(Ra) |
Beam Angle |
|
XHY-W2-01WW |
306 |
9 |
Warm White |
2700K |
620 |
10 |
> 80% |
15*50° & 25° |
|
XHY- W2-01W |
306 |
9 |
Daylight |
5500K |
700 |
10 |
> 70% |
15*50° & 25° |
|
XHY-W2-02WW |
600 |
18 |
Warm White |
2700K |
1100 |
21 |
> 80% |
15*50° & 25° |
|
XHY- W2-02W |
600 |
18 |
Daylight |
5500K |
1300 |
21 |
> 70% |
15*50° & 25° |
|
XHY-W2-03WW |
1000 |
30 |
Warm White |
2700K |
2000 |
36 |
> 80% |
15*50° & 25° |
|
XHY- W2-03W |
1000 |
30 |
Daylight |
5500K |
2200 |
36 |
> 70% |
15*50° & 25° |
|
XHY-W2-04WW |
1200 |
36 |
Warm White |
2700K |
2300 |
43 |
> 80% |
15*50° & 25° |
|
XHY- W2-04W |
1200 |
36 |
Daylight |
5500K |
2500 |
43 |
> 70% |
15*50° & 25° |
|
Part no. |
Length
(mm) |
LED QTY(Pcs) |
Color |
Wave length(nm) |
Lumen(Lm) |
Power(W) |
Connector |
Beam Angle |
|
XHY-W2-01RGB |
306 |
9 |
RGB |
R: 620-625
G: 515-520
B: 460-470 |
270 |
10 |
8Pin connector |
15*50° & 25° |
|
XHY- W2-02RGB |
600 |
18 |
540 |
21 |
15*50° & 25° |
|
XHY-W2-03RGB |
1000 |
30 |
950 |
36 |
15*50° & 25° |
|
XHY- W2-04RGB |
1200 |
36 |
1100 |
43 |
15*50° & 25° |
