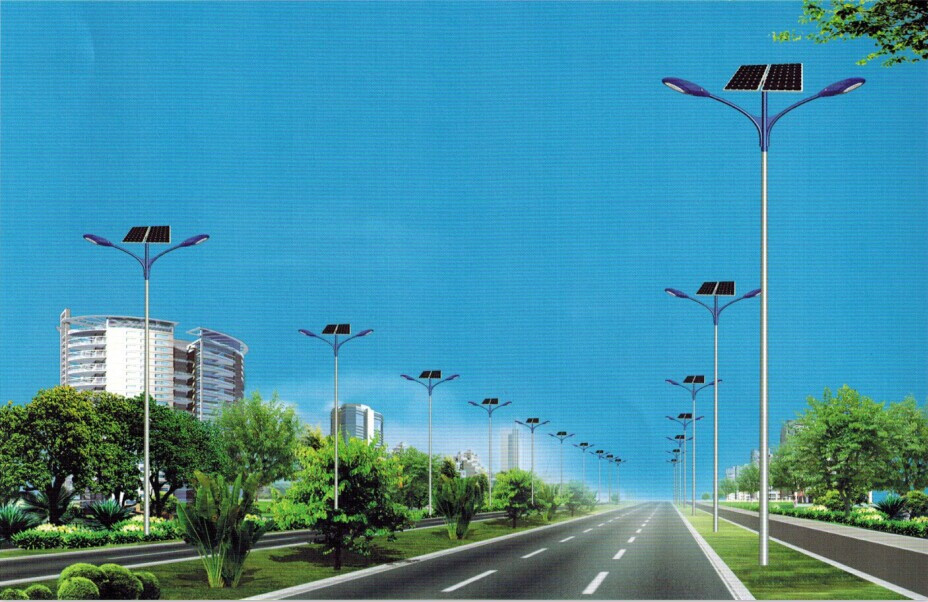

Applications:
Courtyards, park ,Side, Streests, ect.
Characteristics:
1.Independent intellectual propertise and many advanced technologies are integrated to manufacturing LED light.
2.High -pressure die casting aluminum body featuring high strength and anti-corrosion
3.High efficiency and reasonable light distribution techniques, ultraviolet resistance, and high luminous efficiency(>90%)
4.The diffuser is made of toughened glass with high light transmittance. It may prevent giare and radiant heat. 5.Power adjustment and brightness control by means of the programmable voltage regulation. It is more energy saving and very fit for solar or wind lighting system
6.The lamps are treated with strict test process, ensuring the quality of each lamp.
Parameters

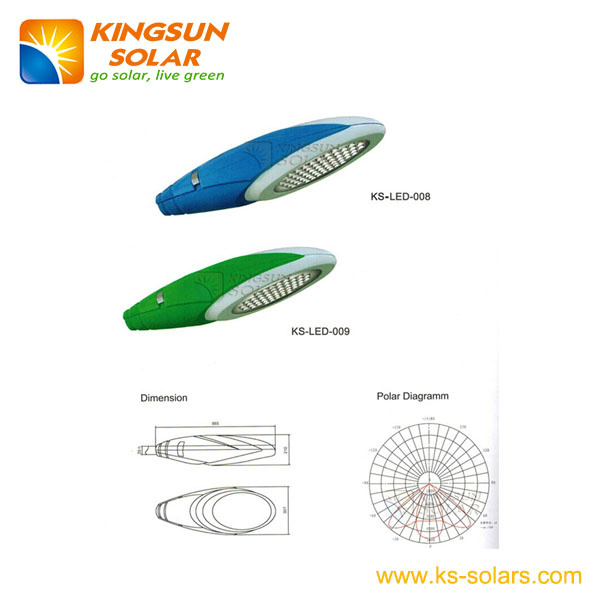

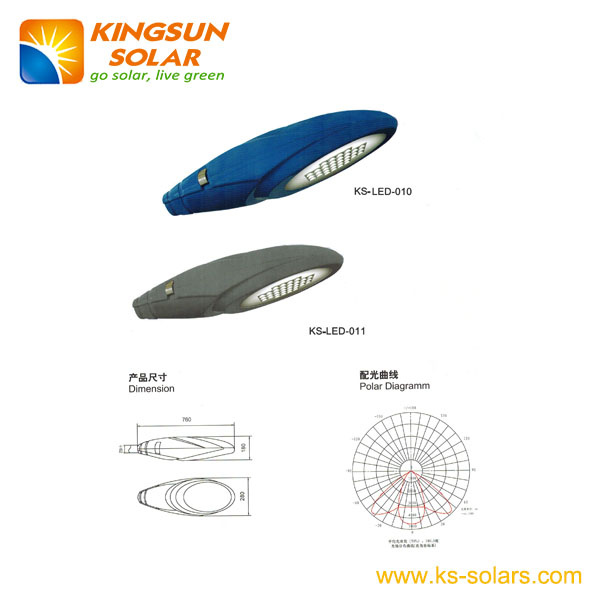

model |
KS-LED 008 |
KS-LED-009 |
KS-LED-010 |
KS-LED 011 |
Power |
60W |
50W |
40W |
30W |
LED Quantity |
60pcs |
50pcs |
40pcs |
30pcs |
Luminous Flux |
≥ 5100LM |
≥ 4250LM |
≥ 3400LM |
≥ 2550LM |
Color Temperature |
5000-7000K |
5000-7000K |
5000-7000K |
5000-7000K |
Average illumination intensity |
≥ 14LX |
≥ 13LX |
≥ 13LX |
≥ 12LX |
Rated Power |
73W |
61W |
45W |
35W |
Operating Current |
350mA |
350mA |
350mA |
350mA |
Operating Voltage |
AC100-240V,50-60HZ DC12/24 |
AC100-240V,50-60HZ DC12/24 |
AC100-240V,50-60HZ DC12/24 |
AC100-240V,50-60HZ DC12/24 |
Power Factor |
≥ 0.9 |
≥ 0.9 |
≥ 0.9 |
≥ 0.9 |
Protection Class |
IP65 |
IP65 |
IP65 |
IP65 |
Ambient Temperature |
-25ºC-50ºC |
-25ºC-50ºC |
-25ºC-50ºC |
-25ºC-50ºC |
Pole Distance |
30M |
30M |
30M |
30M |
Installation Height |
6-8M |
6-8M |
3-6M |
3-6M |
Pack Size |
930*340*280mm |
930*340*280mm |
800*370*280mm |
800*370*280mm |
Weight |
7.4kg |
7.4kg |
5.95kg |
5.87kg |
Nanjing KingSun Solar Technology Co., Ltd., is a professional manufacturer and supplier of Solar Panel (Solar Module), Solar Power System, Integrated Solar Street Light and LED Solar Light series products in China that located at Nanjing City.
Our products are exported to Europe, Middle East, Africa, South America, Australia, New Zealand and Aisa countries with TUV IEC61215 & 61730, ISO, CE and RoHS certificates of international quality standard, also we have flexible and timely after-sales service. We offer all products with high quality and sustainable service to our customers and establishing a long-term cooperative relationship with them.
Through the continuous technological innovation and expanding of the production scale, KingSun Solar is continuing to lower manufacturering costs to make the unexhaustible and green solar energy to step in thousands of households, and create a better tomorrow for human development.
KingSun Solar carry out enterprise culture of " Integrity, Innovation, Universitied, Pioneering ", and the spirit of " One earth, One Home, Solar change the Future " is our permanent pursuit, our practical attitude and accountability make our team work more efficient and more competitive.
Where there is a Sunlight, there is a KingSun Solar.
Welcome to KingSun Solar!
For more information and inquiry, please contact us freely.
