Product Description

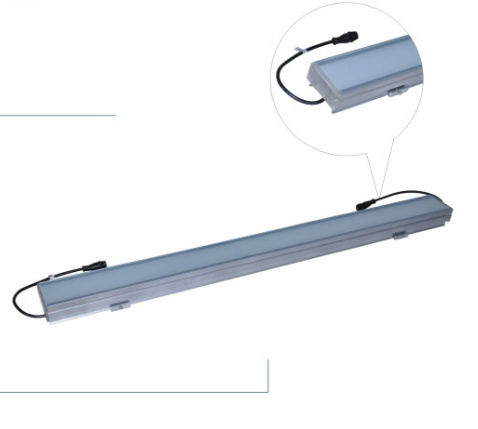

Architecture and Landscape Lighting / 36*0.2W LED Wall Washer
SLX-80 is made by 36 PCS of 0.2W 5050 SMD, with super brightness and low power consumption. Consist of 36PCS LED. Color changing, strobe, chasing from Pixel to Pixel, speed adjustment, etc. RGBW color mixing, HIS color mixing, over 16 million colors. Very good for TV center, stage, events, disco bar, home party, club, etc.
Specification
1. Light source: 36PCS*0.2W good saturation; White=6500K, Ra>85, Perfect color rendering
2. Light Output: 432 Lumens
3. Beam angle: 120°
4. Control signal: DMX512
5. Control mode: Stand alone/master and slave
6. Chanel option: 5, 9, 16 CH
7. Housing material: Tensile aluminum
8. Housing color: White/black/silver.
9. Protection rate: IP65
10. Power input: AC100-240V (47-63Hz)
11. Max power consumption: 20W
12. Weight: 3.64KG
13. Size: 1000*80*50 mm
Features:
Mid-power LEDs 0.2W each
Flicker free, with strobe/gradual change/color change/water effect inbuilt programs;
Switch power, good for LED working.
Protection rate: IP65
5/9/16 DMX channels options.
With waterproof air valve to balance pressure, get rid of mosuisture on glass innerface.
|
SIZE (mm) |
Input voltage |
|
color |
control |
LED (PCS*W) |
Beam angle (°) |
Item no. |
|
1000*80*50 mm |
DC24V |
8W |
RGB |
SPI |
36P5050*0.2W |
120 |
SLX-80-9W-120-RGB-SP-D24 |
|
8W |
S |
SPI |
36P5050*0.2W |
120 |
SLX-80-9W-120-S-SP-D24 |
|
11W |
RGB |
SPI |
48P5050*0.2W |
120 |
SLX-80-12w-120-RGB-SP-D24 |
|
11W |
S |
SPI |
48P5050*0.2W |
120 |
SLX-80-12w-120-S-SP-D24 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
