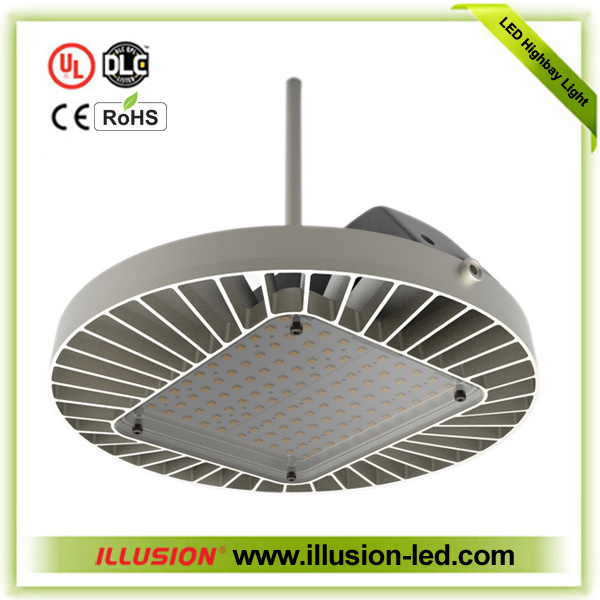

LED Highbay Light
Illusion Type A Highbay Light is top class lighting Fixture which combines innovative designand excellent material selection. And it adopts the high brightness Samsung LED 3535 as light source and Meanwell Driver. At the same time, it drivers clear benefits for the installer and being smaller and lighter than conventional high bay, which obtain a wider range of applications.
Application: Exhibition halls; Industry; Warehouse; Amusement parks
Flexible Installation: Rings Installation; Hanger Installation; Wall Mounted Installation
Product Description:
- Samsung LED and Meanwell Driver guarantee the high quality
- Light efficiency is up to 90lm/w
- pf>0.9, CRI>80 and with IP65 Protection
- Die-casting aluminum lamp bpdy is better to heat sink
- Life time is 50000Hours
Technical Parameters:
| LED High Bay Light Type A-1 Series |
|
|
|
|
|
|
|
| Samsung 3535 LEDs+ Meanwell, Comply with CE,ETL,ROHS |
|
|
| |
|
|
|
| Part No. | Voltage
(V) | Power(W) | CCT(K) | Luminous Flux(lm) | CRI | Dimension(mm) |
|
| IL-HBA01-080 | AC100-240 | 80 | 6000K | 7200 | ≥80 | Dia340*133 |
| IL-HBA01-120 | AC100-240 | 120 | 6000K | 10800 | ≥80 | Dia340*133 |
| IL-HBA01-150 | AC100-240 | 150 | 6000K | 13500 | ≥80 | Dia430*138 |
| IL-HBA01-200 | AC100-240 | 200 | 6000K | 18000 | ≥80 | Dia430*138 |
| IL-HBA01-240 | AC100-240 | 240 | 6000K | 21600 | ≥80 | Dia430*138 |
| IL-HBA01-320 | AC100-240 | 320 | 6000K | 28800 | ≥80 | Dia530*148 |
| IL-HBA02-080 | AC100-240 | 80 | 6000K | 7200 | ≥80 | 340*350*133 |
| IL-HBA02-120 | AC100-240 | 120 | 6000K | 10800 | ≥80 | 340*350*133 |
| IL-HBA02-150 | AC100-240 | 150 | 6000K | 13500 | ≥80 | 430*442*138 |
| IL-HBA02-200 | AC100-240 | 200 | 6000K | 18000 | ≥80 | 430*442*138 |
| IL-HBA02-240 | AC100-240 | 240 | 6000K | 21600 | ≥80 | 430*442*138 |
| IL-HBA02-320 | AC100-240 | 320 | 6000K | 28800 | ≥80 | 530*536*148 |
Company Profile:
ILLUSION LED LIMITED, established in 2006, concentrates on LED strips, LED modules, LED panels, LED tubes, LED downlights, LED spotlights and so on. We are the only factory in Shenzhen with complete industrial chain for LED illumination field. Own strong R&D technology and system complete solution, excellent quality control and advanced manufacturing equipment. Can cover all industry, including the product's research design, package, LED driver, the structure of hardware, assembling and testing of lamps, lighting design and installation.
Illusion has devoted to oversea market for 9 years, network spreading all over the world. Win the widespread acclaim of the market and customers, honored with "precursor and leader of Shenzhen LED lighting industry".
There are over 30 design engineers to supply high quality product and solutions for our cooperators at any time, to bring energy-saving and eco-environment LED lightings for consumers.
ILLUSION has run strictly according to ISO9001:2008 quality control system, accumulating rich advanced production management experience, and build a set of effective quality management system and perfect quality supervision and detection method. Till now, the products have passed GS, DLC, SAA, UL, ETL, CE, EMC, ROHS and other international authoritative certifications.
ILLUSION adheres to "Prestige first, customer is supreme, pursuing perfect" management aim, with the idea of "Honesty, creativity, pragmatic, efficient" to be service of the customers all over the world. Earnestly carry out the social responsibility, sufficient notice to the customer's interests. Do our best for the development of global lighting industry.
ILLUSION LED LIMITED, established in 2006, concentrates on LED tube light, LED Panel Light, LED Downlight, LED Strip Light, LED Surface Mounted Ceiling Light, LED High Bay, LED Street Light and so on. We are the only factory in Huizhou with complete industrial chain for LED illumination field. Own strong R&D technology and system complete solution, excellent quality control and advanced manufacturing equipment. Can cover all industry, including the product's research design, package, LED driver, the structure of hardware, assembling and testing of lamps, lighting design and installation.
Illusion has devoted to oversea market for 9 years, network spreading all over the world. Win the widespread acclaim of the market and customers, honored with the precursor and leader of Shenzhen LED lighting industry.
There are over 30 design engineers to supply high quality product and solutions for our cooperators at any time, to bring energy-saving and eco-environment LED lightings for consumers.
ILLUSION has run strictly according to ISO9001: 2008 quality control system, accumulating rich advanced production management experience, and build a set of effective quality management system and perfect quality supervision and detection method. Till now, the products have passed GS, DLC, SAA, UL, ETL, CE, EMC, RoHS and other international authoritative certifications.
ILLUSION adheres to "Prestige first, customer is supreme, pursuing perfect" management aim, with the idea of "Honesty, creativity, pragmatic, efficient" to be service of the customers all over the world. Earnestly carry out the social responsibility, sufficient notice to the customer's interests.
Do our best for the development of global lighting industry.
