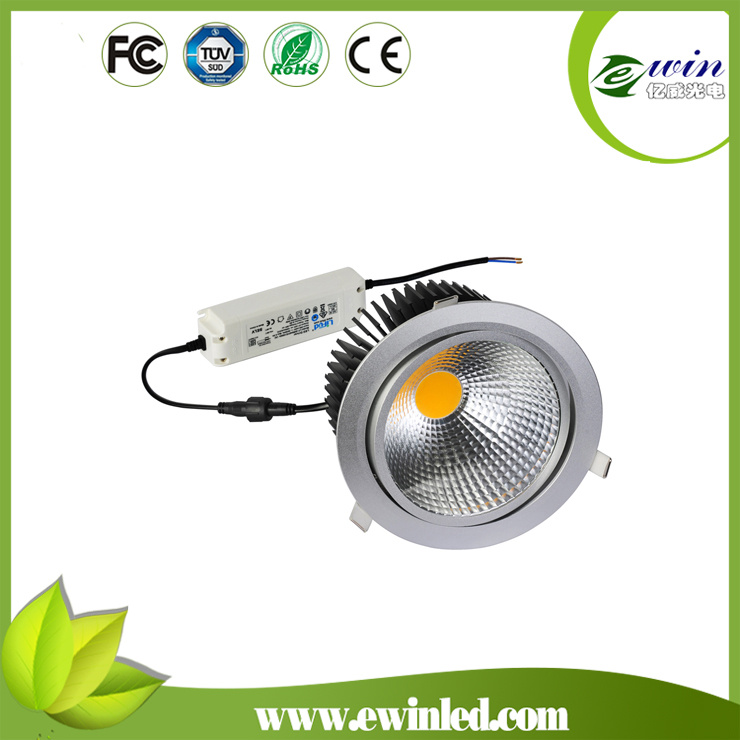

High Power 40Watt COB LED Down Lights with CE & RoHS
DownlightFeature:
1. High CRI , Ra : 82-95
2. Intensive brightness : 110-120LM/W
3. LED COB chip : small chip, low current, only0.06w/ chip . Compared to aluminum base in the market , the ceramic plate cooler is with better heat hissipation. Surface temperature : 50-60ºC
4. Lifud Constant isolation LED driver , with TUV,CE,ROHS approval .
5. heat dissipation cooler : pure aluminum as material , white ring paint spraying , black oxidation treatment , more beautiful , more stable
6.All items are with IES document. Easily for lighting design.
Shenzhen Ewinled 6W COB LED down lihgt ( Power :1*6W) |
| Item No. | EW-DL6W-COB-WW | EW-DL W-COB-W | EW-DL6W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 500-530lm | 530-550lm | 550-580lm |
| Size(Mm) | Ø90*H75mm |
| Installation Size | Ø75mm |
| Shenzhen Ewinled 6W COB LED down lihgt ( Power :1*6W) |
| Item No. | EW-DL6W-COB-WW | EW-DL W-COB-W | EW-DL6W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 500-530lm | 530-550lm | 550-580lm |
| Size(Mm) | Ø90*H75mm |
| Installation Size | Ø75mm |
| Shenzhen Ewinled 15W COB LED down lihgt ( Power :1*15W) |
| Item No. | EW-DL15W-COB-WW | EW-DL15W-COB-W | EW-DL15W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 1350-1450lm | 1370-1470lm | 1400-1500lm |
| Size(Mm) | Ø138*H105mm |
| Installation Size | Ø120mm |
| Shenzhen Ewinled 20W COB LED down lihgt ( Power :1*20W) |
| Item No. | EW-DL20W-COB-WW | EW-DL20W-COB-W | EW-DL20W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 1800-1900lm | 1850-1900lm | 1900-2000lm |
| Size(Mm) | Ø138*H105mm |
| Installation Size | Ø120mm |
| Shenzhen Ewinled 30W COB LED down lihgt ( Power :1*30W) |
| Item No. | EW-DL30W-COB-WW | EW-DL30W-COB-W | EW-DL30W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 2500-2700lm | 2600-2800lm | 2700-2900lm |
| Size(Mm) | Ø160*H120mm |
| Installation Size | Ø140mm |
| Shenzhen Ewinled 40W COB LED down lihgt ( Power :1*40W) |
| Item No. | EW-DL40W-COB-WW | EW-DL40W-COB-W | EW-DL40W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 3200-3400lm | 3300-3500lm | 3400-3600lm |
| Size(Mm) | Ø180*H120mm |
| Installation Size | Ø160mm |
| Shenzhen Ewinled 50W COB LED down lihgt ( Power :1*50W) |
| Item No. | EW-DL50W-COB-WW | EW-DL50W-COB-W | EW-DL50W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 3600-3800lm | 3700-3900lm | 3800-4000lm |
| Size(Mm) | Ø230*H140mm |
| Installation Size | Ø200mm |
Features of the led downlight:
1. Use die-casting aluminum alloy as the material of main-body.
2. Use high transparent PMMA as lens.
3. Unique and beautiful looking design.
4. Excellent heat dissipation performance.
5. Isolated driver, ensure the long life span.
6. Energy-saving and high efficient LED driver.
Description of the led downlight:
Luna COB 6" Downlight is designed to be rotatable 358° At horizontal and 30° At vertical direction,
Could meet various need on emitting directions. It is 25W including driver and delivers over 2000lm
Of 80+ CRI light while achieving up to 85lm/W. This outstanding performance is achieved by one 35W
COB with Epistar chip. Its pending patent design especially the heat sink make sure perfect heat
Dissipation and low temperature on light body.
Shenzhen Ewin Lighting Technology Co., Ltd is a subsidiary corporation of Lechance Group. She is a a high-tech enterprise who specializes in developing, manufacturing and selling of LED Lighting, and lighting accessories. Our product includs LED downlight, LED Panel Light, LED neon flex, LED tube, LED bulb, LED Linear Light, LED spotlight, LED flexible strip, LED brick/LED Tile Light, LED downlight, LED Tri Proof Light, LED Tunnel Light, LED High Bay Light, LED floodlight, LED streetlight, LED Decorative light, explosion proof LED high bay light, explosion proof floodlihgt, Wireless DMX512 controller, LED power supply, USB DMX controller, etc.
We began to export in 1999. Up to now, we have grown up to a enterprise who employs over 1000 staff members include 20 R&D members. We own advanced production lines, strong R&D team and excellent production and quality control team. To meet the increasing market demands, we always adjust our product structure to design innovative products. We have accumulated considerable know-how in our field, supplemented by superior services...
We sincerely welcome customers at home and abroad to visit our factory for purchasing and OEM. Source for super quality products.
