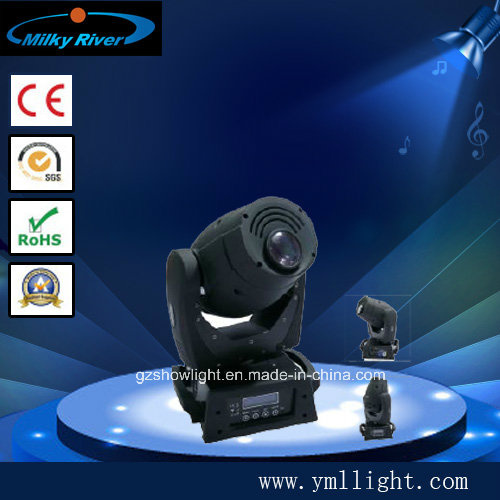

high power led 150w led moving head spot light
Technical Parameter
Power supply:AC100-240v, 50/60Hz
Power consumption:240w
Light source: Luminous high power 120w white LED UNIT(CBM-360-W)
Lamp life: 50,000 hours lamp lifespan and low power consumption
Color wheel: 1 color wheel with 7 dichroic colors plug open
Variable direction rainbow effect with speed adjustable
Gobo wheel: One rotating gobo 7 interchangeable gobos +open(3 meter and 4 glass gobos) with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
One static gobo 9 interchangeable gobos+open
Control channels: 16DMX channels, other DMX modes available, 3 pin DMX connectors, DMX512, Master-slave and sound activated controllable or auto operation(8 built-in programs)
Movement: Pan 540°/630°,tilt 270°,16 bit smooth and precise resolution for PAN/TILT movement
Scan position memory, auto reposition after unexpected movement
Prism:1 rotatable 3-face prism with speed adjustable and variable direction
Focus: 2 meter to infinite electronic focus
Iris: Electronic linear IRIS
Display: Blue background LCD display
Working temperature: 45° max ambient temperature
Protection: IP20, 55Db at 3 dB rating
Strobe:1-18 times/sec high speed electronic strobe
Shutter: LED shutter with variable speed
Dimmer:0-100% linearly adjustable(16-bit)
Housing: Composite plastic (IP20)
Color: Black
Dimension:230*300*437mm
Packing dimensions:410*370*480mm
N/G W:12/15kg
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| function | Pan | Pan 16bit | Tilt | Tilt 16bit | Color | Gobo1 | Gobo 1 rotation | Gobo2 Rotation | Strobe |
| 10 | 11 | 12 | 13 | 14 | 15 | 16 |
|
|
|
| dimmer | Focus | Prism | Iris | Pan/Tilt speed | Internal program | control |
|
|
|
