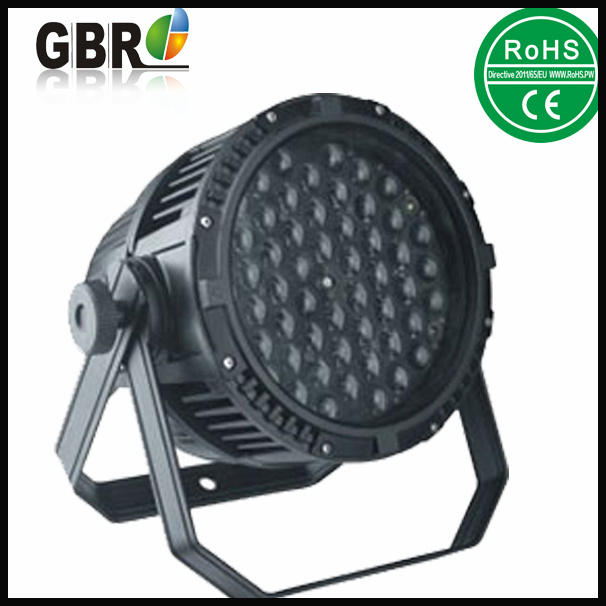

High Power IP65 Outdoor 54PCS*3W LED Wall Washer
SPECIFICATIONS
Color range: Red, green, blue, white four colors in different light output of continuous
Transformation Degrees, can produce more than 1600 million colors
LED color and quantity: 54PCS× 3W LED(Red: 12 Green: 18 Blue: 18 White: 6)
Beam divergence angle: 15° / 25° (optional)
Light Irradiation Distance: 20M
Light Source Life: 50000 hours
Control mode: DMX512 signal control
DMX channel mode selectable
The number of connections: One-time can be connected to 32
Rated voltage: AC100-240V AC or 12V/24V DC
LED current: 320mA ± 5% (1W) / 750mA ± 5% (3W)
Power consumption: 65W/165W
Protection class: IP65
Ambient temperature: -18degree-40degree 0 ~ +104 under the next)
Working temperature: 5 degree~ 30 degree (41 under the next degree+86)
Rotation angle: Vertical 120° The level of 15°
Appearance Size: 250× 340× 350mm
Shell Material: Die-casting aluminum alloy, surface electrophoresis treatment
Weight: 8.6kg
PRODUCT FEATURES
3 run modes
Outside control mode: DMX512 console control (8 DMX channel model); Master /slave control
Auto run model: Inlay program: Different kinds of faders and pulse effect.;
Strobe effect: Shift (slow? Fast ), mixing (strobe +grounding, strobe +faders)
Self-contained program: Strong, useful, interesting program function. Programming without console, faders, jump, strobe etc effect can be combined Arbitrarly; Program data can download among lightings. (master to slave).
Steady model: Blending all colors you want without console, and made it strobes.
Software cutting: Executing inlay program in STAG mode, when you do self-Compiled program, the light turned off based channel figures is 0(program still Runs ); Difference between"blackout"with others of"disk cutting": Mere useful For local light, wont deleted data on console.
ID code: In STAG mode, lightings with the same address code (maximum 66 Lightings )can be controlled separately(effect: Turn on lightings in turns, color Changing, strobe, faders) Non-linear dimming & linear dimming: 16 bit(60, 000 grade )
White balance: Difference white settlement in Difference color temperature
Color correction: A common saying is "software adjust current"
Screen protection: The screen woud be black if not operate in 30S, press any one Of buttons and loosen it exits screen protection.
Over-temperature auto protection: Can set temperature protect.
Secret protect the keyboard
GBR PROLIGHT(HK)GROUP Co., Ltd founded in 1999, located in GuangZhou of China. We are
The factory has 8000sqm, 100workers mainly produce LED flexible screen, LED moving head wash/spot, moving head beam, sky searchlight and so on. We have a group of professional R & D, production team and a complete after-sales service team to make sure the quality of our products and the best service of our company. All our products got CE, Rosh Certificate.
Our products have been sold all domestic market and exported to Europe, America, South America and Southeast Asia, Middle East and other countries. All customers consistent high praise and recognition. Our philosophy is "Quality First, Service First, Honesty first".
We are on the way to light up each corner of the world!
