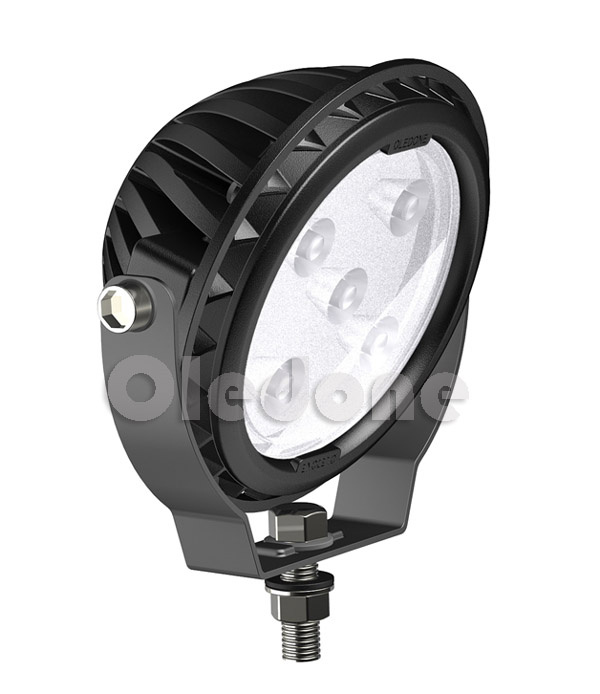

WD-5L18 This LED work lamp is specially designed for long time outdoor works under extremely demanding conditions, this light is super water-proof as IP rate 68, it can work under 1m water for over 24 hours.
Typical paragon of energy saving: Low power consumption: <18W can emit high brightness as over 1600 lumen, the whole diecast aluminum housing is professionally designed
To be a thermal dissipation expert, this enable the lamp can stand for long time continuous work.
High performance CREE LEDs ensures the long life time and superior illumination, no maintenance, no follow-on cost, no trouble, no worry _ this is a durable and reliable LED work lamp.
Parameters: WD-5L18
LED 5 High performance CREE LED bulbs, ultra bright and longer lifetime.
Voltage 9-32V DC input
Power Consumption around 18W
Light Pattern Wide flood
Lens Optically PMMA lens, light transmittance >93%, heat resistance +90° C
Housing Diecasting Aluminum housing
Bracket Stainless Steel Trunnion Bracket
Connection 2m wire terminates in Deutsch Connector.
IP Rating IP rate 68 (Protection against complete and continuous submersion in water)
Operating Temp. -40 to +85 ° C
Light Output more than 1650 lumen
Illuminating Distance Flood beam, a super bright wide area covering 50m long and 30m wide
Life Time Extremely long lifetime up to 50, 000 hrs
NET Weight 1.10 KG
Thermal Protected
Reverse Voltage Protected
Certificates CE, RoHS.
Environmentally Friendly Contains NO mercury, lead or other heavy metals.
Applications Forklifts, construction, mining, excavators, dumpers, agricultrue, forestry, utility vehicles, military, vessels, etc.
NOTE: WD-5L18 is using the superior Aluminum circuit board, NOT those cheap PC board.
Aluminum circuit board can provide a best protection to the components on the board (including LED bulbs), consequently make the whole light to be super reliable and stable. It can also against the heat while the light is working, thus the working system is very durable.
