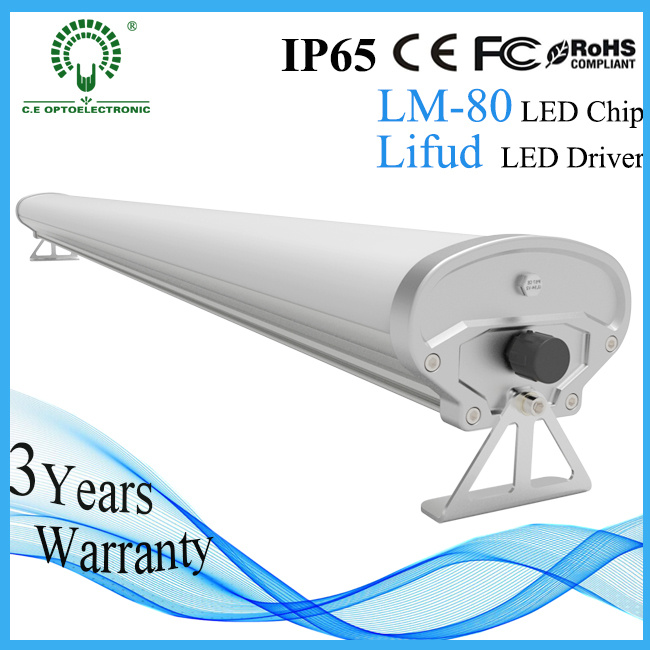

High power energy saving SMD2835 epistar 60w led tri-proof light fixture
Technical data:
| LED Tri-proof Light Parameters |
| Model No. | CE-TP60-30B | CE-TP120-40B | CE-TP120-50B | CE-TP150-60B |
| Power | 30W±0.05% | 40W±0.05% | 50W±0.05% | 60W±0.05% |
| Input Voltage | 220-240V AC |
| Power Factor | PF≥0.95 |
| LED Chip | Epistar SMD2835 0.2W(LM-80 listed) |
| LED Qty's | 168pcs | 312pcs | 312pcs | 408pcs |
| Luminous Flux | 2950-3150LM | 4000-4500LM | 4750-5100LM | 6000-6500LM |
| Luminous efficiency | 95-100lm/w |
| Color Temperature | W.W:2800-3200K N.W:4000-4500K C.W:6000-6500K |
| CRI | CRI>82Ra |
| Angle Beam Degree | Effective beam angle ≥220° |
| LED Driver | Lifud power supply |
| IP Rating | IP65&IK10 |
| Dimension | 600*112-75mm | 1200*112*75mm | 1200*112*75mm | 1500*112*75mm |
| Net.Weight | 1.6KG | 2.45KG | 2.55KG | 3.6KG |
| Warranty | 3 years warranty |
| Lifespan | 30000hrs |
| Certificate | CE RoHS |
Packing details:
Packing details |
| Model No. | Inside box size | PCS/CTN | N.W/PCS | G.W/CTN | Carton Size |
| CE-TP60-30B | 630*150*100mm | 6 | 1.5kg | 11.5kg | 650*330*320mm |
| CE-TP120-40/50B | 1230*150*100mm | 6 | 2.4kg | 18.3kg | 1250*330*320mm |
| CE-TP150-60B | 1530*150*100mm | 4 | 3.3kg | 17.6kg | 1550*330*220mm |
| Installation Accessoires: ceiling mouunted snaps,triangle mounting racks,screws and glue stick |
Advantages:
1.It adopted LM-80 listed Epistar SMD2835 LED Chip, high luminous efficiency up to 90-110lm/w.
2.TUV listed Lifud LED driver,Input 220-240V AC,constant current power supply makes it more stability and safety.
3.100% private mould, 6063 Aluminum material and PC milky cover , high light transmittance.
4.IP65&IK10,Corrosion-proof,Water-proof,Dust-proof,highly Impact-resistance,Durable.
5.Two types for your choice:Independent & Connection type,the maximum connections can be 1200watts.
6.Warranty 3 years for quality insurance,any quality issues,please contact with us for replace or repair freely.
7.Long average lifespan up to 30000Hrs.
8.Flexible installation method:Ceiling mounting&Rack-mounted.Easily and safety.
9.Approved by EMC/LVD/RoHS certificate,IES files is available for clients.
10.Application for steel plant,station,warehouse,parking-lot,basement,garage,tunnel and so on.
Application:
- Underground parking lot, metro station, Subway, station,tunnel,garage
- factory,steel workshop,warehouse, gas station,corridor,airport,school,hospital and so on
Our factory:
Professional Manufacturer of led lighting products,,Established in 2011,500 square meters workshop,with an office in France.
High technology equipment,experienced R&D team,Best after-sale service department.
Monthly Production Capacity over 10,000pcs.
Remarkable QC system,Make sure the Quality and stability.
All products with CE/RoHS certificated.
Main market : Europe,especially:France,Austria,Italy,Germany,UK and Netherlands..
Our Service:
Before-sale service
Inquiry will be promptly replied within 12 hours.
Experienced staffs will answer your questions professionally.
OEM&ODM welcome.
Strong production capacity and experienced technical R&D team will support you all-around.
Free design and print label.
After-sale service
All products with an average lifespan 30000-50000hrs and 3-5 years warranty .
Any defective products within warranty will get maintenance or replacement unconditionally.
Protection of your sales area,ideas of design and all your private information
RFQ:
Q:What 's kind of led lighting products can C.E Opto supply?
A:- LED Tri-proof light(Core product)LED Flood light; LED Panel light;LED High bay light;
Q:Which led driver and led chip adopted for those led lights?
A:LED Driver:mainly Meanwell,MOSO,Lifud power supply,also choose other CE TUV qualified R&D led driver with high power factor for our products.Depends on customer's request.
LED Chip:USA Original BRIDGELUX 45mil led chip,Samsung smd5630 led chip,,LM-80 approved Epistar smd2835 LED chips, with high luminous and high CRI over 82Ra.
Q: Can C.E Optoelectronic accept OEM&ODM order?
A:We are an experienced factory of led lighting products,OEM&ODM acceptable.
Q:Any quality guarantees for products?
A:Absolutely, we provided 3 to 5 years warranty for different kinds of products. During this period, Any defective item caused by quality issues will be our responsibility,please kindly take pictures or videos to our engineer team for inspecting,Once it been verified, we would replace new items with the transportation charged being paid by us. Also we have an office in France,if possible, you can ship back the defective parts to our France office for detection.and the new parts will send out from France.
Q:What certificates does C.E Opto get?
A:CE(EMC/LVD),RoHS certificates, qualified for Europe market.
Q:How to BUY?
A:Please click"Send",send us inquiry or email to us about the item you need, we will get back to you about the price list and specifications directly . Also you can contact with our sales team by make a call at 86-755-29016505 or 13302457162 .
We promise you will get our professional reply within 24 hours.For the details please refer to "Contact Us".
Shenzhen C. E Optoelectronic Co., Ltd is committed to the cause of global low-carbon and environmental protection. It is a comprehensive LED lighting enterprise, integrating R&D, manufacture, marketing and service. Based on advanced management mode, strong R&D capability and abundant resources from all over the world, we elaborately set up an international platform for LED industry. Since the company was founded, we have adhered to the philosophy of "quality first, customers first" which encourages us to innovate and meet the needs of the world market.
At present, we are mainly in the line of LED flood light, LED high bay light, LED panel light and LED tri-proof light, which are widely used in outdoor and indoor lighting. Boasting of 3-5years quality assurance, all of our products have been approved by CE FCC RoHS and so on.
In addition, we have our own experienced R&D team, strict quality inspection and control system and perfect producing, inspecting, testing equipment, such as integrating spheres, dynamometer, multiplex temperature tester, withstand voltage tester and oscilloscope. We cooperate with internationally accepted LED brands, like Nichia chip in Japan, Bridgelux chip in the United States and Meanwell driver in Taiwan. Quality is our culture. With the unique R&D capability, excellent quality and professional after-sale service, we have attained the recognition of the world. Currently, we have established strategic partnership with Germany, Austria, the United States, Japan, Australia, Middle East, HongKong, Taiwan and more than 80 countries and districts. Moreover, we also have built up our subsidiary in France.
Quality First, Customers First. We will do our utmost to serve you.
