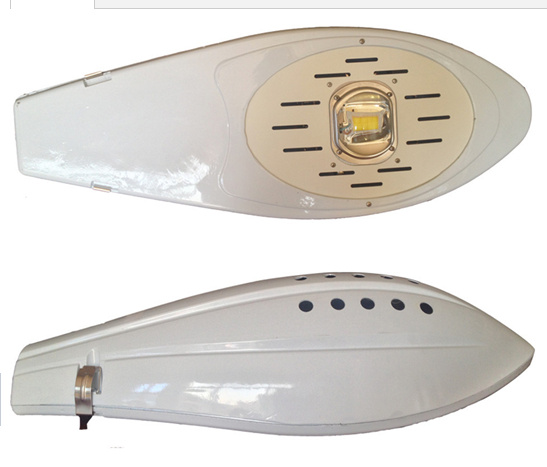

？COB LED Street lamp
？？？？？？？？？？
Products Features:
1. Energy saving, environmental;
2. low price and good quality;
3 Fashion design and different types;
4. Easy to install and use;
5.No risk of mercury emission, environmental protection;
？
Technical Features:
？
1.Adopt to the module of MHD-60 with independent research and development ,luminous efficacy could reach at 100lm/W;
2. Adopt to the lens of point,cambered surface with the newest independent research and development.It's ultrathin,no glare,high reflectivity.
3. Lamp shell surface spraying radiation protective paint,which makes the lights antioxidant and salt-resistant.
4. Material is carbon aluminum alloy,which makes the lights high heat dissipation.
5.Inside the lights adopt to the composite high thermal module with light source, which increase lights heat conduction and dissipation .
6.Adopt to the constant current high power transform supply, PEC could reach more than 90%.
？？？？？？？？？？
？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？？
？
|
Model |
Wattage |
Input Voltage |
Power Factor |
CCT |
Luminous Flux |
CRI |
Life |
IPGrade |
|
BPZ 220/80 |
80W |
AC100-240V
50-60Hz |
≥0.94 |
3300K~6500K |
8000lm |
Ra≥70 |
≥30000h |
IP65 |
|
BPZ 220/100 |
100W |
AC100-240V
50-60Hz |
≥0.94 |
3300K~6500K |
10000lm |
Ra≥70 |
≥30000h |
IP65 |
|
BPZ 220/120 |
120W |
AC100-240V 50-60Hz |
≥0.94 |
3300K~6500K |
12000lm |
Ra≥70 |
≥30000h |
IP65 |
|
BPZ 220/150 |
150W |
AC100-240V 50-60Hz |
≥0.94 |
3300K~6500K |
15000lm |
Ra≥70 |
≥30000h |
IP65 |
Nanjing China Electronics Panda Lighting Co., Ltd.Is a new enterprise founded in DEC, 2008.It's a recombination of lighting divisions from Nanjing Huadong Electronics Information Technology Co., Ltd.And Nanjing Sanle Group Co., Ltd.The company is located in 5# Guangming Road, Economic Development zone, Pukou District, Nanjing, in the industrial park of Nanjing CEC Panda Group.And the registered capital is RMB100, 000, 000.
The company's products have four major categories of more than 130 varieties of six series, which includes electric lighting sources, lighting devices, luminaires and lighting engineering.Among which, 38 gained technology patents.Nowadays, the company owes two well-known brands which are "Dian Gong" and "Sanle".
"Dian Gong" lighting built the first China-made incandescent lamp and fluorescent lamp all over the country.It has independent intellectual property rights in the first and the second generations of lighting sources.The trademark of "Dian Gong" is well-known in China and it is the lighting industry's first "China well-known Trademark" "Sanle" lighting built the first China-made high-pressure sodium lamp in 1979.During past years, with stringent military technology, advanced design standards, comprehensive supporting products, good construction quality and excellent after-sales service, "Sanle" takes part in different competitions actively in domestic and abroad, and won the leading position for high density discharge lamps in China.The trademark of "Sanle" is quite famous in Jiangsu Province and it has reputation in domestic road lighting industry.
Rely on the flat of Nanjing CEC Panda Group, a central enterprise of China, with high performance products branded with "Dian Gong" and "Sanle", Nanjing China Electronics Panda Lighting Co., Ltd.Will create the first-class of lighting enterprise worldwide.
