High Power 3w Led Ceiling Light(YC-TH-3)
Technical parameters
Fundamental
1. Model: YC-TH-3
2, Size: 85mm*45mm cut 71mm
3. Material: Aluminum
4. Operating Temperature: -20-55º C
5. Life time: >35000hours
Electronic
1. Operating voltage: AC110-240V
2. Power: 3W
3. Power factor: 0.90
Photometric
1. Type of -house: High power led
2. Nos. Of lamp-house: 3PCS
3. Luminous flux: 260lm
4. Luminous efficacy: 90lm/w
5. Beam angle: 10° 15° 30° 45° 60°
Chromaticity
1. Colors of lamp-house: WW/DW/CW
2. Ra: 75
Adantages
1. One for one driver supply
2. Higher brightness
3. Standard: CE, RoHS.
4. Warranty: 3 years

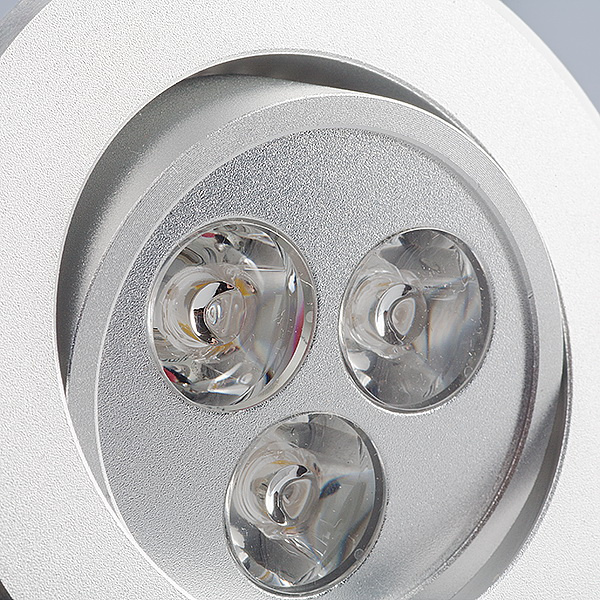

Relative picture of High Power 3w Led Ceiling Light(YC-TH-3)
Use of the products
Hotels, home, restaurant, kitchen, hallway lighting and other places
|
Model |
Size of housing
(mm) |
Cut
hole
(mm) |
Led
Watt
[Typ] |
Led Type
(pcs) |
LPW
(lm/w) |
Beam
angle
(°) |
CRI
(Typ) |
CCT
(k) |
Input Vol
(V/AC) |
PFC
(Typ) |
Working temperature
(Typ. ºC ) |
Material |
|
> High power led series with Bridgelux led engine |
|
YC-TH-3 |
Φ85*H45 |
Φ71 |
3x1w |
3pc HP |
90lm/w |
10°
15°
30°
45°
60° |
73Ra |
3000K
4000K
6000K |
110-240V
50-60Hz |
0.9 |
48.5 ºC /
10-95% RH |
6063 extruded Alu |
|
YC-TH-9 |
Φ85*H70 |
Φ71 |
3x3w |
3pc HP |
|
YC-TH-5 |
Φ106*H70 |
Φ92 |
5x1w |
5pc HP |
|
YC-TH-15 |
Φ106*H120 |
Φ92 |
5x3w |
5pc HP |
|
YC-TH-7 |
Φ106*H70 |
Φ92 |
7x1w |
7pc HP |
|
YC-TH-21 |
Φ106*H120 |
Φ92 |
7x3w |
7pc HP |
|
YC-TH-9B |
Φ145*H70 |
Φ118 |
9x1w |
9pc HP |
|
YC-TH-12 |
Φ143*H68 |
Φ118 |
12x1w |
12pc HP |
|
YC-TH-15B |
Φ143*H100 |
Φ122 |
15x1w |
15pc HP |
|
BN-D1801 |
Φ160*H120 |
Φ140±5 |
18x1w |
18pc HP |
