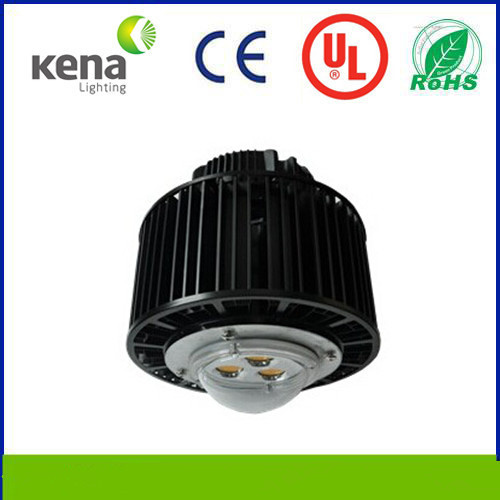

Led High Bay Light 150W for industrial luminaire
General Description
GKNC series LED high bay light is the application of new types of phase-change heat sinks ,CITIZEN
LED and MEAN WELL HBG driver. Compared with the traditional industrial and mining lamp, LED high
bay light has the following advantages: energy saving, low carbon and long life, good color rendering,
response speed quickly.
Features
1.New phase-change heat sinks rapidly reduce the temperature of the LED chips.
2.CITIZEN COB LED(LM80) , high luminous efficiency, high color rendering index.
3.New external driver, easy to heat dissipation, improve driver service life..
4.Light health, the light does not contain UV and IR, do not produce the ray radiation.
5.Green pollution-free, no lead, mercury or other elements of environmental pollution.
6.High performance constant current driver, no stroboscopic, be helpful for protecting eyesight.
7.Prevent water, clear fog, avoid liquid condensation, waterproof class reached IP65.
Applications
Factory, gymnasium, lighting decoration, squares, airports, warehouse, shopping mall , ect.
Technical Parameters
Power parameters
| Input Voltage/Frequency | 90-295VAC/47-63Hz |
| Input Current | 0.87 A(230VAC) |
| Output Voltage | 60V |
| Output Current | 0~4A |
| Power Efficiency | >93% |
| Power Factor | PF>0.98/±115VAC PF>0.95/230VAC PF>0.93/277VAC |
Lighting parameters
| LED Chips Quantity | 4 PCS(CITIZEN COB LED ) |
| LED Consumption | 180 |
| System Consumption | 200±5W |
| LED Luminous Efficiency | >140Lm/W |
| Lamp's Initial Flux | >28000Lm |
| Color Temperature | 4000K,5000K,6500K |
| Lamp's Luminous Efficiency | ≥120Lm /W |
| Lumen Maintenance | 70%(50,000Hrs) |
| Color Rendering Index | Ra≥80 |
| Light Design | LED+ reflectors with twice light distribution |
| View Angle | 45°,90°,120°at the beam angle 50% |
| Driver Working Temperature | -40ºC ~ +60ºC |
| Storage Temperature | -40ºC ~ +70ºC |
| IP Rating | IP65 |
| Life-span | >=50,000Hrs(Note4) |
| Materials | Aluminum |
| The color of the lamp shell | Black/Sliver |
| Mounting | Lifting type |
Note
1.If the lamp outer cable or cord is damaged, must be qualified personnel to repair.
2.That the lamps is abnormal , must cut off the power input.
3.Power input end do some lightning protection measures, and guarantee the input voltage stability.
4.Please mount the lamp in a dry, ventilation, clean environment, and regular cleaning and maintenance.
5.Inside Lamps have high voltage parts,do not disassemble, so as to avoid the electric shock.
After service
All of our product's warranty period is 5 years for the constant current power and LED light source
guaranteed usable 5 years. Besides our warranty is based on the right storage, installing ,using and
maintenance. However, the damages resulted from wrong installing and rule-breaking operations don't
belong to the warranty range. As for the quality problem during the warranty period, we would like to
maintain and change. While we will charge for the material and labor cost over than the warranty
period.
