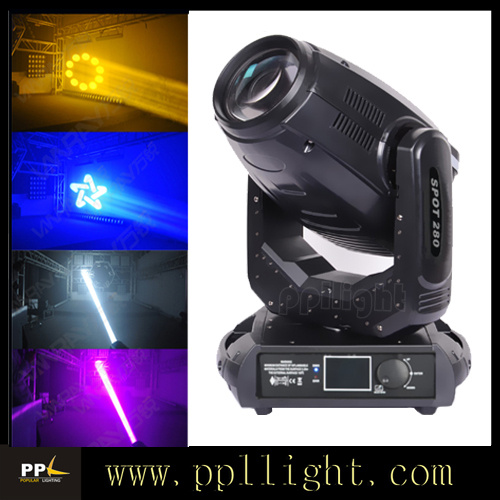

High Power 280W LED Moving Head Spot Beam Light

Feature:
1.fast moving head,and quick response,accurate positioning.
2.powerful beam effect and beautiful spot effect.
3. bring more fun and colorful patterns. "Net" pattern prism in aperture reaches the  maximum brightness,with minimal loss to filling stage
4.With 2 prism effect, the effect of rotating prism is very useful,A prism broader the angle of the light.

Technical Parameter :
Power Input: 100-240V,50/60Hz
Power Dissipation:420W
Magnetic ballast and AC/DC power supply
lamp: 280W
Color temperature: 8000K
Channel mode:  16 / 24  DMX512 Channel
Pan scan:540°(16bit) Electric correction
Tilt scan:270° (16bit) Electric correction
Amazing dot matix, four tact switch, 180° turning show
Color wheel: one color wheel, 13 kinds of color chips in one color wheel
Static Gobo: 10 gobos
Rotation Gobo:9 gobos
Effect Wheel:  one Rotation eight prism,one Rotation six prism effect move , frost
0-100% mechanical dimming, mechanical dimming and free dimming available.
strobe macro control available.
Lens optical system achanical focus .
Beam angle:3.8°-45°
IP level :IP20
Over heat protection
Packing Size: 523x337x570mm
Net weight:20 KG

video link:http://v.youku.com/v_show/id_XNzM0MzI2ODky.html

Channel chart:

channel	1	2	3	4	5	6	7	8	9	10	11
function	X	X fine	Y	Y  Fine	X/Y speed	power/macro	gobo	Gobo wheel fine	speed	Static gobo	Rotation gobo
	12	13	14	15	16	17	18	19	20	21	22
	Gobo rotation	Gobo wheel fine	prism	Prism  rotation	frost	zoom	Zoom  fine	focus	Focus fine	empty	shutter
	23	24
	dimmer	Dimmer fine


Trade terms:

Price Term	exw price
Payment terms	T/T,Paypal,Western union
Shipping Way	1.By express(DHL,Fedex,Ups,EMS)
	2.By air
	3.By sea
Sample time	1-3 workdays
Production time	general 5-10 days,depend on your order quantity
Packing	1.Standard Carton
	2.Flight case
Warranty	1 years
After-Sell server	1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing.
	2.Then we will guide you how to fix it and provide free accessories if needed.
	3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge.

Company profile:
   Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
   With strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
   Hope we can grow together on the coming days.

Why choose our products?
   It's one of our best selling item. Using top quality light with very favourable price. Save money! Stable quality. Once you check ourproduct, you will love them. Good quality for each parts. Even package.
   So, no need to worry about quality. Our quality won't let you down. As we never make low quality products. Welocme company who care about Quality!
   Keep aways from rubbish products! Trust us! Choose us!

Welcome to contact us:
Name:Beryl Deng
Tel:+86-37416696
Cellphone:+86-15818873104
know more about us from our website:www.ppllight.com
