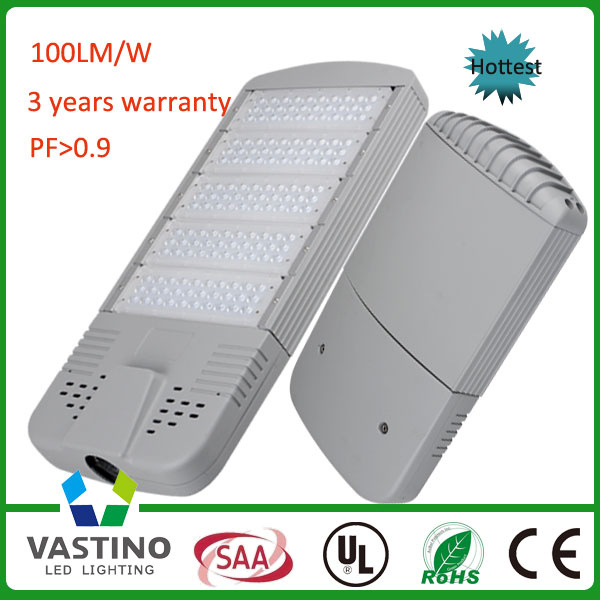

HIGH LUX 100W LED STREET LIGHT
Product Model:
| Power | Color Temperature | Model |
| 80W | 2700-3000K
4000-4500K
6000-6500K | YSST-8028-001 |
| 100W | YSST-10038-001 |
| 120W | YSST-12048-001 |
| 150W | YSST-15048-001 |
| 180W | YSST-18058-001 |
| 200W | YSST-20068-001 |
Product description and application:
Efficient SMD technology:imported OSRAM chip package (SMD3030 series), long life, low light failure
Efficient cooling material technology:High thermal cooling aluminum radiator sawtooth structure, larger cooling area, cooling faster.
Low thermal resistance packaging technology:LED light source directly encapsulated to cooling integrated module new LED light source packaging technology,silver with ceramic packaging technology and liquid metal solid crystal packaging technology.
Efficient uniform temperature cooling technology:Modular cooling, independently of each other, if a single module corruption does not affect use.
Radiating shell assembly technology:achieved a plurality of modules assembled together Structure ,flexible replace the required power of traditional lighting .
Through the combination by LED light source module and the heat sink,the main components of the LED lamps with a standardized, universal key technology.
With high efficiency,high bright,long lifespan and good energy saving effect;Mainly used in fast-track, main roads, secondary roads, factory road lighting, public places lighting, garden lighting and other places.
Product Feature:
Efficiency:Used the Meanwell driver,high efficiency,save 60%-80% electricity bill compared with the traditional lamp;
Led:Use Osram SMD3030 Led source,Cri80,no light pollution,with with high transmittance PC material lens.
Light failure:Single module 48pcs SMD 3030, low current design, lowered LED chip temperature down and extend the life of the light source;
Radiator:a big touch area for Lamps radiator blade structure with air,Accelerate the natural convection of air,Good radiating result.
Light Distribution:rectangular and asymmetric light distribution design Solve the main road LED light distribution puzzles.
Product Specifications
1.Basic parameter
| Model | Led | Size
(mm) | N.W(kg) | Shell color | Material | IP Grade | Adjust | Installation size
(mm) |
| YSST-8028-001 | 96PCS*1W(2 model) | W315*L500*H95 | 6.6 | Grey | ADC12+PMMA | IP65 | 113° | D60 |
| YSST-10038-001 | 144PCS*1W(3 model) | W315*L500*H95 | 8.3 |
| YSST-12048-001 | 144PCS*1W(3 model) | W315*L500*H95 | 8.3 |
| YSST-15048-001 | 192PCS*1W(4 model) | W315*L615*H95 | 10.1 |
| YSST-18058-001 | 192PCS*1W(4 model) | W315*L615*H95 | 10.1 |
| YSST-20068-001 | 240PCS*1W(5 model) | W315*L700*H95 | 11.7 |
2.Electrical parameters
| Model | Power(W) | Input Voltage(V) | efficiency(%) | Power Factor |
| YSST-8028-001 | 80W | AC100-240V 50-60Hz | >90 | >0.95 |
| YSST-10038-001 | 100W |
| YSST-12048-001 | 120W |
| YSST-15048-001 | 150W |
| YSST-18058-001 | 180W |
| YSST-20068-001 | 200W |
3.Optical parameters
| Model | CCT(K) | Lumen(lm/W) | Illuminance
(6M/8M/10M/12M) | Beam angle | CRI |
| YSST-8028-001 | 2700-6500K | 110±10% | 55/30/20/14 Lux | 90*135° | >80 |
| YSST-10038-001 | 110±10% | 62/35/23/16 Lux |
| YSST-12048-001 | 110±10% | 70/39/26/18 Lux |
| YSST-15048-001 | 110±10% | 92/48/32/20 Lux |
| YSST-18058-001 | 110±10% | 104/55/37/24 Lux |
| YSST-20068-001 | 110±10% | 116/59/40/26 Lux |
Storage and usage environment
| Storage temperature | -20ºC~+65ºC |
| Operating temperature | -20ºC~+45ºC(25ºC best) |
| Ambient humidity | 20-90%RH |
Life and warranty
| Lifespan | 50000HRS(Lumen maintain70%) |
| Warranty | 3 years |
Packing Information
Model | Packing material | Outer size
L*W*H(mm) | CTN/PCS
(PCS) | Gross weight
(KG) |
| YSST-8028-001 | Outer box
K=K | L578*W390*H146 | 1 | ±7% |
| YSST-10038-001 | L673*W390*H146 | ±9% |
| YSST-12048-001 | L678*W390*H146 | ±9% |
| YSST-15048-001 | L778*W390*H146 | ±11% |
| YSST-18058-001 | L863*W390*H146 | ±11% |
| YSST-20068-001 | L963*W390*H146 | ±12% |
