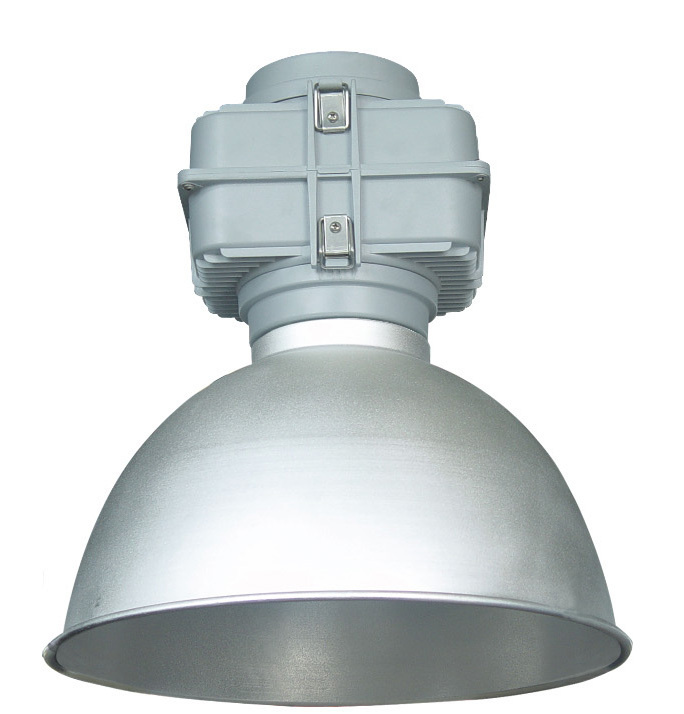

LED high bay 120W (BLP-HBL120W01)
The Key Features of 120W LED high bay light are:
1. Original American Bridgelux LED, Meanwell Driver from Taiwan
2. Light efficiency 80lm/W, Energy saving rate 85%
3. 3 Years warranty
Characteristics of LED high bay light:
1. More than 70% energy saving
2. 1 LED chip design, convenient for maintenance
3. Original American Bridgelux LED or CREE Lumileds LED used
4. Universal input voltage: AC 85-265V
5. High quality power supply, reliable and stable, automatically reduce current against overheating temperature
6. Unique optical design & rectangular beam, suitable for indoor illumination
Please NOW feel free to contact us for customized LED high bay 120W.
|
Model No. |
120W LED high bay light |
|
Replacement |
400W HPS |
|
LED Light Source |
1 × 120W Bridgelux LED |
|
LED Luminous Efficiency |
90~100 lm/w |
|
Lamp Total Power |
126W |
|
Power Efficiency |
> 85% |
|
Lamp Total Luminous Flux |
> 10800lm |
|
Lamp Luminous Efficiency |
> 85 lm/W |
|
Average lllumination and Effective Area |
6M Height |
≥ 90LUX |
|
8M Height |
≥ 50LUX |
|
10M Height |
≥ 32LUX |
|
Color Rendering Index(CRI) |
Ra> 75 |
|
Color Temperature(CCT) |
Cool white: 5000-6500K |
|
Pure white: 4000-5000K |
|
Warm white: 2700-3500K |
|
Beam Angle |
Horizontal Axis: 120° /140° |
|
Vertical Axis: 120° |
|
Light Distribution Curve(Beam Pattern) |
Asymmetric (Bat Wing)/Rectangular Beam |
|
Input Voltage |
85-300V AC; 12V DC/ 24V DC |
|
Frequency Range |
50-60Hz |
|
Power Factor(PF) |
> 0.98 |
|
Total Harmonic Distortion(THD) |
< 20% |
|
Storage Temperature |
-40° C--+80° C |
|
Working Environment |
-40° C--+50° C; 10%-95%RH |
|
Junction Temperature(Tj) |
60° C± 10%(ta=25° C) |
|
Light Body and Lampshade Material |
Aluminum and Glass |
|
Working Lifetime |
> 50, 000hrs |
|
IP Rating |
IP65 |
|
Net Weight |
5.7kg |
|
Gross Weight |
6.5kg |
|
Product Size (mm) |
420*596mm |
|
Package Size(mm) |
Body: 53*39*27cm Shell: 40*40*25cm (1PC |
