High Efficiency ABS LED Panel Light
| Price: |
US $ 1.06-3.58/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Paypal,Western Union |
High Efficiency ABS LED Panel Light
Feature:
1. This series is Sanling lightingproduct which has gained a copyright from government,
beautiful and clean appearance,easy installation
2. High light and high luminous efficiency SMD2835 LED as light source
3. High quality light guide plate and diffusion plate,ensure the light uniform and soft

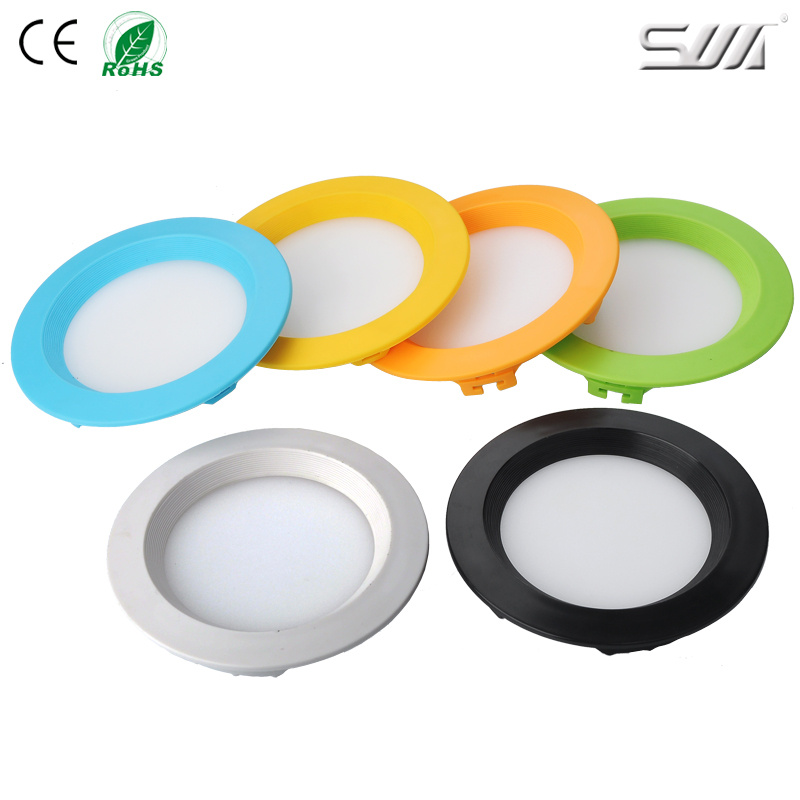

4. Made of ABS material without lead and mercury,environmental friendly,nine kinds of color is available:White,Black,Green,Blue,Yellow,Orange,Pink,Purple and Silvery Gray
5. Adopt outside power supply with wide input voltage,constant current output,no flicker,no glare,no radiation
6. Low power consumption, high power efficiency,can save energy more 80% than traditional fluorescent lights
7. CE, RoHS approved,safe and reliable
8. Long life time, up to 50,000 hours

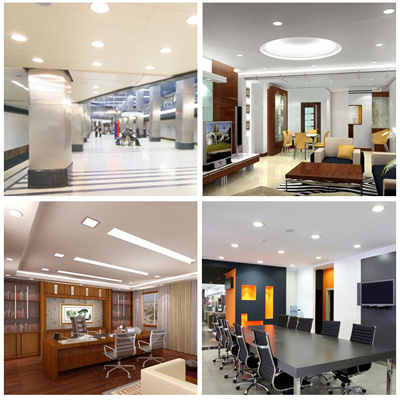

Applications:
1. Commercial and exhibition locations
2. Hotel,shopping mall
3. Conference/meeting room
4. office, residence,etc

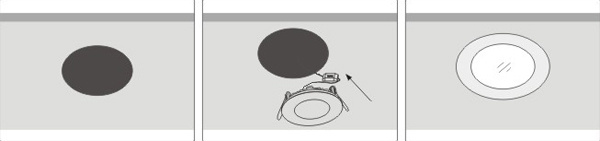

Installation:
1. Cut a hole on the ceiling where the panel light will be installed
2. Install the LED driver and imbed the panel light in the hole
3. Connect the power supply and start
Packaging and Delivery:
1. Packing Detail:Standard Export Packing or Customized Packing
2. Delivery Time: 5-7 days for sample order, 20 days for container order| Model No. | SL-ABS-3W | SL-ABS-6W | SL-ABS-12W | SL-ABS-18W |
| Power | 3w | 6w | 12w | 18w |
| Input voltage | AC85-265V |
| Working frequency | 50-60HZ |

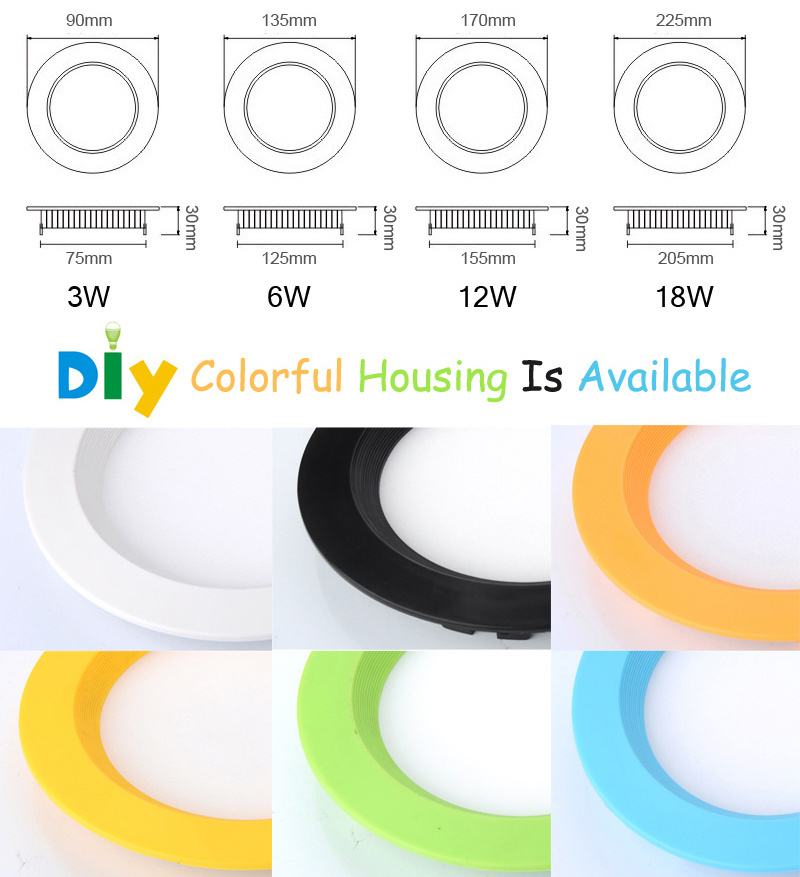

| Size | 90*30mm | 135*30mm | 170*30mm | 225*30mm |
| Cutout | 75mm | 125mm | 155mm | 205mm |
| LED type | SMD2835 |
| LED qty. | 15PCS | 30PCS | 60PCS | 90PCS |
| IP grade | IP20 |
| Luminous | 220lm | 450lm | 900lm | 1350lm |
| Luminous efficiency | 70-80lm/w | 70-80lm/w | 70-80lm/w | 70-80lm/w |
Color
Temperature | Warm white:3000-3500K
Nature white:4000-4500K
White:6000-6500K |
| CRI | Ra:70-80 |
| Power factor | >0.9 |
| Working temperature | -20 ~ +60centigrade |
| Lifespan | > 50,000hours |
| Warranty | 2-3 years |
| Prod Model: |
SL-ABS-3W/6W/12W/18W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
3W/6W/12W/18W |
| Size: |
90*30mm/135*30mm/170*30mm/225*30mm |
| Cutout: |
75mm/125mm/155mm/205mm |
| LED: |
SMD2835 |
| LED Qty.: |
15PCS/30PCS/60PCS/90PCS |
| Luminous Flux: |
220lm/450lm/900lm/1350lm |
| Power Factor: |
>0.9 |
| Ra: |
70-80 |
| Color Temperature: |
Ww3000-3500k,Nw4000-45000k,W6000-6500k |
| Emitting Position: |
Side Emitting |
| Light Source: |
LED |
| Dimmable: |
Without Dimmable |
| Appearance: |
Round |
| Type: |
Embedded |
| Certification: |
CCC |
| Voltage: |
85V-265V |
| Housing Material: |
ABS |
| Emitting Color: |
Warm White,Natural White,White |
| Base Material: |
Aluminum |
| Beam Angle: |
120° |
