High Efficience 1350-1500lm COB LED Down Lights

2015 new design hot sale high efficience 1350-1500lm COB LED down lights

Features:

COB
RA>80
Constant current circuit design, wide voltage range(100V~240V)
High brightness around 85lm/W
High Power Factor, reaching 0.93
NO UV infrared and other radiation , shock vibration resistant
Patented thermal management design, self-heat-dissipation, free from radiator.
Long lifespan of this LED down light is around 50000hours.
No flicker, low power consumption, quick start, no ultraviolet ray and infrared ray.
Operating temperatureL-20-+50degrees
Easy installation, maintenance free
.

Specification  2*6wSquare LED Downlight:

LED downlight
CREE COB  RA>80
CE ROHS approval, 60degree beam angle
3 years warranty


Applications:


1.Recessed lighting, shelf lighting, ceiling/wall coves
2.Cabinet and under counter lighting, office work station
3.Back lighting, step lighting, light boxes
4.Merchandising, exhibition stands, and panels

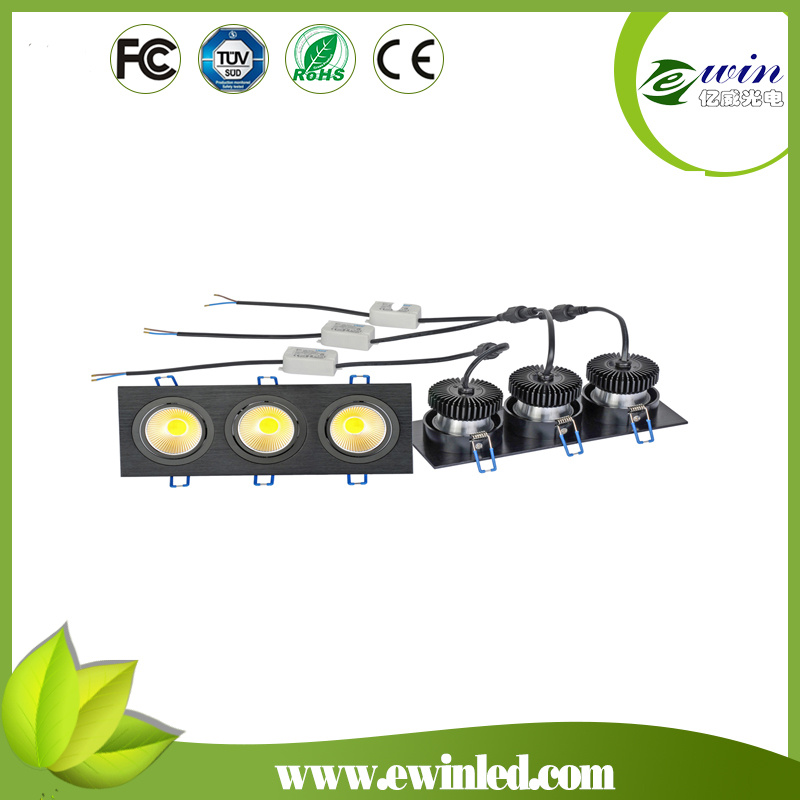

3*6W square LED Downlight

Products Features Square LED Downlight:
(1)LED Power: 18W.
(2)Lamp Consumption:22.5W.
(3)Output: 1500-2520lm(Ra80), 1450-2000lm(Ra90).
(4)CRI:> 80(max 95)
(5)SDCM:<4.
(6)CCT:2000-10000k available.
(7)Dimension:255*92*70mm .
(8)Cutout: 235*72mm.
(9)Beam Angle:30°/40°/50°
(10)Input voltage:100-277vAC/180-270vAC, 50-60hz
(11)Color of housing: white, black, silver.
(12)Dimmable available: Triac/0-10v/DALI/Wi-Fi.
(13)Life span: 50,000+hrs.
(14)Certificate:CE/RoHS/SASO
(15)Warranty: 5 years.

Versions	Part No.	Color	CCT	Output(Ra80)	Output(Ra90)
Super brightness	EW-SCL-3x6W-WW	Warm White	2900-3200k	2000-2200lm	1740-1800lm
	EW-SCL-3x6W-NW	Natural White	3900-4200k	2200-2400lm	1800-1900lm
	EW-SCL-3x6W-CW	Cool White	5900-6200k	2400-2520lm	1900-2000lm
Normal	EW-NCL3x6W-WW	Warm White	2900-3200k	1600-1700lm	990-1050lm
	EW-NCL3x6W-NW	Natural White	3900-4200k	1700-1800lm	1500-1600lm
	EW-NCL3x6W-CW	Cool White	5900-6200k	1800-1900lm	1650-1750lm
Economy	EW-ECL3x6W-WW	Warm White	2900-3200k	1500-1600lm	1750-1000lm
	EW-ECL3x6W-NW	Natural White	3900-4200k	1600-1700lm	1000-1050lm
	EW-ECL3x6W-CW	Cool White	5900-6200k	1700-1800lm	1050-1100lm

Packaging & Delivery Square LED Downlight

Packaging Detail:	36pcs/carton. carton size:41*31*36cm
Delivery Detail:	5-10 working days

Mainly Characteristics of LED Light

1, Energy & Power SavingCompare to the traditional incandescent light it can save more than 90% energy under the same

brightness.

2, Ultra-long Life Its using life is about 5-10 times of traditional incandescent light under normal usage conditions.

3, Ultra-low FeverSolid cold light source, epoxy resin encapsulation and little heating tube.

4, Healthy and EnvironmentalNo glare, no UV, no jumpy frequency, no mercury and no lead inside. It won't harm human health

   and the environment.

5, High CRIGood reducibility, clear visual effects and keep the objects undistorted.

6, Not Easily DamagedMade of aero aluminum material to keep it safe from long-distance transportation.


Service Down Lights:
       1. Your inquiry related to our products or prices will be replied in 24hours.
         2. Well-trained and experienced staffs to answer all your enquires influent English.
         3. OEM & ODM are welcomed, OEM brand is available.
         4. Distributor ship is offered for your unique desigh and some our current models.
         5. Protection of your sales area, ideas of design and all your private information.

About us:
      We are LED lighting factory and have 10 years experience of development and
         production, our main product are: LED Back-lit panel lights, LED Tube lights, LED downlight
       LED Emergency driver,LED Tri-proof light,LED Ceiling light etc.
