P12 outdoor full color LED display
2011 Asian LED supplier
High brightness and efficient heat release
Super color uniformity and no mosaic
IP65 protection
1. LED Display,
2. Pitch: 12mm
3. Pixel configuration: 2R, 1G, 1B,
4. Got ISO9001: 2000, CE, RoHS certificate.
Specifications
Led display module
1)competitive price
2)unique design structure
3)rich engineering experience
4)CE and RoHS certifications

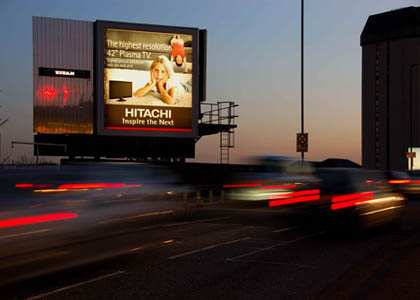

High Definition P12 Outdoor Full Color LED Display
1. Weather resistance:
IP65 rating delivers best waterproof effect that ensures our product's stable broadcasting in harshest weather condition.
2. World-class image quality:
Strict system control and pixel to pixel correction make the image smooth and uniformity.
3. System flexibility:
Able to show a variety of content of video, animation, graphic and so on.
4. Service facility:
Modular design makes module individual and can fix easily without affecting others.
|
P12 (Pitch 12mm outdoor full color-1/2 scan) |
|
Colour temperature |
5000~9000 k |
|
Pixel structure |
φ 3 oval lamp, 2R1G1B |
|
Pixel pitch |
12mm |
|
Pixel density |
6, 944 dots/m 2 |
|
Luminance |
7, 000cd/m 2 |
|
Module dimension |
192mm(W) * 192mm(H) |
|
Module resolution |
16 pixel(W) * 16 pixelmm(H) |
|
Cabinet dimension |
1152 * 768mm |
|
Cabinet resolution |
96 * 64 |
|
Cabinet area |
0.885 sq. meter |
|
Optimal visual distance |
> 12m |
|
Visual angel |
110 / 50 degree (H/V) |
|
Max power consumption |
≤ 1100w / m 2 |
|
Average power consumption |
≤ 700w / m 2 |
|
Brightness adjustment |
Adjust according to the enviroment brightness software (0%-100%adjustable) |
|
Gray scale |
point by point 4096 gray gradelevels of each color, 16 bits γ correction avilable |
|
Drive mode |
1/2 dynamic scan, constant current |
|
Frame frequency |
≥ 60HZ |
|
Refresh frequency |
≥ 480HZ |
|
Input voltage |
AC 90~260 volts |
|
Operation temperature |
-40° C~ +65° C |
|
Operation humidity |
10%~90% |
|
Input signal |
S-video, RF, RGB, Yuv, YC, composite^ |
|
Control system |
DVI card + master control card + receiver card |
|
MTBF |
> 5000 hrs |
|
Life span (50% brightness) |
100, 000 hrs |
|
Malfunction dot rate |
1/10000 |
|
Ingress protection rate (Front/ rear) |
IP65 / IP54 |
|
Cabinet material |
Epoxy paint coated, aluminum / iron |
|
Application: |
Rental / Permanent installation available |
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
