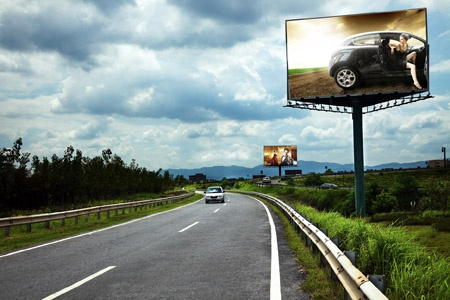

P10mm RGB outdoor LED displays can be used in all outdoor conditions. We use 1R1G1B technology to accomplish superior visual performance. With its highly Resolution and great performance. It is considered to be the most reliable and Cost-effective LED screen in the mareket. Welcome to ask!
No.
|
Specifications
|
|
1.
|
LED chip
|
Taiwan/Silan/Cree/Cree Cotco
|
2.
|
Physical Pixel Pitch
|
10mm
|
3.
|
Physical Pixel Density
|
10000dots/m 2
|
4.
|
Pixel composition
|
1Red, 1Green,1Blue
|
5.
|
Moduel Size
|
160mm*160mm
|
6.
|
Moduel resolution
|
32dots*16dots
|
7.
|
Cabinet thickness
|
< 170 mm
|
8.
|
Bracket of cabinet
|
Easy to install onto the LED cabinet and unistall .
|
9.
|
Brightness
|
≥ 800nits
|
10.
|
Colors
|
16.7million
|
11.
|
Viewing angle
|
Horizontal ≥120°, Vertical : ≥ 120°
|
12.
|
Viewing distance
|
8m -150m
|
13.
|
Soft Rubber Mask
|
To protect player and LED display itself .
|
14.
|
Scan frequency
|
≥600 Hz
There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct
|
15.
|
Video Frame Rate
|
≥150 fps
|
16.
|
Color temperature
|
6500°K to 9500°K adjustable
|
17.
|
Control method
|
Controlled by PC, synchronous display
|
18.
|
Life span( half brightness)
|
≥100,000 hours
|
19.
|
Weight
|
less than 45Kg /sqm
|
20.
|
IP rate
|
IP54 ( front side and rear side)
|
21.
|
Lowest power consumption
|
50W/sqm
|
22.
|
Peak power consumption
|
600W/sqm
|
23.
|
Input voltage
|
AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10%
|
24.
|
Operating Environment
|
Temperature:-25degree~+60degree Humidity:10%~95%RH
|
25.
|
Operating system
|
Windows 98/2000/ME/XP
|
26.
|
Type of video signal
|
S-video, composite video ,RGB ,VGA ,DVI
|
Universe Optoelectronics Co., Ltd. is a high-tech private company who combines research, development, production and Sales into one kit. It is one of the R & D and manufacturing base of the Energy and Power Institute of Huazhong University of Science and Technology, it is Also cooperate with China's State Key Laboratory of Optoelectronic.
Our company mainly engaged in the manufacturing of LED 7segment, connectors and other LED lighting products. The products are widely used in electrical appliances, computer, and lighting decorative and other fields. LED lighting products are with low energy, environmental protection and other features, which is in compliance with the global advocacy of energy saving and environment protection.
Our company covers an area of 7000 square meters, employs more than 500 people, including 120 professional R & D and technical staff. The workshop selects the advanced manufacturing system, strict quality control system and complete product inspection flow. The product has passed not only the related the ISO9001 authentication, but also the product authentication of RoHS, CE...
Company uphold the idea of managing continually, wholeheartedly and faithfully sercvice for new old customers with high technology and high quality.
