High Definition Indoor SMD LED Display P2.5mm Message Video
| Price: |
US $ 1600/Square Meter |
| Trade Terms: |
CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Money Gram,Western Union |

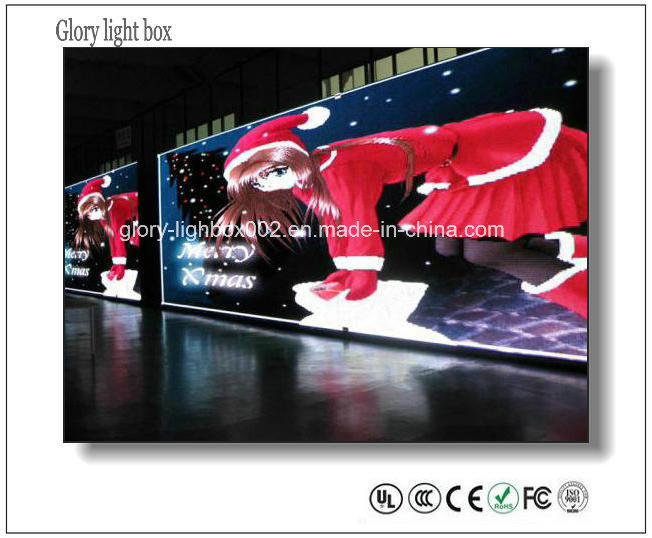

High-density P2.5 Indoor Full Color Led Display
Features:
With the smaller pixel pitch of 2.5mm, three vertically arranged of R G B lamp which constitute a single pixel makes best color performance and the density can reach 160000pixels/;

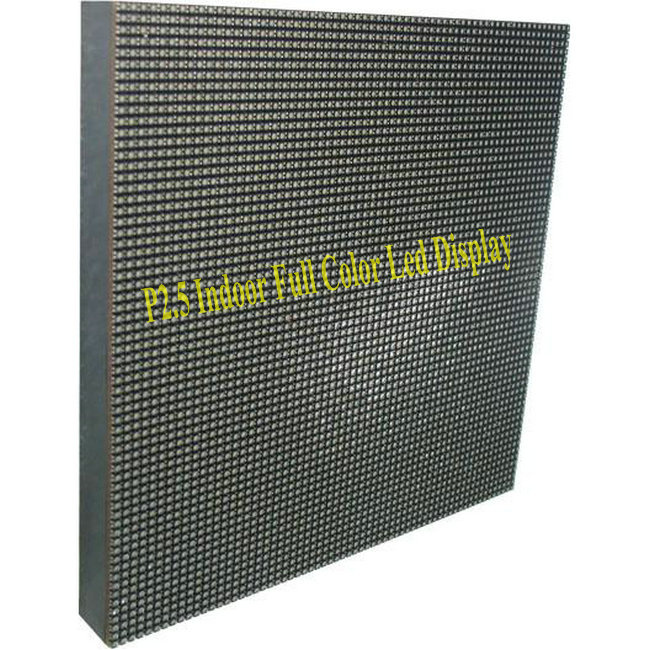

With the resolution of 64*64, module size of 160mm*160mm, the structure of combined driver board ensures the high reliability;
With larger view angel, soft image, high definition which is suitable for indoor application;
With the features of high brightness,low attenuation,high reliability and good consistency;
With the effect of non-granular, better color uniformity, non-mosaic phenomenon;
With the design of multi-layer circuit board makes the uniform distribution of current distribution, quick heat dispelling, long life span and high reliability;
With the black face LED, the contrast ratio is very perfect.
| Item | Specification Parameter | Remark |
| Pixel Pitch | 2.5mm |
|
| Material | aluminum |
|
| Color | Silver gray |
|
| Cabinet Size | 640*640 mm |
|
| Resolution rate | 256*256 Dots |
|
| Module quantity | 4*4 |
|
| Density | 160000 dots/M2 |
|
| White balance luminance | 500-800 CD/M2 |
|
| Color temperature | 6500K_11000K |
|
| view angel | H: 120; V: 120 |
|
| Protection grade | Before/After: IP30/IP30 |
|
| Non-Flatness | < 0.2mm |
|
| Module interval | < 0.2mm |
|
| Cabinet Weight | 13 kg/Cabinet | With power supply
|
| Gross Weight(kg) | 65 kg(Estimated data) | 4pcs / Case
|
| Outer Package Size | 720*550*770mm(Estimated data) | 4pcs / Case
|
| Maximal power/M2 | 390 W/M2 |
|
| Average power/M2 | 120 W/M2 |
|
| Frame frequency | 120 Hz |
|
| Refresh frequency | 2400 Hz | Depending on the selected drive chip and control system |
| Gray grade | 16bit/65535color |
| Luminance adjusted | 256 grade by auto-optic/color & 8 grade by hand |
|
| Input signal | RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc |
|
| Control system | Novastar / Linsn / |
|
| system supports | Windows XP, WIN 7, |
|
| MTBF | > 5000h |
|
| Life-span | > 100000h |
|
Speckles rate
| < 0.0002 |
|
| Prod Model: |
LED079 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| Display Function: |
Image & Text Display |
| Pixel Configuration: |
1R,1G,1B |
| System Operating Platform: |
WIN2000 |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| IP Rating: |
IP43 |
| Certification: |
UL |
| Pixel Pitch: |
2.5 |
| Pixel Density: |
160000 |
| Scanning Mode: |
1/32 Scan |
