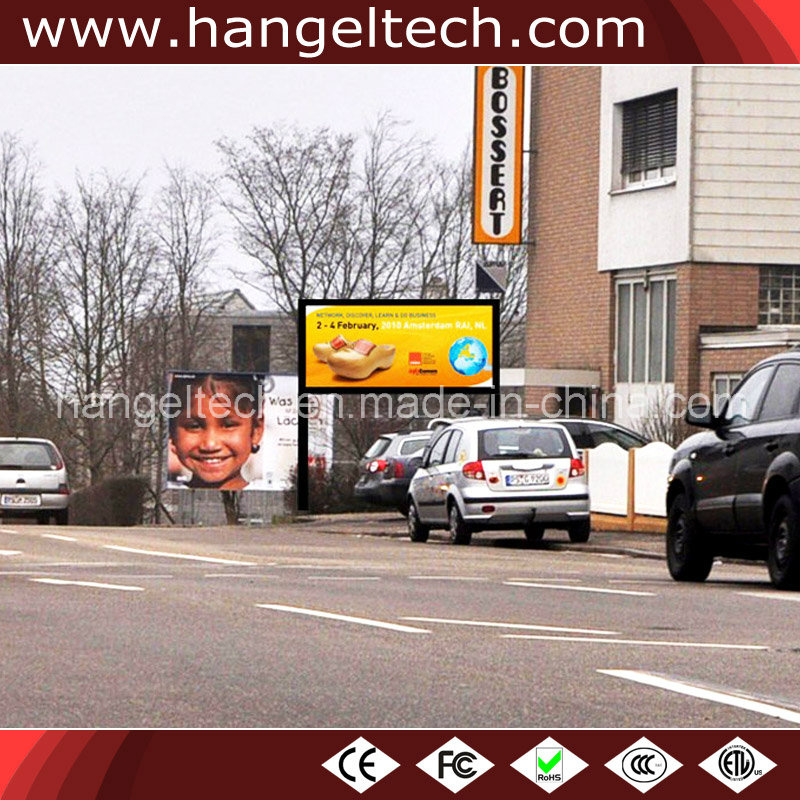

High Brightness P8mm Outdoor LED TV Display, weather proof, readable under sunlight, 2 years warranty
> Outdoor Full Color LED Display board, LED TV sign, LED display TV board;
> IP65, water proof and dust proof, UV-proof mask, pure black to improve the contrast rate;
> The best selling series. The standard close cabinet is the best selling series in the market;
> Standard steel close cabinet, strong, firm and flat. With the special designed rain channel, the cabinet is more strong, and no distortion during the shipping and installing ;
> Smooth and vivid image. The display is of 10-bit colors, with 65536 gray scale to play natural and vivid image.
> Many mature controlling solutions are optional. 3G, 4G, WIFI, group cloud controlling are available. Camera, cable TV, the 2nd development docking with other devices and optional. There is always a solution suitable for situation needing;
> Top-Brand Components make sure the reliable quality, MW power supply, MBI driving IC, etc.
> All the PCB is covered by conformal coating. It is water proof & insulated in some extent and helpful for heat dissipation;
> The display is firm and flat, IP65 water proof, seamless join, suitable for naked installation. Saving the decoration cost;
Application
> Outdoor Advertising - playing kinds of appointed ads, promotional information, etc. No matter it is video, flash, picture or text messages;
> Government & Enterprise Project - playing image promo, local cultures, landscape, etc.
> Culture & Tourism - playing information of landscape, interesting places, historic sites, local stories, culture, interesting manners and customs;
> Sport Matches - live broadcasting kinds of matches, events, posting the scores, etc.
> Image Propaganda - playing image promo, concerning ads, etc.;
> Commercial Real Estate - using as large outdoor digital billboard to play kinds of advertisement;
Specification,
LED Specs |
LED Chip Brand | Red, Green, Blue: Epistar; |
Wave Length (nm) | R: 625nm; G: 525nm; B: 470nm |
Pixel Configuration | 1R 1G 1B |
Module & Cabinet Specs |
Pixel Pitch | 8 mm |
Pixel Density | 15,625 Pixel/sqm |
Module Dimensions (W x H) | 256mmX128mm |
Physics Pixel / Module | 32 x 16 = 512 |
Module Frame | Separated Lamp Board and Driving Board |
Cabinet Dimensions ( W x H xT) | 1024mm X 768mm X 150mm |
Physics Pixel / Cabinet | 128 x 96 = 12,288 |
Module QTY / cabinet | 24 pcs of module |
Cabinet Weight | 47 kg/pc |
Cabinet Material | Steel Cabinet |
Cabinet Frame | Standard close cabinet with back door |
Tech. Parameters |
Brightness | 8000 cd/m2 |
Best Viewing Distance | 5 meters |
Power Consumption | MAX 1200 W/sqm; Average 400 W/sqm; |
Drive Mode | 1/4 scan, constant current driving |
Refresh Rate | >600 HZ |
Frame Rate | 60HZ |
Display Flatness | + - 0.5mm |
Maintenance | Back access, replace the module or other components |
Led Life Span | 100,000 hours |
Supply Voltage | AC110V / 220V, 10% more or less |
Operating Temperature | -20 Celsius ~ +50 Celsius |
Operating Humidity | 10%-90% |
Storage Temperature | -40 Celsius ~ +60 Celsius |
Viewing Angle | Horizontal:120°; Vertical: 65° |
Grey Scale | Red, green, blue each 16k |
Display Colors | 4096 Billion |
IP Rating | IP65 water proof, dust proof |
Aging Time in Factory | More than 72 hours constantly |
Control |
System Supported | win XP, win7, win8, win8.1, win10 |
Control Mode | Real Time Control (Synchronous) |
Display Capability | Flash, Video, Graphic, Text |
Signal Supported | RGB, VGA, DVI, etc. |
Warranty | 2 years |
Concerning Models |
HTF-OD6-S | HTF-OD8-S | HTF-OD12-S | HTF-OD16-S | HTF-OD20-S |
HANGEL TECHNOLOGY Co., Ltd. As a professional supplier of LED display products, we are devoting to the product R&D, manufacture, management, application, sales and service. We have a strong and professional team of engineers, product designers, experienced workers, excellent sales and professional after sale service man. On the principle of "reliable product, better solution, considerate service, competitive price", we are getting more and more customers in the global market.
Complying with "quality essential, customer first, keep developing", we never stop learning and researching new products, new technology to produce qualified items to meet clients different requirement.
Now, we have been an integrating company with wide variety of products, and keep growing.
- Full Color LED Display
- LED Scrolling Message Display
- Vehicle LED Moving Display
- 1 Line LED Moving Display
- Desktop LED Counter Display
- LED Cross Display
- LED Digit Display
- LED Name Badge
- LED Writing Board
And under every category, there are many different models for clients choosing a preferential item. We are becoming a professional one-stop purchasing platform of LED display products. Our products are exported to America, Mexico, Brazil, Russia, India, South Arica, Europe and other more than 50 countries!
