High quality P10 outdoor DIP LED module
Feature and Advantage
1. Waterproof and dustproof: IP65 front, IP65back
2. Best viewing distance: 10-100m
3. White balance brightness: More than 8000CD/sqm
4. Horizontal viewing angle: 120degree
5. Working temperatue: -20degree-+80degree
6. MTBF: More than 10, 000hours
7. Life span: More than 100, 000hours
8. Contrast ratio: 4000: 1
9. Average power consumption: 600W
Application and Market
1. Application

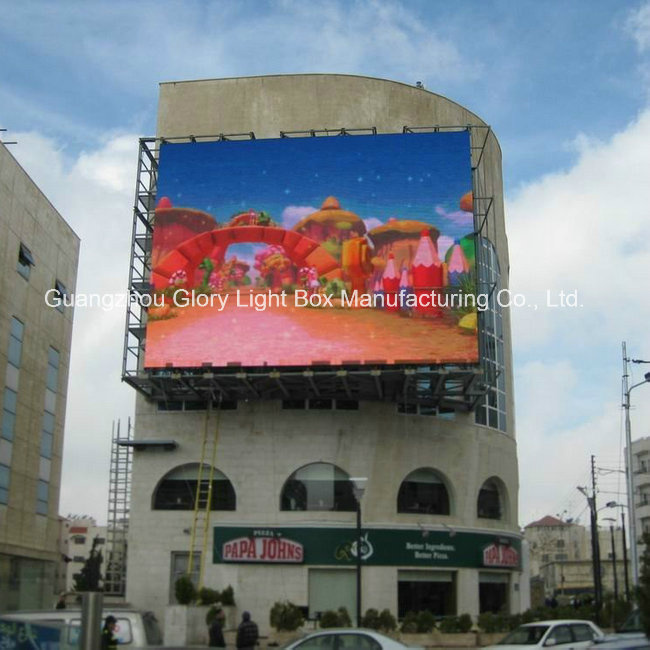

Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe
| Description | Technical parameter |
| Unit module | Module size | 160*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10, 000dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | Φ 3ellipse |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 36pcs |
| Power supply | 6pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 50kg |
| Best viewing distance | 10-100m |
| Temperature | Storage: -35degree~+80degree |
| Working: -35degree~+85degree |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 300-400W |
| Max. Power consumption | ≤ 1000W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 800Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 8000cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 960x960 |
| Software | LED media player |
Guangzhou Glory Light Box Manufacturing Co., Ltd. Located in Guangzhou, China.
We are the factory and offer various advertising light boxes, light box display, LED signs etc. The aim of us is to continuously develop new and more effective advertising products. We have many regular lightbox products. But as we know, there are ever-changing articles in the advertising area. So our company also make the customized item according to your request. Welcome to let me know your model, size, material, structures, weight etc...
Our main product: Advertising player, LED screen display, Scrolling light box, LED crystal light box, LED slim light box, acrylic light box, LED display screen, solar light box and so on.
Our products are exported to Europe, America, Australia, Middle East, Asia...We have cooperated with some famous brand, such as Coca cola, Guinness, Budweiser, Pepsi, Heineken, Tiger, Vodafone, Alfred dunhill. We are looking forward to the cooperation with you! !
Why choose light boxes? They widely used in the shopping malls, chain stores, , railway, bus-stop, airport, highway, parking lot, hotel, entertainment, the place where people here and there. Your products will be knowed quickly. And they are easy to application and maintain. Energy-saved and Environmental protection. It is the best choice to promote your products and bring your generous profits.
