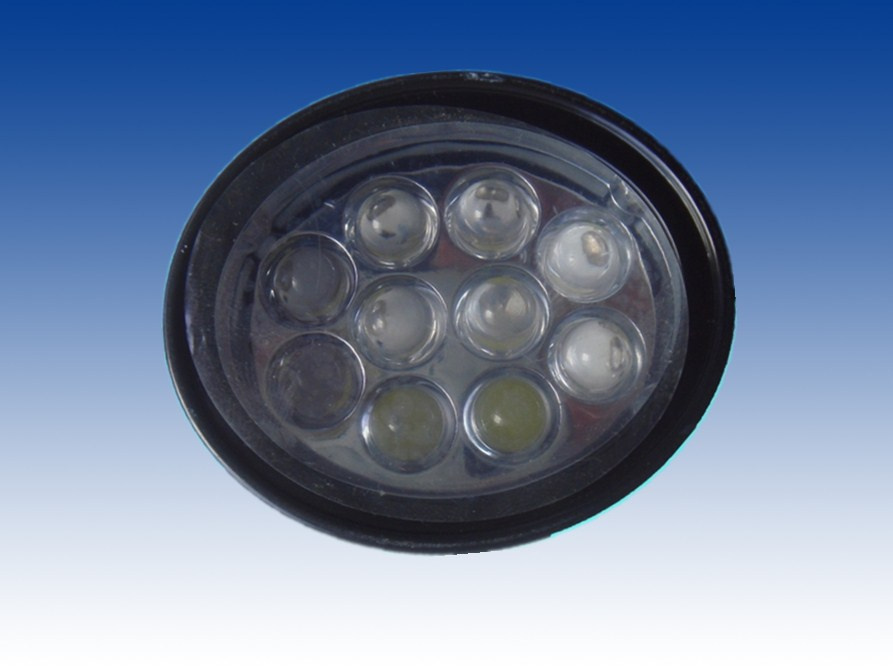

Features of Mining headlamp,
It adopts energy saving electric circuit, designs for incorporatestructure of safety lithium-ion battery, and ten low-power high-brightness LED illuminants, it has the characteristics little-size, light in weight, maintenance free, explosion prevention, waterproof, aseismatic and long-lived performance, fully charged could apply over 14hrs lighting time, over 50hrs two light source lighting, the irradiation angle can be adjusted up and down, It can be fixed on miner's hat, and it is the ehvironmental friendly which has the patent of high technology product.
Application of Mining headlamp:
It is suitable for mine working, hiking, railroad and navigation.
Specification of Mining headlamp:
(Working Temperature): -20~40
(CRI): Ra>80
(Charger AC input): AC110~240V
(DC output): DC4.2V, 0.5A
(Working frequency): 50~60Hz
(lithium-ion battery): 2.8AH
(working time ): ≥ 11h
(charging time): 6h
(battery circular-using life): ≥ 1000
(Life time): >20.000Hrs
(IP degree): IP65
(Pack size): 495*345*340mm
(N. W): 0.204kg
(G. W): 13.31kg
(Qty): 45PCS/CTN
Shenzhen Zhaohang Optoelectronic Technology Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Remarks
1. The aboved quotation is valid in one month, based on the MOQ 100PCS
2. Packing: 1PC/ white box
3. The detailed description is in our website, pls browse freely
4. The unit price can be negotiated according to quantity & customized demand.
5. Lead time: 7days for samples, and 22-25 days for order production,
6. Payment: 100% TT in advance for samples, 30%deposit, 70%balance for order production.
Productivity: 5000PC/month
Mode No |
Light Souree Type |
Lighting Current |
Accessorial Lihgting Current |
Main Lighting Voltage |
Accessorial Lihgting Voltage |
CCT |
3M
Illumination |
ZH-T8W001 |
φ 10 |
200mA |
40mA |
3.0-3.4V |
3.0-3.4V |
5500-6000k
4000-5000k
3000-4000k |
600-1800lux |
Shenzhen Cohon Lighting Co., Ltd. is a high-tech manufactory which is mainly engaged in technical research, production and service of LED semiconductor illumination. with an area of 5000 square meters, our company is equipped with numerous of advanced experimentation equipment and full automatic production pipeline of LED devices.
We have a very excellent design and R& D group who are professional in the field of LED application, external appearance, structure, illumination and drive electric source. Our company has employed doctors of Chinese Academy of Science as technology consultant. We have acquired many patents already, and now, more than ten products are under application for patents by our R& D hard working.
Our products include LED street light, LED headlights, LED miner's lamps, high power LED spotlights, LED emergency lights, LED floodlights, LED underwater lights and series of high-power LED commercial semiconductor lights. Besides, we also have developed capability of supply some special standard LED lighting products. And our products have passed the CE, UL and RoHS.
Our products have been exported to all over the world and they are welcomed by our customers, especially the series of 1W power LED miner's headlight has occupied more than 50% market in China. We will try our best to contribute all strength for the global green lighting and put more and better green semiconductor lighting products to the market.
