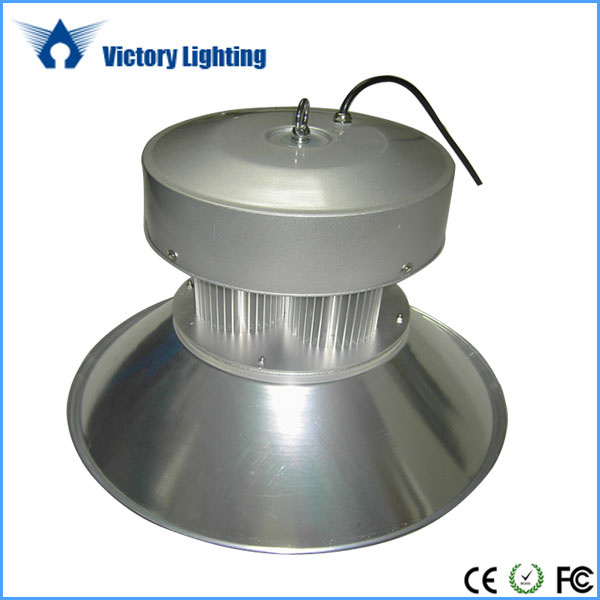

COB 120W IP65 High Bay LED Illumination Light
1. Main Parameters
Power: 150W/70W/80W/100W/120W/150W/200W
Chip: Bridgelux (45MILx45MIL)
Certification: CE&RoHS
IP Grade: IP65
2. Feature
>>Protection level: IP65.
>>stand Heat Sink Design: The LED illumination light is with pure aluminum heat lamps fitted with
ultra-thin overall welded to ensure rapid heat conduction while using fins and air convection cooling, to
achieve the best cooling effect.
>>Bridgelux 45MIL Chip: The LED illumination light adapts Chip with 1-5W power and integrated light
source, effectively ensuring the brightness.
>>120 Degree Lampshade: The LED illumination light adapts built-concentrating Cup highlighted with
light, light uniformity, so visual effect is more moderate.
>>Anti-glare Effect: The 120W LED illumination light can reduces glare, highlights the overall space lighting and improve the overall brightness of the railway/carport/warehouse/garage etc.
>>Aluminium alloy shell with face processed by anodic oxidation.
>>Small size, light weight, good heat dissipation and easy installation.
>>Bridgelux LED chip with long lifespan over 50000.
>>Wide voltage constant current driver which make the light has no flicker, safe and reliable
3. Application
1) Warehouse
2) Sport Fields
3) Stadiums
4) Factories
5) Grocery stores
6) Parking garages
4. Company Introduction
We Victory Lighting is mainly focus on LED Outdoor Lighting ( LED Street Light, LED High Bay Light, LED
Flood Light and LED Canopy Light), LED Indoor Lighting ( LED T8 Tube Light, LED T10 Tube Light, LED
Bulb, LED Spotlight). Every product from Victory Lighting is managed by ISO9001.
For any further information about our COB 120W IP65 High Bay LED Illumination Light, just be free to contact me.: )
| COB 120W IP65 High Bay LED Illumination Light |
| Power | 50W/70W/80W/120W/150W/200W | Size | 490x490x340MM |
| Housing Material | Aluminum Alloy | Color Temperature | 3000K-6500K |
| Lumens | 100-110lm/W | Power Factor | > 0.95 |
| LED Chip | Bridgelux | Chip Model | 45MILx45MIL |
| Working Temperature | -20° C-50° C | Weight | 4 kg |
| Insulation Grade | I | Corrosion-Proof Grade | WF2 |
| Cable | 8-14 mm | IP Grade | IP65 |
| Application | Warehouse,Industry, Garages etc. | Voltage | AC85-265V |
| Warranty | 2 Years | Lifespan | ≥ 50, 000 hrs |
