Model:YL-BRL18W1-CE
Size:600*75*24mm
Input voltage:AC100-240V
System power:18W
PF:0.95
Beam angle:120°
Luminous flux:1650-1750lm
CCT:2500-6500K
Ra:>80
Lifetime:30000Hs
Materials:PC+Aluminum

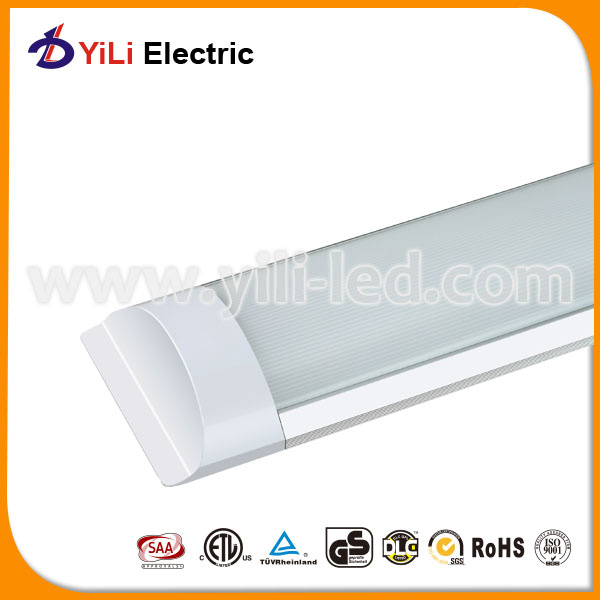

0.6M Panel Light
* Main cooling structure use anodized aluminum and atomization stripes PC, flame-retardant PC plug;
* LED panel lights and LED tube can be replaced;
* CRI above 80, finished luminous efficiency >100Lm / W;
* LED passed LM80 test, finished SCD <6;
* CE certification
Applications
* Widely use in hospitals, schools, shopping malls, restaurants, hotels, office buildings, etc.
Parameter | YL-MW18B-CE | YL-MW18N-CE | YL-MW18W-CE |
| Model |
| Watt(W) | 18 | 18 | 18 |
| Lumens(lm) | 1800 | 1850 | 1850 |
| Beam Angle(deg) | 120 | 120 | 120 |
| CCT(K) | 2700 | 4000 | 6000 |
| CRI(Ra) | >80 | >80 | >80 |
| Energy Efficiency Classes | A+ | A+ | A+ |
| PF | ≥0.95 | ≥0.95 | ≥0.95 |
| Efficiency Lm/W | 100 | 100 | 100 |
| Voltage(V) | AC100-240 | AC100-240 | AC100-240 |
| Frequency(Hz) | 50/60 | 50/60 | 50/60 |
| Lifespan(hrs) | 25000 | 25000 | 25000 |
| Working Temperature(ºC) | -20~40 | -20~40 | -20~40 |
| Storage Temperature(ºC) | -20~85 | -20~85 | -20~85
|
