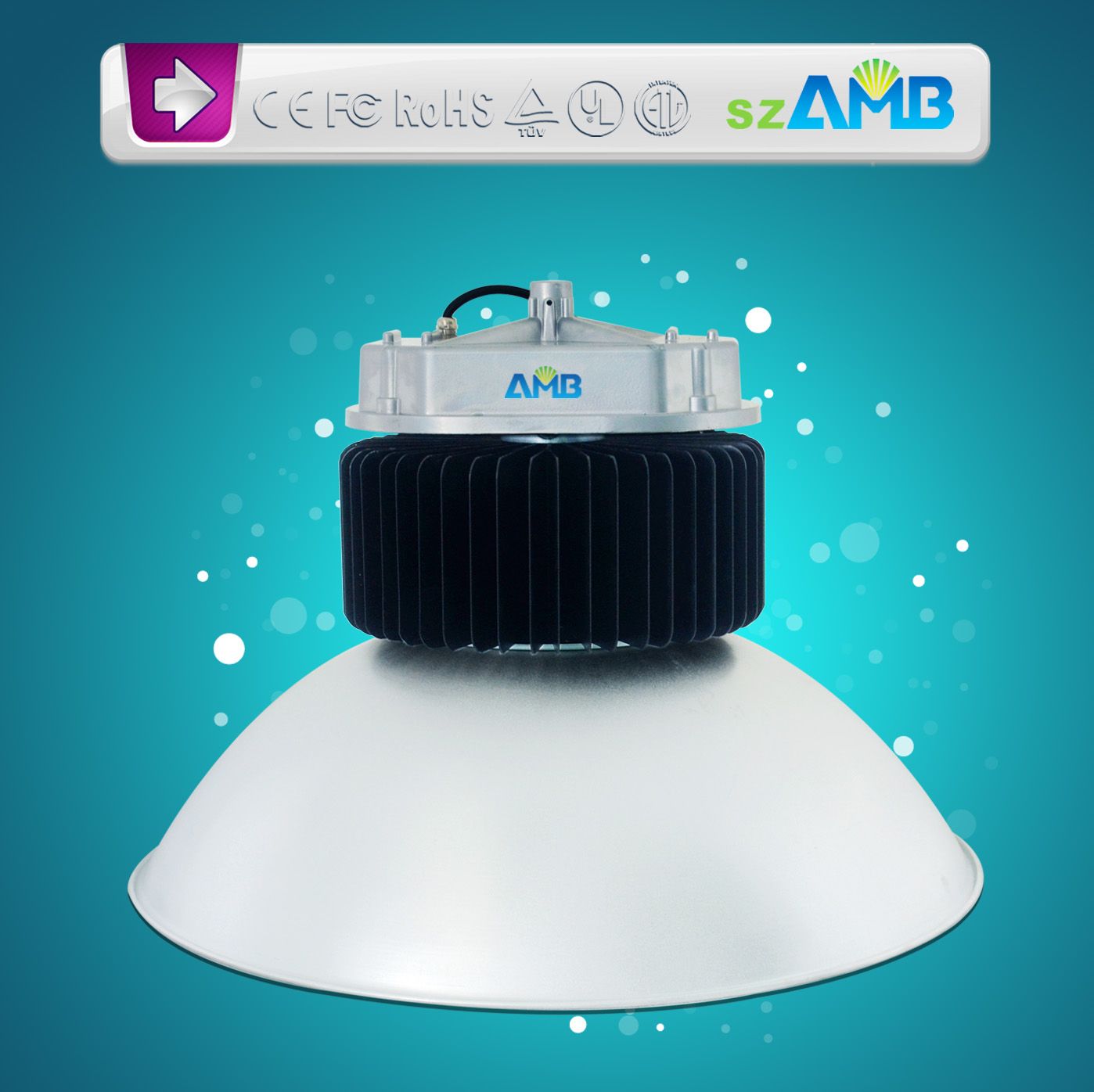

AMB High Bay Light LED, 150w High Bay Light LED, IP65 High Bay Light Led.
150W High Bay Light LED. High quality High Bay Light LED, high brightness High Bay Light LED, 5 years warranty time High Bay Light LED.
High Power bridgelux COB LED High Bay Light LED is the main products of AMB. We are using top quality and most brightness Bridgelux COB LED, our LED high bay is 130lumen/w, as we are using new material structures, it's IP65 and could be used in different applications. Besides we use pure copper and Japan patented cooling technology. AMB LED high bay become the top one in the world. Now AMB LED high bay light/LED factory light/LED warehouse light has been widely used in Factory Workshop, Warehouse, UTR Station, petrol station, Commercial Building, Palaestra like Indoor badminton hall, table tennis hall, car repair garage and decorating shop, container freight station, construction site and big area etc, where high brightness and dependable illumination is needed.
Model: AMB-3L-150W
Power 50W-300W
Luminous 4800lm-30, 000lm
Working Voltage 85-305VAC or AC347 AC385
Life Span >80, 000 Hours
Base N/A
Certification CE, RoHS, SAA, TUV, SCA, ETL (UL Pending)
Warranty 60 Months
Dimension Φ 480× 360-Φ 580× 572
Packing YES
Warranty time 5years
Warranty items Any quality problem AMB change free
Color temperature 2800k-6500k
High Bay Light LED Details advantages
Bridgelux 60mil COB chip, 7years warranty time
Taiwan meanwell HLG model driver 5years warranty time
Copper cooling system& Japan patent heat sink technology
Smart function: WiFi control +Dimmer function
Saving electricity up to 75% compared to High Bay
Safety enhancement with glass-material
Eco-friendly. No mercury contained
Anti-global warming by reduction of CO2 emission
Low temperature maintained by unique heat dissipation mechanism
Longer Lifetime of 50000~80000 hrs
Warranty period is 5 years from the date of purchase(Om condition
That operating ambient temperature is 0° C~40° C (32° F~86° F) and use time is 12hours per day)
High Bay Light LED application:
High Bay Light LED are widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarkets, kitchen, display, backlight and so on.
|
No. |
1 |
2 |
3 |
4 |
5 |
|
Model No. |
AMB-3L-50w |
AMB-3L-80w |
AMB-3L-100w |
AMB-3L-120w |
AMB-3L-150w |
Power Consumptionb
(W) |
50 |
80 |
100 |
120 |
150 |
LED Initial Flux
(LM) |
5200 |
8300 |
12000 |
12500 |
14600 |
Lamp Flux
(LM) |
4800 |
7500 |
10400 |
11900 |
13500 |
|
Beam Angle |
60° /120° /150° |
60° /120° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
60° /120° /135° /150° |
Input Voltage
(VAC) |
90-305 |
90-305 |
90-305 |
90-305 |
90-305 |
Power Factor
(PF) |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
> 0.97 |
|
Power Efficiency |
96% |
93% |
104% |
95.8% |
92% |
|
Color |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Warm White
Cool White |
Color Rendering Index
(CRI) |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
Ra75-85 |
|
Working Enviornment |
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
Temperature: -40-50degree
Humidity: 10%-90%
|
|
Material |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
Aluminum Copper
PC |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
Working Life
(Hours) |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
> 50000 |
Product Dimension
(mm) |
60° :
Φ 390× 280
120° :
Φ 415× 356
150° :
Φ 580× 280 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 525
120° :
Φ 580× 415
150° :
Φ 580× 320 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
60° :
Φ 480× 565
120° :
Φ 580× 455
150° :
Φ 580× 360 |
Packing Dimension
(mm) |
Lamp Body
3kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 290× 289 |
Lamp Body
5.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
5.9kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 429 |
Lamp Body
7.2kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Lamp Body
7.5kg/unit
2pcs/carton
Reflector: 30pcs/carton
610× 310× 610 |
Net Weight/
Gross Weight (Kgs) |
3kg/
3.5kg |
5.5kg 6kg |
5.9kg
6.5kg |
7.2kg
8kg |
7.5kg
8kg
|
SZAMB is professional smart LED high bay, Unique LED floodlight and New panel style LED tube manufacturer located in Shenzen, China
In 2005, SZAMB was founded and started Researching and Developing LED tube, LED high bay and LED floodlight,
In 2006. SZAMB put 80% energy, money to improve LED high bay series, after 9 months SZAMB LED high bay are upgraded to the top level in the world, we are the top LED high bay manufacturers. SZAMB offer 5years warranty time for LED high bay
In 2007, SZAMB cooperated with Japan Netled. Co. Jp to R&D Networked lighting system, which Optimizing the benefits of LED, NETLED allows granular control of long lasting and low power LED lighting down to the tube level through a cloud(Internet) system, By controlling illumination only when, where and to the degree needed, energy saving are optimized and lighting environment is improved
In 2008, SZAMB National dimmer LED tube set a food in the marketing. This dimmable LED tube range is from 0.2%-100%. Which was warm welcome by Canada, USA, EU distributors. Because it saved lots of money and energy for hotels. Airport. Office and commercial buildings
In 2009, SZAMB cooperated with Sweden energy. YB to R&D panel style LED tube, We know this new design LED tube will change all normal LED tube' S future, our Idea is LOF design (LED On Fixture),
Plug and play LED fixture with male and female connector and IP65 waterproof class advantages, SZAMB panel style LED tube is welcomed by for all high-level hotel, market, commercial building and outdoor garden, road project, SZAMB Saved electronic fee. Fixture fee, wireless fee and replacement fee for our customers
In 2010, SZAMB cooperated with Canada Wilcox Electric company to R&D green housing LED lighting, after 6moths testing by Columbia University, Yale university, it approved SZAMB 200W LED fixture is the best solution for fruit and vegetables growing
In 2011 SZAMB cooperated with Holland Lioris LED driver company. From 2011, SZAMB 9-40W LED tube with 50000hours warranty time set a foot in marketing, we are the only one factory can guarantee 50000hours for full tube because of the exceeding 0.99PF LED driver, , We do the testing in Germany, get TUV, VDE and CE report in Germany located testing lab, this driver tech is most 50 years progressive than other branch
In 2012, SZAMB netled WiFi control l LED tube, LED high bay finished the testing. NETLED lighting in one' S Personal Area can be controlled by iPhone, iPad or other smartphone (Android)
SZAMB cooperated with Japan Yashima company to R&D AC100-260V COB LED. Which is dimmable AC COB LED, no need driver. With this new technology, we will make more and more mini LED high power lighting. Save more money for our customers
We set up on the firm belief of offering the high quality, unique design, automatic functions and fully warranted LED tube and LED high bay to our customer at the most competitive price. We have a strong engineer team which composed of 15 individuals with perfect designers.
Our management system is strictly conducted according to ISO9001-2008, TUV, SGS standard. We always stay ahead of this field because of our talented creativeness, like Unique designed structure and attractive appearance, stable quality proved by TUV/CE/RoHS/FCC, ETL and UL certification. We have a great production group to ensure our production capability, professional LED tube SMT, Soldering machine and 102 people on the production line to make sure 30, 0000PCS of LED tubes and 100000PCS LED high bay output every month. LED technology is high efficiency, cost effective, energy efficient and environmental friendly. Our goal is to keep on researching and developing super LED tube and LED high bay, to offer a bright world. We will let the world know that "SZAMB change your light life ".
