HD LED Display Indoor P3 RGB LED Video Wall
1. CE,FCC,RoHS,C-Tick approved
2. High defination, High refresh
3. Superior uniformity, Good display effect
4. 2 years warranty, best after-sales service
5. Video, flash, animation, graphic, text available;
6. Installation structure drawing offered FOC;
7. On-line remote service is available;
8. Factory visiting and inspecting is welcome;
9. OEM service offered;
10. Models available:
Indoor led display-P2.5mm, P3mm, P4mm, P5mm, P6mm, P10mm etc.
Outdoor led display-P5mm, P6mm, P8mm, P10mm, P16mm etc.
| LED Specification |
| 1 | LED Chip Brand | Red: Opto / Epistar
Green & Yellow: Silan |
| 2 | Wave Length (nm) | R: 625nm;
G: 525nm;
B: 470nm |
| 3 | Pixel Configuration | SMD 3 in 1 |
| Module & Cabinet Specification |
| 4 | Physics Distance Between Pixels | 3 mm |
| 5 | Physics Pixel Density | 111,111 Pixel/m² |
| 6 | Module Dimensions (W x H) | 192mmX 192mm |
| 7 | Physics Pixel / Module | 64 x 64 = 4096 |
| 8 | Cabinet Dimensions ( W x H xT) | 960mm X 960mm X 120mm |
| 9 | Physics Pixel / Cabinet | 320 x 320 = 102400 |
| 10 | Cabinet Weight | 37 kg |
| 11 | Cabinet Material | Steel Cabinet / Aluminum Cabinet |
| 12 | Cabinet Frame | Standard Frame
Simple Frame (without backdoor)
Lifting Frame (specially for rental use) |
| Screen Specification |
| 13 | Brightness | 1300cd/m² |
| 14 | Viewing Distance (min, max) | >3m |
| 15 | Power Consumption / Screen | MAX : 800 w/m² ;
Average: 240 w/m² ; |
| 16 | Drive Mode | 1/16 scan |
| 17 | Refresh Rate | 300-3000 HZ adjustable |
| 18 | Frame Rate | 60HZ |
| 19 | Display Flatness | 0.5mm |
| 20 | Maintenance | Back maintenance, replace the module |
| 21 | Led Life Span | 100, 000 hours |
| 22 | Supply Voltage | AC220V/50HZ, ± 10%;
AC110V/60HZ, ± 10% |
| 23 | Operating Temperature | -20º C~+50º C |
| 24 | Operating Humidity | 10%-90% |
| 25 | Storage Temperature | -40º C~+60º C |
| 26 | Viewing Angle | Horizontal: 120° ; Vertical: 120° |
| 27 | Grey Scale | Red, green, blue each 16k |
| 28 | Display Colors | 4096 Billion |
| 29 | IP Rating | IP20 |
| 30 | Aging Time in Factory | More than 72 hours constantly |
| Control |
| 31 | The Software | LED Studio |
| 32 | System Supported | Win 98 / 2000 / 2003 / XP / WIN7 |
| 33 | Control Mode | Real Time Control (Synchronous) |
| 34 | Display Capability | Flash, Video, Graphic, Text |
| 35 | Signal Supported | RGB, VGA, DVI, etc. |
Product Features
High quality:
Use high quality LEDs with high luminous efficiency and low brightness decay to make the display stable.
Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.
Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well.
Advanced technology:
Advanced technology of production ensure the quality and lifetime of LED display; With a full range of anti-static measures, effectively reducing the damage to LED from the static, so as to control the death rate of LED five over one million each year.
Diversified display modes:
The products support multiple display modes.
Easy operation:
The products adopt popular video playing software to facilitate system operations.
Easy maintenance:
Easy for maintenance, and can fix the single point to save the maintenance cost.
Available range:

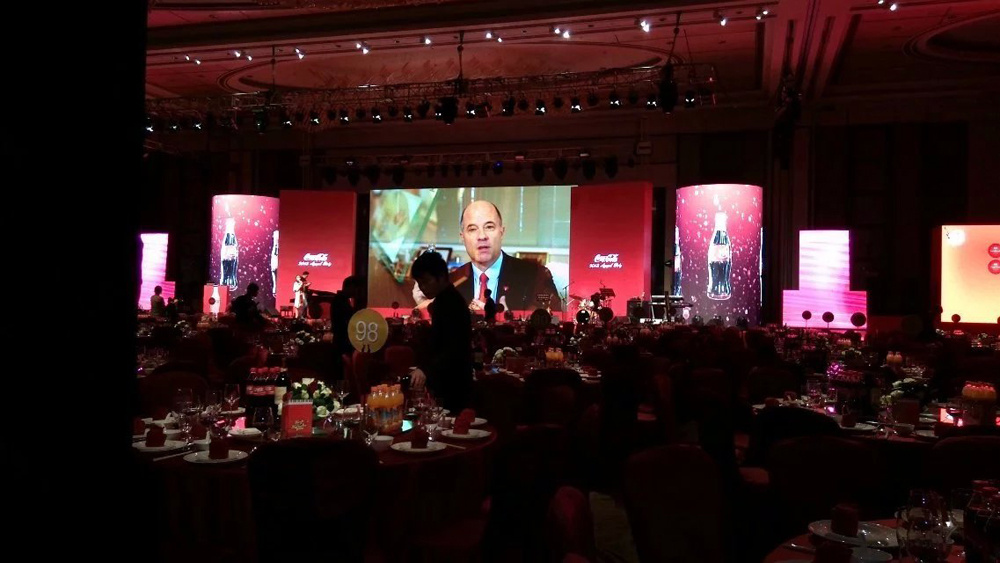

The indoor LED display screen is extensively used in hotel lobbies, conference rooms and retail showrooms for product display, indoor events and for the beautification of commercial as well as residental premises.
Packaging & Shipping
Standard Package: Veneer Case(Usually 3 cabinets in 1 veneer case)
Delivery time: 25 days after receiving the deposit
Pre-sales support
1. We offered technical advice to our customers before buying our products.
2. Help customers to choose suitable products within budget with most economy benefit.
3. Design the framework structure to install our led products with technical drawing.
4. We offered software customization for our customer's specific usage.
After- sales service
1. We promise our customers more than just two years warranty service!
2. We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.
3. We promise a life time followup service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.
4. We offered training to our customer who includes operating and maintenance of our products.
Warranty
Comcreating offers two years warranty.
Repairing and replacement during the guaranteed period will be free, but you should bear the freight cost from your place to our factory.
However, we can not guarantee on a workshop for replacement, compensation for damage, and repairing charge taking place within the following situations:
Accident due to careless handling and misusage.
Accident due to repair or improvement without permission of Shenzhen Comcreating Co., Ltd.
Accident due to force majeure/nature disaster (fire, flood) and war.
Training
We offer training for free.
Customer can send your engineer who has electronic and computer knowledge to our factory for the operation and maintenance training.
We also provide the operation manual, software, and so on. Any associated drawing of product and structure and some other professional suggestion will be provided too.
Installation
User's manual, instruction video, professional CAD installation drawing, and other needed engineering drawings will be provided.
We only offer the drawings, and you can show the drawing to your local steel structure factory, and they will weld it for you at site. On one hand, it's not cost-effective for you to ship the steel structure from China. On the other hand, we are impossible to offer you exact steel structure without welding at site.
Engineering training or installation assistance support at customer's place is available, but a round-trip ticket, local accommodation of technician, staff labor cost(USD80/day if exceeding one week), cost of visa, and other expenses during the whole trip should be borne by the customer.
Maintenance
Comcreating provides 1% spare parts freely, including LED module, power supply, fan, receiving card, LED lamps and other related parts.
You can replace the broken one with the spare parts when problem happens, which will take about 5 minutes, and then send the broken ones back to our factory for fixing freely before you don't have enough spare parts for next maintenance.
Additional charges will be required if you want more spare parts. We offer lifetime maintenance and charge only for the raw materials after the guarantee period.
Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
