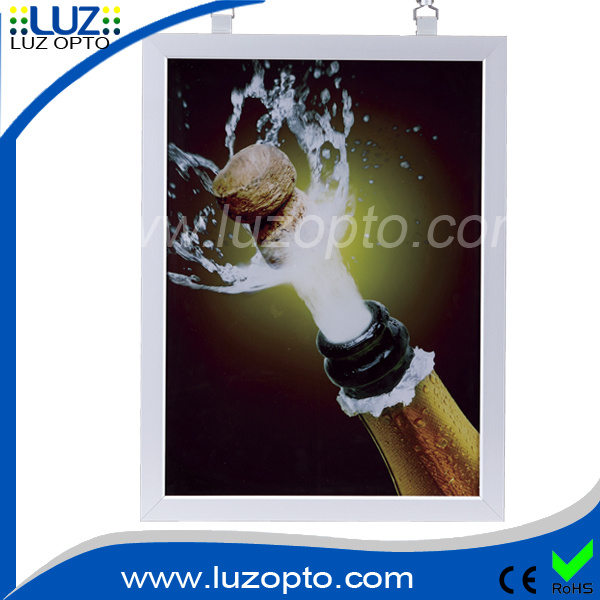

Hanging double sided led light box
1. Double sided
2. For ceiling or window hanging
3. LED illuminated
4. Aluminum frame snap open
SpecificationsAluminum frame LED light box, ultra thin LED light box.
LEDs & engraving light guide panel inside as light source.
Double side slim box---UL, CE, RoHS, TUV, SGS Certification, 3200 LUX
Center brightness.
1. Snap frame open, easy change picture.
2. Beautiful frame look, unique design style.
3. Any color available.
4. SMD LED light service. 20 000 hours life.
5.3-5 days finish 100 PCS
Products Features:
1)Saving energy
Adopting 12V suply voltage and LED cold light source. Having the feature of long lifespan, high brightness, glittering and translucent crystal. It saves more than 70-80% power than the regular products.
2)Ultrathin, fashional
It is only 10mm in thickness, make people feel elegent and honorable.
3)Portable
Unscrewing the advertising nails, you can change the pictures effortlessly, at the same time it is portable.
4) Safe, environment-friendly
The product is waterproof, explosionproof, low heat, environment-friendly and customers can ease to use.
5)Making pictures dynamic
With the high quality optical light guide panel, make it effectively protect the picture against fading.
|
Model No. |
Frame size(mm) |
Graphic Size(mm) |
Visible size(mm) |
Weight(single/double) |
Power |
|
LZ-IDSA-AL2130-A3/LZ-IDDA-AL2330-A3 |
317 x 440 |
A3 (297 x 420) |
257 x 380 |
4kgs/4.5kgs |
12w |
|
LZ-IDSA-AL2130-A2/LZ-IDDA-AL2330-A2 |
436 x 610 |
A2 (420 x 594) |
376 x 550 |
5.2kgs/6.4kgs |
16w |
|
LZ-IDSA-AL2130-A1/LZ-IDDA-AL2330-A1 |
610 x 857 |
A1 (594 x 841) |
550 x 797 |
8.7kgs/9.6kgs |
23w |
|
LZ-IDSA-AL2130-A0/LZ-IDDA-AL2330-A0 |
857 x 1205 |
A0 (841 x 1189) |
797 x 1145 |
11.8kgs/15.8kgs |
33w |
|
Thickness of Frame |
21mm single sided-22mm double sided |
|
Width of Front Snap Frame |
30mm |
|
Illumination |
5050 SMD led |
|
Surface Color |
Silver Anodised Aluminum |
|
Frame Type |
Snap Open/close. Easy to change graphic |
|
Mounting Method |
Single sided: wall screws.
Double sided: Cable, or hook |
Xiamen Luz Opto Electronic Technologies Co., Ltd is located in a very beautiful city, Xiamen city, China. We are specialized in designing, manufacturing and marketing of LED light box.
LUZ has been pursuing the innovation and the development unceasingly. We upbuilt the modern high quality automatic production line and consummate quality examination control system. Scale of production has been more than thirty series and over one thousand specification, our main products cover a wide range: Snap frame LED light box, Crystal LED light box, Magic Mirror LED light box, Magnetic LED light box, etc. In the mean time we provide OEM service. Of which are widely used for urban lighting decoration, indoor home decoration, hotel decoration, stage lighting, , road lighting and other areas.
We also encourage the conception of "Environmental Protection".
We widely promote the LED products which can save 85% power comparing with the traditional incandescent lamp.
LUZ have got perfect sales and best after-sales service, our products have been sold to Europe, America, Japan, Korea, Middle East, Southeast Asia and other foreign markets.
We will try our best to cooperate with all customers and provide our best service.
