Good Price LED Underground Light 3W LED Inground Light
| Price: |
US $ 4-5/Piece |
| Trade Terms: |
FOB,EXW |
| Min Order: |
5/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |

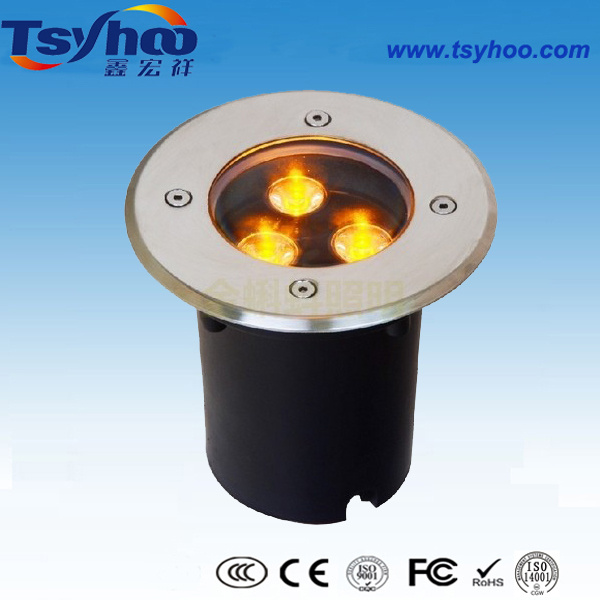

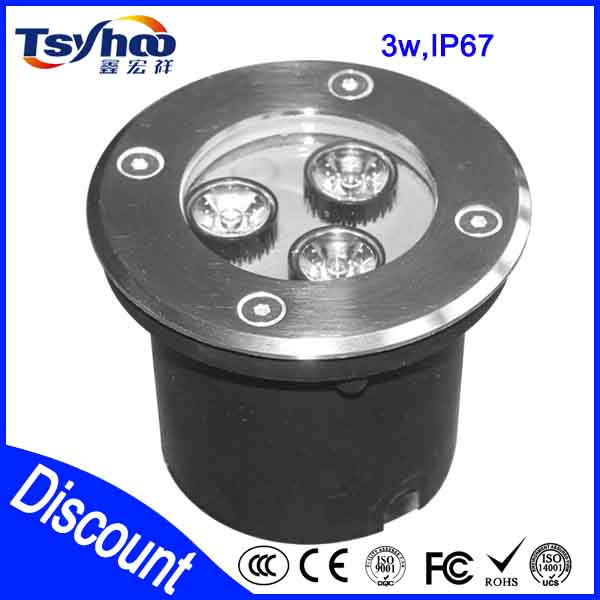

Good Price LED Underground Light 3W LED Inground Light
Specification:Product description: 3W LED Underground Light
Product Model: XHX-UG2S1W XHX-UG3S1C
Beam angle: 30°
Input wattage: 3W
Product material: Die casting aluminum + toughened glass
Input voltage: AC 100-240V
Life span: >35, 000 hours
Light source: 3PCS 1W LED
Replace lamp: 30W halogen light
IP grade: IP67
Safety Specification: CE & RoHS
Solution: Built-in isolation driver
Features:1. High power Epistar as light source, with high lumens output.
2. Stainlss steel panel and aluminum shell, static spraying plastic, constant temperature curing.
Application area:
Widely used in Courtyard corridor, lawn garden, Sidewalk etc.
| 1 | Φ100 - 3W |
| Type | XHX-UG3W | LED brand | Epistar |
| Size | φ100*66 | Lumens | 240lm |
| Picking siz | 125*125*75mm | CCT | 2800-6500K |
| LED | high power 1W | CRI | ≥75% |
| LED power | 3W | Net weight/ Gross Weight | 0.43kg/0.47kg |
| Hole | Φ80mm | Shiny surface | Φ58 |
| Input | AC85-265V 50-60Hz PF≥0.9 | Lift time | ≥50,000Hours |
| 2 | Φ130 - 6W |
| Type | XHX-UG6W | LED brand | Epistar |
| Size | φ130*95 | Lumens | 480lm |
| Picking siz | 150*150*105mm | CCT | 2800-6500K |
| LED | high power 1W | CRI | ≥75% |
| LED power | 6W | Net weight/ Gross Weight | 0.9kg/1.1kg |
| Hole | Φ110mm | Shiny surface | Φ130 |
| Input | AC85-265V 50-60Hz PF≥0.9 | Lift time | ≥50,000Hours |
| 3 | Φ180 - 10W |
| Type | XHX-UG10W | LED brand | Epistar |
| Size | φ180*95 | Lumens | 800lm |
| Picking siz | 180*180*105mm | CCT | 2800-6500K |
| LED | high power 1W | CRI | ≥75% |
| LED power | 10W | Net weight/ Gross Weight | 1.5kg/1.6kg |
| Hole | Φ150mm | Shiny surface | Φ130 |
| Input | AC85-265V 50-60Hz PF≥0.9 | Lift time | ≥50,000Hours |
| 4 | Φ200 - 15W |
| Type | XHX-UG15W | LED brand | Epistar |
| Size | φ200*98 | Lumens | 1200lm |
| Picking siz | 210*210*100mm | CCT | 2800-6500K |
| LED | high power 1W | CRI | ≥75% |
| LED power | 15W | Net weight/ Gross Weight | 1.9kg/2.0kg |
| Hole | Φ170mm | Shiny surface | Φ160 |
| Input | AC85-265V 50-60Hz PF≥0.9 | Lift time | ≥50,000Hours |
Product Pictures:
Application:
Applicable to the street,the road,the building , the landscape,the supermarket, underground parking lot , highway toll station, gas station,exhibition hall, gymnasium and other lighting places.

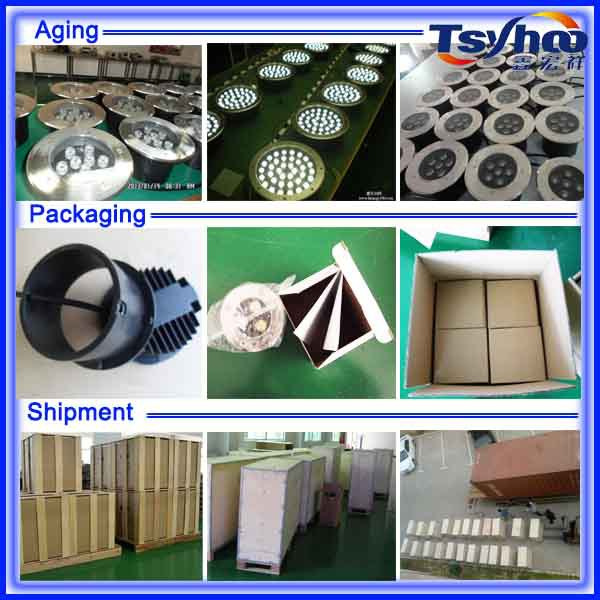

Packaging & Shipping ,Trade Terms:
Shipping:
1. FedEx / DHL / UPS / TNT for samples, Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 1-3 days for samples; 5-25 days for batch goods.
Payment Terms:
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 5pcs.
3. Warranty : 3 years.
4. Package Informations: 1 pcs per box /The volume of the box is 75cmx75cmx75cm.
| Prod Model: |
XHX-UG03A-3001 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
D110*H80 |
| Picking Size: |
125*125*95mm |
| Cut Hole: |
D95mm |
| Net Weight/ Gross Weight: |
0.5kg/0.6kg |
| Color: |
Single Color or RGB |
| Color Temperature: |
Pure White |
| Lamp Body Material: |
Aluminum |
| No. Of Light Source: |
≤10PCS |
| Application: |
park |
| Certification: |
RoHS |
| Input Voltage: |
12v |
| Light Source: |
With Light Source |
| LED Chips Brand: |
Epistar |
| Power: |
3W |
| IP Rating: |
IP67 |
