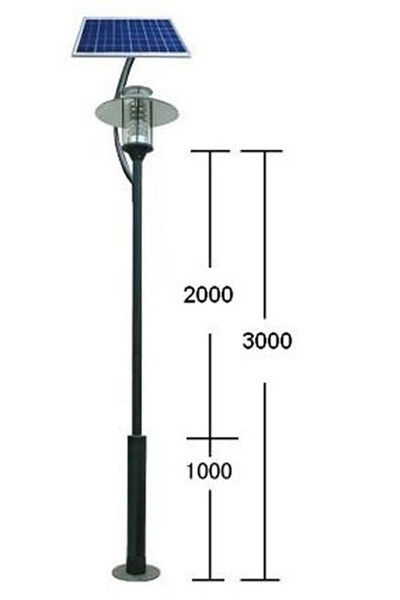

Garde Solar Lamp, Solar Garden Light (SLD-GL-201)

Solar garden light system (SLD-GL-202)

1. Solar Panel of Solar Garden Light

1.17.3% high conversion rate
2.10 years warranty
3.25 years life
4. Imported solar cells with class-A crystalline silicon
5. Surface maximum load capacity: 2400 Pa

2. LED Lamp of Solar Garden Light (high lumen LED, replace HPS )

1. High lumens led reach 110 lm/w.
2. Good stability can work under all kind of environment
3. Advance structure lead to low surface temperture less than 70 ciuse degree.
4. Dust resistance and water-proof grade IP66
5. Use imported USA BridgeLux chips, with liGarde Solar Lamp, Solar Garden Light (SLD-GL-201)fe span for over 50000h
6. Large beam angles reach 150 degree
7. Light decay less than 4%

3. Controller of Solar Garden Light

V-Detector Technology:
· Adjust the brightness of the lamps automatically according to the remaining power of the battery.
· TWO TIMES of rainy day backup than other systems.
Waterproof:
· IP67. Designed for areas with high humidity and dust.
Protection Functions:
· Protection of Short-circuit, Reverse discharging, Polarity, Lightning, Brownout and Over-charge.
Fully Automatic Operation:
· Detects day and night by sensor on the PV array.
· Turn on/off according to ambient light or pre-setting.
· Temperature compensation with external temperature sensor

4. Pole of Solar Garden Light

1. All kinds of style designed for option
2. Corrosion resistance with zinc anodised and powder coating
3. Long life of 25 years
4. Made from high quality cold roll sheet variety thickness for option

5. Battery of Solar Garden Light

1. Colloid material convienence of transportation.
2. Maintenance free
3. Long life span of 5 years

6. Accessories of Solar Garden Light

1. Base frame
2. Wire cable (copper)
3. Battery case


Solar Panel: Over 25 years of power generation capacity, with a 5-year warranty
LED Light: Ultra bright LEDs that last up to 50, 000 hours, with a 2-year warranty
Controller: Over 8 years of typical operating life, with a 2-year warranty, dusk until dawn operation or timed ON/OFF operation
Pole: Up to 25 years of long life time
Battery: 5 ~ 7 years of maximum life, with a 2-year warranty

No line voltage, trenching, or metering
No power outages
Battery backup for cloudy or rainy days
Distributed light and power - no single point of failure for enhanced security
Easy to install with quick connect plugs - less than 1 hour
No scheduled maintenance for up to 5 years
No cost of replacing concrete, asphalt or landscaping
No cost of transformers or meters to be added for electric service
Qualify for savings from various state and federal taxes and incentives
No monthly electric bills
Controlled charging to prolong battery service life
Long-life PV modules with more than 25 years of power generation capacity
Environmentally friendly - 100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution
Self-contained solution - Light on/off controlled by automatic daylight sensing or hour preset, no running or maintenance cost
Better light source - LED lights feature cool white light without flickering and higher brightness than sodium lights
Safe 12 volt/24 volt circuit, no risk of electric shock

Application:

Street Lighting, Park Lighting, Pathway Lighting, Gate Lighting, Ramp Lighting, Yard Lighting, Sidewalk Lighting, Fence Lighting, Private Road Lighting, Campus Lighting, Farm & Ranch Lighting, Boat Dock Lighting, Wildlife Area Lighting, Remote Area Lighting, Perimeter Security Lighting, Military Base Lighting
