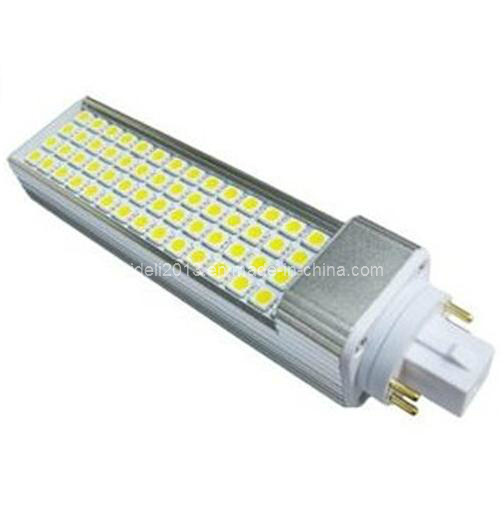

High Power G24 g23 PLC 13W dimmable SMD LED Bulb Lamp down Light GX24D/GX24Q Base
1. LED PL replacement CFL lamp
2. Base: G23/G24/E26/E27 rotatable available
3. WW: 1100LM CW: 1150LM
4.3 years warranty
5. CE RoHS
6. Base Type: G23/GX24/E27/E14/B22/G24(Please choose which type you need)
7. Pin: 2Pins (D1/D2/D3/D4) or 4Pins (Q1/Q2/Q3/Q4)gx24
8. LED emitting color: Cool White/ Warm White(Please choose which color you need)
9. Color temperature: 2700-3500K warm white, 4000-4500k Nature white/5500-6500k pure white
I0. Housing: Aluminum shell Heat sink +PMMA milky cover /Transparent cover
11. High intensity up to 90% energy saving that reduces carbon dioxide emission significantly
12. Up to 80% less heat generated
13. Up to 17 times longer life time (35, 000 hours)
14. No harmful ultra-violet or intra-red emissions than traditional light sources
15. RoHS compliant: Free of mercury and other toxic substances
16. Use Epistar/Samsung LED chips or others
17. Use indoor, non-dimmable
Application:
1. Shop display windows, hotels, restaurants and other interior lighting
2. Exhibition hall, art room, museum, office, reading room and local lighting
3. Atmosphere lighting for bars, discos, Kara OK, etc.
4. Durability special ambient lighting
5. Especially suitable for jewelry, gold ornaments and fashion clothese lighting.
| Technical data |
| LED Quantity | 60pcs | Luminous Efficacy | 90Lm/W | PFC | > 93% |
| LED Packing | SMD5050 | Lux/m( 1mts ) | 850Lux | Outer Case Material | Aluminium+ PMMA cover |
| Total Power | 13W | Beam Angle | 120deg | PC Type | Transparent or Pulverization |
| Input Voltage | 85-265VAC | Color Temperature | Warm white/ Cold white | Outer Case Temperature | < 40° C(Ta=25° C) |
| Rate range | 47-63Hz | fluorescent lamp | Ra> 70 | Work Temperature | -20° C~50° C |
| Power Factor | ≥ 0.5 | Life | > 30000H | Work humidity | 10%-90% |
| Luminous Flux | 500Lm | LED heat radiation | Aluminium | Weight | 120g |
| Base Type | G24/E27/GX24/G23 |
| Dimension | Dia35x160mm |
| Package | 1. Qty/ctn: 192pcs 2. Net weight: 120g 3. Gross weight: 25kg 4. Canton Size: 480*370*330mm |
