Full Color P4mm Indoor Custom LED Display
| Price: |
Negotiable/Square Meter |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Square Meter |
| Pay Type: |
T/T,Western Union |
Full Color P4mm Indoor Custom LED Display| Indoor P4 Technical Specification |
| 1 | Pixel Configuration | 1R1G1B SME3-in-1 |
| 2 | Physics Distance Between Pixels | 4mm |
| 3 | Physics Pixel Density | 62,500 Pixel/m2 |
| 4 | Module Size (W x H) | 256mmx128mm |
| 5 | Physics Pixel / Module | 64x32=2048 |
| 6 | Cabinet Size (W x H x T) | 1024mmx1024mmx120mm |
| 7 | Physics Pixel / Cabinet | 256x256=65,536 |
| 8 | Cabinet Weight | 42kg |
| 9 | Cabinet Material | Cold Rolled Steel |
| 11 | Brightness | >1300cd/m2 |
| 12 | Viewing Distance | >4m |
13
3 | Power Consumption (W/m2) | MAX 650; Average 195 |
| 14 | Driver Mode | 1/16scan |
| 15 | Led Life | 100,000 hours |
| 16 | Supply Voltage | AC220V/50HZ; AC110V/60HZ |
| 17 | Operating Temperature | -20ºC~+40ºC |
| 18 | Operating Humidity | 10%-90% |
| 19 | Storage Temperature | -40ºC~+60ºC |
| 20 | Viewing Angle | Horizontal:120°; Vertical: 120° |
| 21 | Grey Scale | Red, green, blue each 16k |
| 22 | Display Colors | 4096 Billion |
| 23 | Refresh Rate | 300HZ-3000HZ adjustable |
| 24 | IP Rating | Front IP20 |
| 25 | Display Capability | Video, Graphic, Text, flash |
About ProductHigh flexibility:Our company has made researches on various outdoor circumstances, and applied the research achievements to design systems, so as to obviously improve both the flexibility and reliability of our products in various bad circumstances outdoors. Rich colors:with three basic colors (red, green and blue) to form the unit boxes, 256-level gradation of red, green and blue form 16777216 kinds of colors, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images. High brightness:The products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine. Good effect:The products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers. High reliability:The products adopt the static scanning technology and the module design technology to offer higher reliability and stability. Diversified display modes:The products support multiple display modes. Easy operation:The products adopt popular video playing software to facilitate system operations. Available range:Government plazas, recreational plazas, large-scale entertainment plazas, busy business and commercial centers, ad information boards, commercial streets, and railway stations etc.. About ServicePre-sales support1. We offered technical advice to our customers before buying our products.2. Help customers to choose suitable products within budget with most economy benefit.3. Design the framework structure to install our led products with technical drawing.4. We offered software customization for our customer's specific usage. After- sales service1. We promise our customers more than just two years warranty service! We provide free maintenance services including remote configuration, technical consultation, and trouble shooting for our customer.2. We promise a life time followup service for all the equipment supply by our company. These include continuously improve of system functions and upgrade of system software.3. We offered training to our customer who includes operating and maintenance of our products. About CompanyShenzhen Comcreating Co.,Ltd is a professional manufacturer engaging in the research and development, production, sales and service of LED display system. With the continuous and stable development in the past 8 years, Shenzhen Comcreating Co.,Ltd has showed strong competition in the market both in products quality and service. 50 sets of advanced equipments including latest automatic optic-electronic test system are furnished in product line.the output is more than15kk LED each month.Our products are CE approved, ROHS compliant, C-TICK and FCC certificated. We had provided more than 3000 LED displays for more than 50 countries and regions,and gained a great reputation from customers.We grow up together with customers, and will be highly appreciated if any feedback from customers, which will be a great help for us to improve our products. Let us come together to create a lasting relationships, and let us help you in this business well.
| Prod Model: |
Indoor P4mm |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cabinet Material: |
Cold Rolled Steel |
| Module Size: |
256mmx128mm |
| Cabinet Size: |
1024mmx1024mmx120mm |
| Cabinet Weight: |
42kg |
| More Available: |
P3mm, P5mm, P6mm, P10mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
4mm |
| Pixel Configuration: |
1R,1G,1B |
| Scanning Mode: |
1/16 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC, C-Tick |
| Pixel Density: |
62500dots/M² |
| IP Rating: |
IP20 |

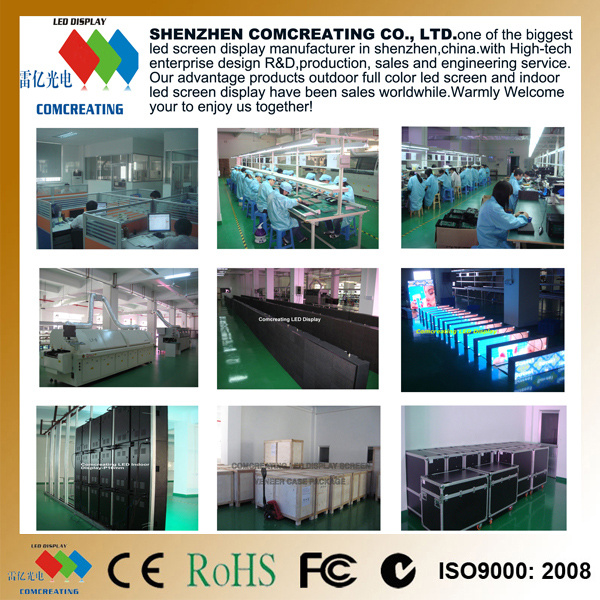

Shenzhen Comcreating Co., Ltd is a professional enterprise engaged in the LED display system research, productionn, sale and service. Our main products include outdoor / indoor LED Display. More than 200 employees work in our company. 50 sets of advanced equipments including lastest automatic optic-electronic test system are furnished in product line. The output is more than 1000 sq. M/month.
Due to our highly skilled R&D staff and the newest technology, all of our products enjoying world-wide reputation for their precise quality, competitive price and the best service guarantee. OEMs/ODMs are welcomed.
Comcreating has provided more than 3000 LED display for over 86 countries and districts. We have builded a mutually beneficail relationship with our customers. In the coming days, we will be more strictly urge our team to offer you LED display with excellent quality, competitive price and better service. Wish we can work together with you to create a win-win relationship!
