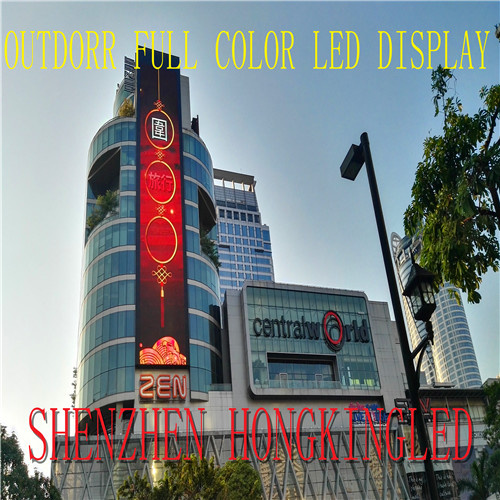

Outdoor PH10mm LED Display Quotation |
1. Function and Technology Character (1) Multiplied file formats, such as AVI, MOV, MPG, DAT, VOB are comprehensive, and also we have three display mode as VGA+VIDE and VGA. There are also interfaces for Sound signal and video signal. (2) 4096 grade grey control system and the color is over 16.7 millions, and the brightness, contrast, saturation, chroma can be adjusted by manual and sensor, whose scope is 256 grade. (3) Show all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously. (4) Line-Double technology is adopted for the picture adjustment. (5) Can be connected with PC and the web net and show the content, and also can be controlled remotely via VPM+ADSL. (6) Can be used outdoor in all kinds of weather, and excellent capability of antisepsis, waterproof. |
|
|
|
2.TECHNICAL SPECIFICATIONS |
|
No. | Item | Specification | Pictures |
screen | 1 | Display Area Dimension | 5.76m x4.8m=27.65(m2) | |
2 | Display Resolution | 576dot×480dot=276480pixels |
Cabinet | 1 | Single Cabinet size (W x H) | 960mm×960mm×150mm |
2 | Cabinet Resolution | 96x96 |
3 | Cabinet Quantity (sets) | 6X5cabinets |
4 | Cabinet Weight (kg/set) | 55KG |
LED Module | 1 | Pixel Pitch(mm) | 10mm |
|
2 | pixel density(dot/) | 10000 |
3 | Brightness (cd/) | 5800 |
4 | Module size(mm) | 320×160 |
5 | Resolution (dot) | 32x16 |
6 | Weight (g) | 500g |
Screen and Control System | 1 | Driver IC | MBI 5124 | |
2 | Power Supply | E-ENGCY |
3 | Best View Distancing | 10m |
4 | Vertical Viewing Angle | 140° |
5 | Horizontal Viewing Angle | 140° |
6 | Brightness | 5800cd/ Ensure brilliant images |
7 | Brightness Adjustment | Manual, 256 level; Auto, 8 levels |
8 | Grey Scale | 256 Shades Per Color |
9 | Grey levels | 16 bits |
10 | Operating Temperature | -30ºC~+60ºC 10%~95%RH |
11 | LEDs Lifetime | >100,000 Hours(over 11 years lifetime) |
12 | Input Voltage | AC110V/220V±10% |
13 | Input Power Frequency | 50/60Hz |
14 | Screen Power Consumption | Max: 1000w/; Average:330w/ |
15 | Refresh Rate | 1600HZ |
16 | Frame Rate | > 60 frames/sec | |
17 | Defect Rate | ≤0.0001 |
18 | Humidity | 0-90% |
19 | IP rate | IP65 |
20 | Control Method | Synchronized with computer monitor |
21 | Way of Drive | 1/4 scan |
22 | MTBF | > 10000 hours |
23 | Color Temperature | 6500K±500 |
24 | Color | > 16.7millions |
25 | Support Mode | VGA, 800*800 display synchronically with the computer, correspondence dot to dot |
26 | Control Distance | 120 m (no repeating); Optical fiber transmission: 500m- 10km |
27 | Systems Operating Platform | WINDOWS(WIN98,WIN2000,WINXP,WIN7), with a friendly UI, and interfaces for secondary development. |
3.Installation type |
|
|
|
|
|
|
|
|
|
|
|
|
REMARKS: |
| 1) SHIPPING CHARGER |
| FOB factory (this price do not include shipping charge). |
| 2) Payment Terms |
| 30% deposit for the order confirmation by T/T;70% balance before shipment by T/T. |
| 3) Warranty |
| Three years warranty |
| 4) Training |
| Training may be provided in Shenzhen China, or Providing engineer go to construction site for technical guide |
| 5) Production Lead Time: 20 working days after get deposit. |
| 6) Validity |
| This quotation is valid for 1 month, starting on the date of quote. |
