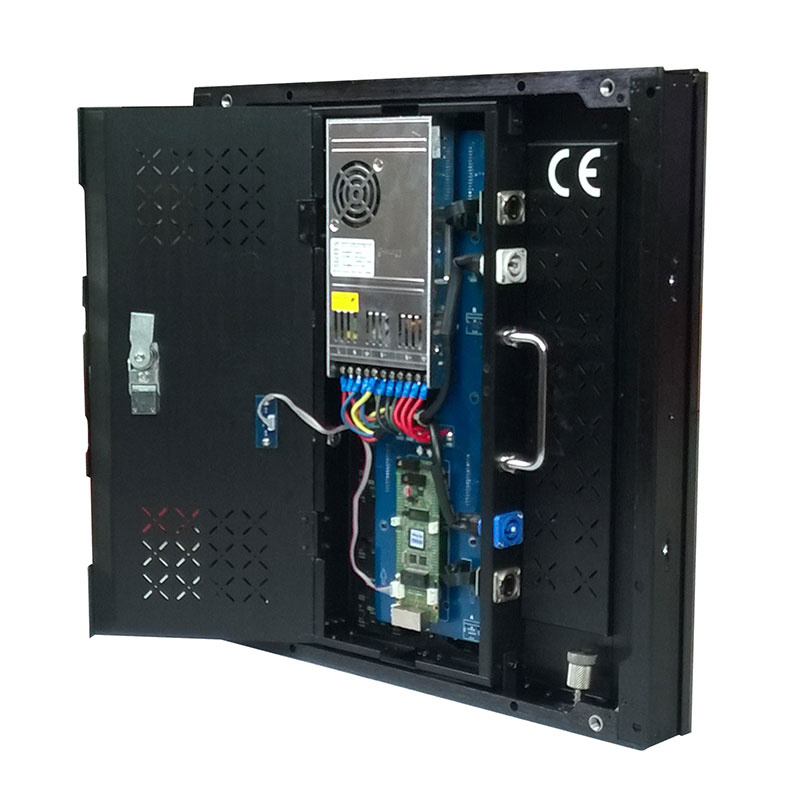

SMD Full Color Indoor LED Display Screen for Rental/Fixed (size 500x500mm)
Key Features:
1. Extremely close viewing distances and viewing angles
2. Quick lock system allow fast rigging
3. Silent operation
4. Excellent thermal management
5. Lightweight and seamless
6. Panel design with patented interlocking system
7. Application: Rental/Fixed
This kind of LED screen cabinet can be widely used in variouis of indoor environment. Is perfect for:
Corporate Meetings and Parties
Birthday Parties
Weddings
Sporting Events
Tournaments
Movie Nights
Concerts
Presentations
Fundraisers
Political Campaigns
Races
Stadiums
Super Sales Events
Grand Openings
Promotional Tours
Parades
Trade Shows
Shopping Centers
Contests
Religious Ceremonies
Auctions
Car Shows
Boat Shows
And Much, Much More! ! !
| Model | BST-P3.9-I | BST-P5.2-I | BST-P6.2-I | BST-P7.8-I |
| Pixel Pitch | 3.9mm | 5.2MM | 6.2MM | 7.8MM |
| Unit Size | 500mmx500mm | 500mmx500mm | 500mmx500mm | 500mmx500mm |
| LED Type | SMD 2020/black body | SMD 3528/black body | SMD 3528/black body | SMD 3528/black body |
| Pixel / Unit | 128*128 | 96*96 | 80*80 | 64*64 |
| Unit Weight | 7kg | 7kg | 7kg | 7kg |
| Viewing Angle | H160 degree V100 degree | H160 degree V100 degree | H160 degree V100 degree | H160 degree V100 degree |
| Application | Storage-40~60° C, Working-20~50° C | Storage-40~60° C, Working-20~50° C | Storage-40~60° C, Working-20~50° C | Storage-40~60° C, Working-20~50° C |
| Protection Level | For indoor use only | For indoor use only | For indoor use only | For indoor use only |
| Power Consumption | 160W/panel Max | 160W/panel Max | 160W/panel Max | 160W/panel Max |
| 80W/Panel Ave. | 80W/Panel Ave. | 80W/Panel Ave. | 80W/Panel Ave. |
| Driving | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/8 Scan |
| Frame Refresh | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz | ≥ 60Hz |
| Refresh Rate | 600Hz~2000Hz | 600Hz~2000Hz | 600Hz~ 2000Hz | 1200Hz~ 4000Hz |
| Processing | 16bit | 16bit | 16bit | 16bit |
| Max Brightness | 1,200nits | 1,200nits | 1,200nits | 1,200nits |
| Power Supply | AC90-240V, 50~60Hz | AC90-240V, 50~60Hz | AC90-240V, 50~60Hz | AC90-240V, 50~60Hz |
| MTBF | ≥ 1, 000 Hours | ≥ 1, 000 Hours | ≥ 1, 000 Hours | ≥ 1, 000 Hours |
| Life Span | ≥ 50, 000 Hours | ≥ 50, 000 Hours | ≥ 50, 000 Hours | ≥ 50, 000 Hours |
| Pixel Failure | < 0.0003 | < 0.0003 | < 0.0003 | < 0.0003
|
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
