| Prod Model: |
led -4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| N.W: |
11kg |
| IP Rating: |
IP20 |
| Strobe: |
Adjustable Speed Strobe |
| Control Mode: |
Dmx Signal Control |
| Certification: |
RoHS |
| Light Source: |
LED |
| Material: |
Plastics |
| Emitting Color: |
RGBW |
| Control Channel: |
9/28CH |
| Voltage: |
100-240V |

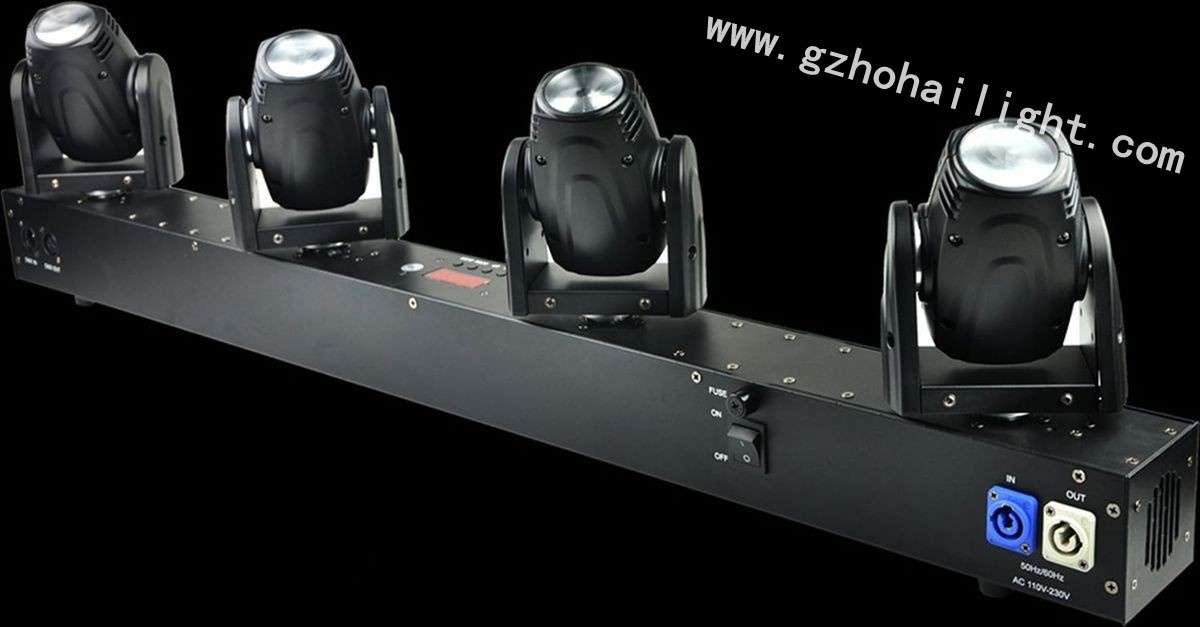

Product Description
Input Voltage(V): 100-240V
Beam Angle: 10°
Working Mode: Auto-run, DMX512, master/slave, sound-active
DMX Channel: 9/28CH, 3-pin XLR connectors
0-100% smooth linear dimmer,
Effect: Amazing streaming effect
Lamp Body Material: Stainless Steel
Size: 1090*90*250mm
Weight: 11kg
1. Input voltage: AC100-240V 50/60Hz
2. Light Source: 4PCS *10W Cree RGBW Leds
3. Power: 80W
4. Life Time: 50000 hours, low power consumption
5.4 head light, individually controllable
6. Fast and accurate horizontal / vertical rotation
7. Pan/Tilt: 540 ° /270 °
8. Scanning position memory function, automatic reset function
9. Lens: High Efficiency 8 degree Optic Lens
10. High speed stroboscopic 18 times / sec and a pulse stroboscopic effect
11.0-100% smooth linear dimming
12.12 kinds of macro function
13.8 built-in default program
14.9 /28 DMX channels can be switched
15. DMX512, master and slave machines, voice or self-propelled operation
16. Digital display
17. High efficiency and low noise cooling system
18. Dimension: 1030*90*250mm
19. Net Weight: 12KGS
20. Gross Weight: 14KGS
21. Carton Packing: 110*18*36cm
Model No.
|
YS-218
|
Input Power
|
AC90-240V 50-60Hz
|
Light Source
|
4PCS*10W 4in1 RGBW LED OR white leds
|
Power Consumption
|
60W
|
Lamp Lifetime
|
50,000 hours
|
Lense degrees
|
25° (45°,60°optional)
|
Colors
|
RGBW unlimited color mixing system
|
Color Tempreture
|
0~100% linearly adjustable from 3200K~10000K
|
Movement
|
Pan:540º Tilt:270º 8 bit smooth and precise resolution Scan position memory Auto reposition after unexpected movement
|
Control Mode
|
DMX-512, Master/Slave, Sound, Auto
|
Operation Panel
|
Blue Background LCD Display
|
DMX Channels
|
6/12CH
|
Power Input
|
Powercon connectors
|
Signal Input
|
3-core XLR input
|
Signal Output
|
3-core XLR output
|
Dimmer
|
0 ~ 100% linearly adjustable (16-Bit)
|
Strobe
|
0-20 t/s
|
Ambient temperature
|
-20°C~40°C
|
Housing Material
|
Rubber Plastic
|
Housing Color
|
Black
|
Hanging clamp
|
Easy installation with Omega lock
|
Net Weight
|
13G
|
Gross Weight
|
15KG
|
Packing Size
|
1100*310*510mm |
Guangzhou Honghai Stage Equipment Co., Ltd. is specialized in researching, designing, producing, marketing and service of stage lighting. We have a group of excellent engineer and technician. With its substantial technical force, the company has engaged in research and production of Honghai stage light.
Our products range from computer moving heads, color change to effect light, LED moving heads, LED PAR cansand LED outdoor products, each with I t s superexcellent quality, stable capability and satisfied service applied to a l l sorts of domains with I ts superexcellent quality, stable capability and sati s fied service, but also has won reputable feedback f ROM professors of the same f I e l d I n broadcasting, l I teratureregiment, performance, etc. Honghai light has become the preferred choice for famous brand, for instance, large-scale activities, entertainment parties, stadium hall and TV station.
We sincerely welcome new and old customers at home and abroad. Let us work together to develop the international market.
Welcome to order, we will serve you.
