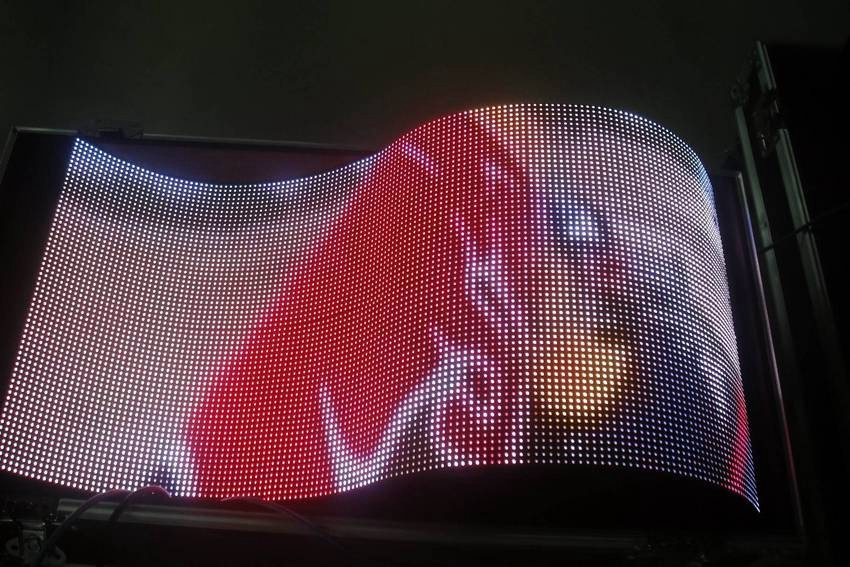

Flexible LED Display (P6.67, P10)
BST tiles are perfect solution for constructing smart, creative LED display systems with the ability to adapt to structures.
A unique rubber based magnetic flexible modular LED screen is designed and manufactured for indoor application P6.67mm & P10mm flexible Video Display tile is available now.
Using our flex LED screen technology, we can create a unique LED video display solution such as a circular column, curved, waved shape LED screen. Imagine the endless messaging, branding and advertising opportunities unlocked by the ability to wrap static columns, curved or waved wall in convention centers, stadiums, shopping centers, and more with seamless, brilliant imagery.
Flexible---BST Flex is capable of flexing to conform to convex, concave or twisted surfaces unlocking endless potential for unique installations.
Ultra-thin --- BST Flex flexible LED tile is only 10mm depth.
Lightweight --- BST Flex LED tile is only 0.48 kg Per tile saving labor and transportation.
Low heat ---- power supply can be placed Max. 20m away from the LED screen body and keep LED screen lower heat and long lifespan.
Front Maintenance --- BST Flex is designed with super easy assembly in mind and front maintenance, which can be fitted to metal frames via the integral magnets with each module.
Flexible installation system --- Versatile BST Flex displays can be installed in landscape or portrait orientations in order to fit your specific LED video display needs.
|
Module |
PH6.67 |
PH10 |
|
Pixel Pitch |
6.67mm |
10mm |
|
LED Type |
SMD3528 |
SMD3528 |
|
Module Resolution |
48*24 |
32*16 |
|
Module Size |
320*160mm |
320*160mm |
|
Driving Method |
1/8 |
1/8 |
|
Resolution |
22500pixels/sqm |
10000pixels/sqm |
|
Power Consumption |
400w/sqm |
300w/sqm |
|
Refresh Rate |
1200Hz |
1500Hz |
|
Brightness |
1500cd/sqm |
800cd/sqm |
We are a full range manufacturer and LED display solution provider and its ancillary systems worldwide since 2009, headquartered in Shenzhen with a 6000 square meter Production state of the art facilities to cover international demands. We provide a one-stop shopping in the design, production, and distribution of LED display and solution for our domestic and global clients.
Our products Cover indoor, outdoor, fixed, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events that comes to your imagination.
We strictly follow ISO9001: 2008 quality management system and passed CE, FCC, UL, RoHS, CCC etc. All of these factors ensure high quality LED products and effective services.
