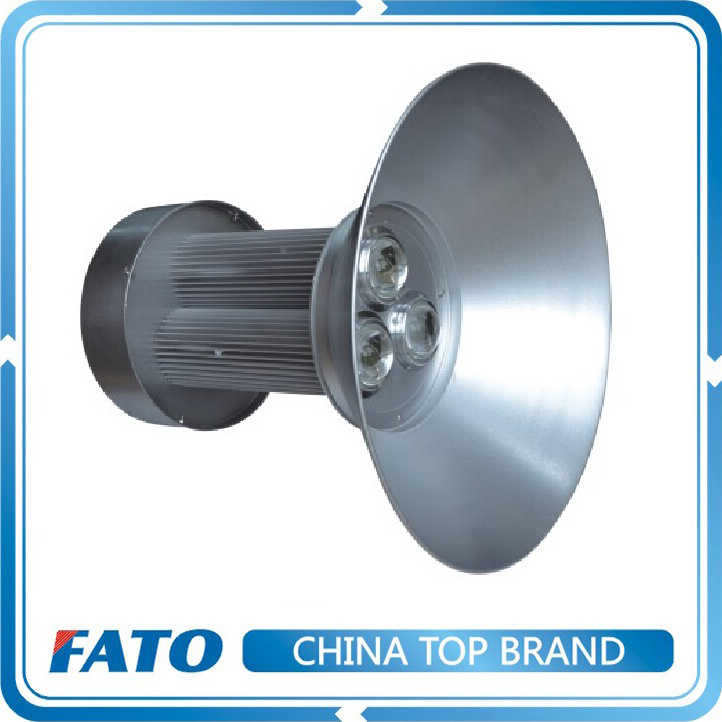

FATO 180W HIgh Power LED High Bay Light
Price: |
US $ 10/Piece |
Trade Terms: |
FOB,CFR,EXW |
Min Order: |
50/Piece |
Pay Type: |
L/C,T/T,Western Union |
FATO 30W-210W HIgh Power LED High Bay Light
APPLICATION
The factory, store, parking lot stadium gymnasium exhibition, tennis court, garage,park, building etc.
MATERIAL:Using aluminum alloy heat dissipation, pure aluminum shell surface treatment, independent research and eevelopment of the production of the unique, can make mold according to requirement. Dust - proof, riot, high photosynthetic efficiency, long service life, lower power consumption.
SPECIFICATIONS
Model | TS-42-001-30W | TS-42-001-50W | TS-42-001-70W | TS-42-001-100W | TS-42-001-120W | TS-42-001-150W | TS-42-001-180W | TS-42-001-210W |
Power | 30W | 50W | 70W | 100W | 120W | 150W | 180W | 210W |
Voltage | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V | AC85-265V |
Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
Power Factor | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 | >0.6 |
Lamp Luminous Efficiency | 110LM/W | 110LM/W | 110LM/W | 110LM/W | 110LM/W | 110LM/W | 110LM/W | 110LM/W |
Initial Lumens | 3300LM | 5500LM | 7700LM | 11000LM | 13200LM | 16500LM | 19800LM | 23100LM |
Luminaire Effiency | >90% | >90% | >90% | >90% | >90% | >90% | >90% | >90% |
Beam Angle | 90°/120° | 90°/120° | 90°/120° | 90°/120° | 90°/120° | 90°/120° | 90°/120° | 90°/120° |
Color Temperature | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K | 2700K-6800K |
Color Rendering Index | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 |
Working Lifetime | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
Working Temperature | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC | -40ºC-50ºC |
Electric Shock Protection | Grade I | Grade I | Grade I | Grade I | Grade I | Grade I | Grade I | Grade I |
FEATURES
1. Imported high luminance LED chips, reducing luminous decay. Built-in constant current ensure stable property.
2. Aluminum reflectors in high quality effectively imporve the reflectivity. Adjustable beam angle: 25°, 45°,60°,90°, 100°, 110°.
3. Aluminum alloy enclosures with surface oxidation has fine design and excellent in heat dissipation.
4. 3D heat dissipation, professional heat dissipation structure diesign. Modlular heatsink with perfect structure and inside airflow channels maxim the 3D heat dissipation.
5. AC85V-265V.
Prod Model: |
FT-001-180W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
3 Year Warranty: |
Aluminum Alloy |
Facory: |
Show |
Miner: |
LED |
Certification: |
CE |
Lamp Body Material: |
Aluminum Alloy |
Color Temperature: |
Pure White |
IP Rating: |
IP65 |
Power: |
30W |
Founded in 1986, China FATO MECHANICAL & ELECTRICAL EQUIPMENT GROUP COMPANY Ltd. Is being acknowledged as one of the most respected nationwide manufactures and exporters of low voltage electrical apparatus in P. R of China.
The Group, comprising more than 60 factories, owns a production area of 150, 000M2 and employs more than 3, 000 staff. During the past 18 years, we invested abundant resources in both research and development and employee training programs. The Group was ranked in the front of 100 tops of national private enterprises and 100 tops enterprises of Chinese Mechanical Industry. "FATO" is named as a famous trademark in domestic and overseas markets. Our company has took the lead in applying ISO9001 Quality Management System, ISO14001 Environmental Management System and OHSAS18000 Occupational Health and Safety Manangement System in same trade. Many products are certified under international certificate, such as CB, CE, BS, VDE, UL.
Currently, we have manufactured and exported more than 160 varieties of products, with over 2000 types of low voltage electrical apparatus including all kinds of Circuit breakers, Contactors, Relays, Starters, Switches, Panel meters, Fuses, Mechanical instruments and Electrical accessories etc. And we have already established great business relationship with renowned customers in South East Asia, Middle East, South America, Africa and EEC.
We are fully aware of the fact that only "Versatile Staff, Distinctive Quality and Advanced Technology"
Can keep us survive and succeed in today's highly competitive market. Hence, we will be with overall technology support, good service to meet the requirements of world.
Enquiries from both domestic and overseas customers are cordially welcomed. Just Tell Us Your Requirements and Let Us Do The Rest For You!
