Explosion Proof Induction Lighting LED High Bay Light
Application
1. Gas station,processing workshop or storage warehouse for Edible Oil,food and other oil products,smelting workshop which easily producing explosive dust and gases; chemical factories,warehouses and other special places.
2. Also can applied in Factories,workshops,Cargo space,exhibition centers,shopping malls or supermarkets,stadiums,toll stations, etc.

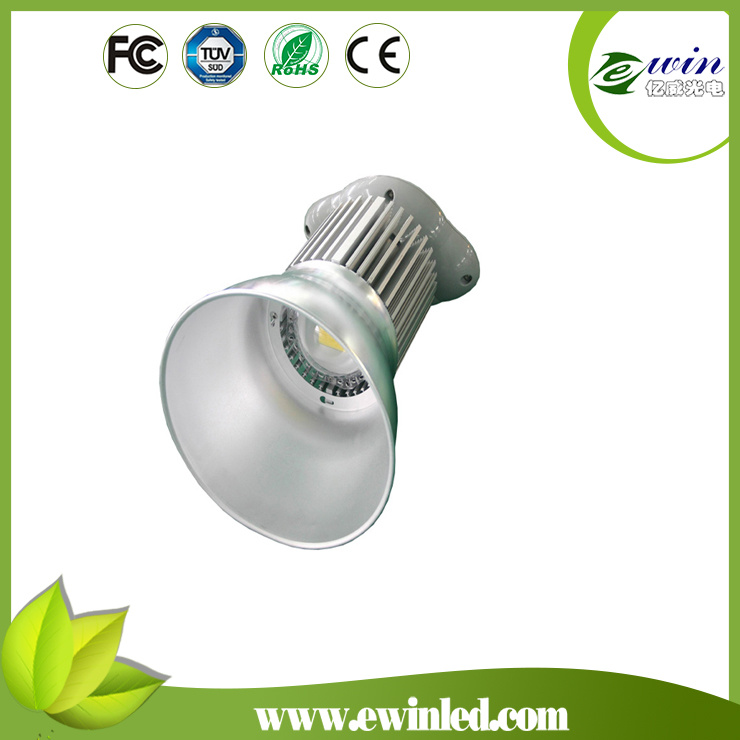

80W (60°) Explosion proof led high bay light
Specialty:
1,Using high power COB Leds and Meanwell driver; the lamp's luminous efficiency can reach 80-100LM/W, and Ra >80;Fins heating dissipation design enables the LED Tj within 85ºC, lifespan more than 35,000 hours ,the max power up to 200W; with protecting rate: IP65.
2, The anti-explosion high bay light is designed and certified according to standards for safety as below: GB3836.1-2010 Explosive environment Part 1:Equipment General Requirements;GB3836.8-2003 Electrical apparatus for explosive gas atmospheres-Part8: standards for "n" type electrical equipment; with Ex-marking ExnRIIT4Gc.
3, The light can be used at a place in which an explosive atmosphere in the form of explosive dust or combustible fibre in mixture with air is likely to occur continuously or frequently in short time, or for long periods in normal operation. According to the classification of explosion proof grade and application, the light can be use in Zone2. Surface temperature of item for safety:≤135ºC,Such as chemical factory or warehouse, gas station except mines.

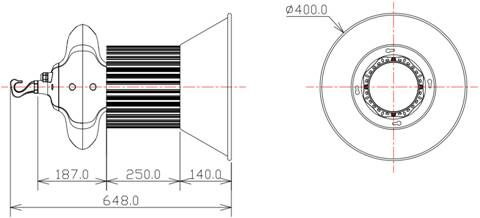

2Shape Structure
Shell Material:Aluminum Alloy
Shell Color:silver white
Net Weight:8.3 Kg
Unit:mm ±2mm
Explosion-proof Parameters
1)Explosion-proof(Grade)
ExnRIIT4Gc
Ex-Explosion-proof
(1)nR-Explosion proof form code of explosion proof electric equipment, nR for restrict breathing type, the others: D for explosion suppression type; IA for flameproof intrinsically safe type; MB for pouring type ;
(2)II-Explosion proof electrical equipment is divided into type I,II,IIIclass; class I used for coal mine gas environment; class II, III used for other explosive gases electric equipments except coal mines which can easily generate gas.
(3)T4-equipment external surface temperature range ( T4 means the temperature of any point on the external surface of UFO explosion-proof mining lamp ≤ 135 ºC);
(4)Gc-Electric equipment protection level, and has a corresponding relationship to its used place, Gc level of protection for the general, and it can be used in explosive gas environment -Zone 2;
2)Hazardous area classification
Explosive substance | Area definition | Chinese standard | Foreign standards |
Gas(ClassI) | Under normal circumstances, the explosive gas mixture continuously or long time existence. | Zone 0 | Div.1 |
Under normal circumstances, the explosive gas mixture is likely to existent site | Zone 1 |
Under normal circumstances, the explosive gas mixture is not possible appear, Only in abnormal circumstances, occasionally or short time existed site ; | Zone 2 | Div.2 |
Dust or fiber(ClassII/ClassIII) | Under normal circumstances, explosive dust or combustible fibre and air mixture may be continuous, a short time frequent appear or long time existence. | Zone 10 | Div.1 |
Under normal circumstances, explosive dust or combustible fibre and air mixture can not appear, just in case of abnormal condition, occasionally or short time appears. | Zone 11 | Div.2 |
3)Gas temperature group
Temperature category | Explosion proof electrical equipment surface temperature | Common explosive gas |
T1 | ≤450ºC | Methane,Toluene,Methyl ester,Ethane,Propane,Acetone,Acrylic acid,Benzene,Styrene,Carbon monoxide,Ethyl acetate,Acetic acid,Chlorobenzene,Methyl acetate,Ammonia,Acrylic ester,Two ether,City gas,Hydrogen,Water gas |
T2 | ≤300ºC | Methanol,Ethanol,Ethyl benzene,Propyl alcohol,Propylene,Butyl alcohol,Butane,Butyl acetate ,Amyl acetate,Cyclopentane,Butadiene,Epoxy propane,Ethylene,Acetylene |
T3 | ≤200ºC | Pentane,Amyl alcohol,Hexane,Hexyl alcohol,Heptane,Octane,Ring of ethanol,Turpentine oil,Naphtha,Petroleum (gasoline ),Fuel oil,Amyl alcoholfour,Two ether,Acrolein,Hydrocarbon |
T4 | ≤135ºC | Acetaldehyde,Tetrafluoroethylene,Trimethylamine,Ethyl ether,Two ether |
T5 | ≤100ºC | Carbon disulfide |
T6 | ≤85ºC | Acid ethyl ester,Nitrous acid ethyl ester |
This series explosion-proof lamp temperature group is T4, according to the above standard data, this series lamp can be used in the warehouse, workshop in the scope of T1, T2, T3, T4, and related places that require explosion-proof lamp lighting can be applied.
4Parameters
Input Voltage | AC100~240V AC200~480V For North America | Color Rendering Index | Ra>80 |
Frequency Range | 50~60Hz | Beam Angle | 60° |
Power Factor | >0.97 | LED Reduction Rate | 1~3% / 1,000Hrs |
Power Efficiency | >90% | Color Temperature | 2700~7000K |
LED Working Voltage | DC30~36V | Working Temperature | -20ºC~+45ºC |
LED Power | 80W | IP Grade | IP65 |
Total Power | 88W | Working Life-span | >35000H |
Luminous Efficiency | 80-100lm / W | Power line | VDE 3×1.5mm2 |
Connect wires | Brown→L /Blue→N Yellow or Green→G |

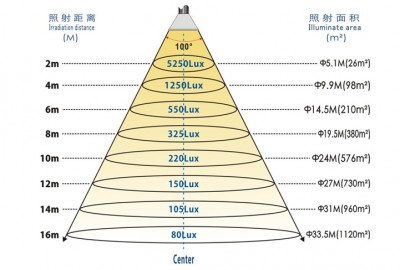

7Illumination Distance/illuminance/Irradiated Area

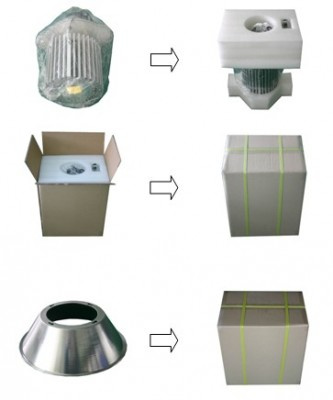

8Packing specification
Body(L)412×(W)312×(H)428mm 1PC/CTN 10Kg
Reflector(L)432×(W)432×(H)534mm 10PCS/CTN 4.5Kg
