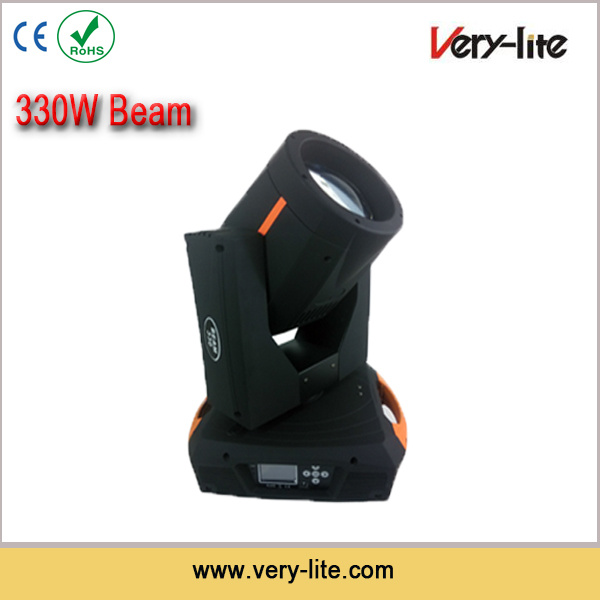

Excellent Sharpy beam 330W 15r Moving head light(BEAM-330)
1. Beam 330/beam 15R
2. LCD touch screen
3. 8 facet & 3 facet prism
4. 15r Spot Light
Technical parameters
Electrical |
Working Voltage | | 110-260V AC, 50/60Hz |
Power consumption | | 350W |
Photometric data |
Light source | | OSRAM 330W |
Lamp output power | | 330W |
Color temperature | | 7,500 |
Lamp life | | 1500 hours |
Color wheel |
| | One bi-directional color wheel with 14 dichroic filter plus open, half color available |
| | Rainbow effect |
Gobo wheel |
Fixed gobo wheel | | 11+blank ( rotated gobos)/Double rotation rainbow effect |
| | |
Effects |
Strobe | | Variable fast strobe/shuter 0-13 F.P.S. |
Zoom | | 0-100% linear zoom |
| | 4 ~ 26 degree, variable beam angles |
Focus | | Motorized focus |
Dimming | | 0-100% mechanical dimming |
Iris | | Motorized iris |
Prism | | 3-facet,8 facet prisms, bi-directional rotation |
Lense | | Anti-reflective coated lense |
Control |
Control mode | | DMX512; Stand Alone mode; Master/Slave mode |
Control panel | | LCD display; display can reverse 180 degree when fixture is mounted upside down |
DMX channel | | 16/20 DMX channel |
DMX connector | | 3-pin & 5-pin XLR input/output |
Movement |
Pan | | 540 degree (8/16 bit movement resolution), automatic self-correction. |
Tilt | | 270 degree ( 8/16 bit movement resolution), automatic self-correction. |
| | Pan/Tilt three position lockable |
Physical |
Net weight | | 23.5 kg |
IP rating | | IP20 |
CHANNEL | CHANNEL MODE |
| 16CH | 20CH |
1 | COLOUR WHEEL | COLOUR WHEEL |
2 | STOP/STROBE | STOP/STROBE |
3 | DIMMER | DIMMER |
4 | STATIC GOBO CHANGE | STATIC GOBO CHANGE |
5 | GOBO ROTATION | GOBO ROTATION |
6 | 3-facet prism | 3-facet prism |
7 | 8-facet prism | 8-facet prism |
8 | PRISM ROTATION | PRISM ROTATION |
9 | FOCUS | FOCUS |
10 | PAN | PAN |
11 | PAN FINE | PAN FINE |
12 | TILT | TILT |
13 | TILT FINE | TILT FINE |
14 | FROST | FROST |
15 | RESET | RESET |
16 | LAMP CONTROL | LAMP CONTROL |
17 | | PAN-TILT TIME |
18 | | COLOUR TIME |
19 | | DIMMER-PRISM-FROST TIME |
20 | | GOBO TIME |
our advantages
Price | We are factory, we can offer better price than trade company |
Quality | We have professional R&D team who have professional development ability |
Delivery | Prompt delivery |
After-sales service | Good after-sales service is offered for free |
MOQ | Sample is ok |
OEM/ODM | Welcome |
trade term
MOQ | 1PCS |
Price terms | EXW/FOB |
Payment | T/T, Western Union, Paypal |
OEM/ODM | YES |
Delivery time | Tow to twenty workdays |
Shipping | By air, by sea, by DHL/Fedex/UPS/EMS |
Warranty | Two Year |
About us
we are professional stage light manufacturer, we can provide all kinds of stage light, There are some hot products like beam 330w(15R),beam 200w(5R), beam 230w(7R), beam 130W (2R), 4 heads moving head, 1200w moving head moving head spot/ wash, 36*3w moving head, 36*10w moving head,108*3W led moving head, 36*3w par light, 54*3w par light, 3000w atomic strobe flash light,
pearl controllelr and so on, or you just tell me what you need, we can provide the products to
you according to your requirement, If you have any question, pls fell free to contact us.
Thanks for your coming!
Guangzhou Very-lite Equipment Co., Ltd.
Our company is an innovative production enterprise with researching, manufacturing and marketing. Our company is specialized in producing computer moving head series, moving head beam series, LED moving head series, LED PAR light series, LED wash wall light series, LED effect light series, effect of stage machine series, controller series and so on.
All our products have good reputation among our customers from domestic and overseas. We provide the products with high quality, competitive price, good after-sales service.
The core valve of our company: The good faith management, mutual benefit, common development.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
