Feature:

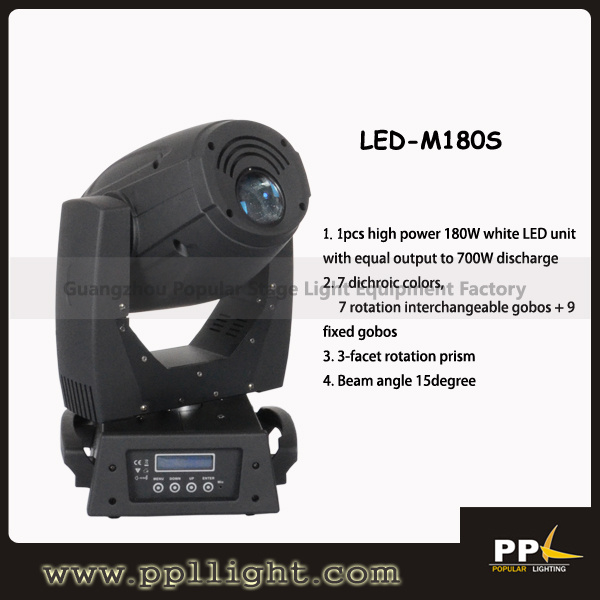

1. High power 180W white LED unit with equal output to 700W discharge
2. 50,000 hours lifespan and low power consumption
3. 16 bit smooth and precise resolution for PAN/TILT movement
4. 540° pan and 270° tilt movement
5. Scan position memory, auto reposition after unexpected movement
6. 1 color wheel with 7 dichroic colors plus open
7. Variable direction rainbow effect with speed adjustable
8. 1 rotatable gobo wheel with 7 rotatable interchangeable gobos plus open(3 metal gobos and 4 glass gobos) with speed adjustable, strean effect, dithering effect and rotatable clockwise or anticlockwise
9. 1 static gobo wheel with 9 fixed gobos plus open
10. 1 rotatable 3-facet prism with speed adjustable and variable direction
11. 2 meter to infinite electric focus
12. 15° projection beam angle
14. Electronic linear IRIS
15. 0-100% linear dimmer with 1-18 times/sec high speed electronic strobe
16. LED Shutter with variable speed
17. 17 DMX Channels
18. DMX 512, master-slave and sound activated controllable or auto operation (8 built-in programs)
Technical Parameter:
Voltage:AC90-260V,50-60HZ
Source:1*180W high brightness white led unit
Control Modes:DMX512,master -slave,sound activated,controllable,auto operation(8 builit in programs)
Control Channels:17CH
Power Consumption:240W
Dimensions:301(D)*321(W)*547(H)mm
Packing Dimensions:495(D)*415(W)*660(H)mm
N.W:13kg
G.W:16kg
DMX Channel
| 17channels | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
| function | X | X Fine | Y | Y Fine | Color | Gobo1 | Gobo 2 | Gobo 2 Rotation | Strobe |
| 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
|
| Dimmer | Focus | Prism | Prism.rot | Pan/Tilt Speed | Program | Reset | Iris Max.diameter to Min.diamater |
|
