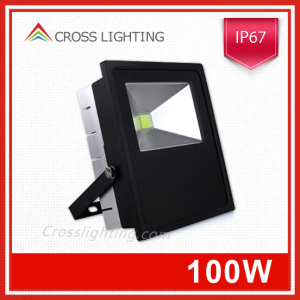

CE Approval High Power IP67 100W LED Flood light/ LED flood light, our LED flood light is good to use, welcome to buy LED flood light from us, thanks.
Feature:
-LED spotlight, LED floodlight
-Long life: 50, 000hrs
-Energy saving, environment friendly
-Low electro-magnetic radiation
-No IR radiation, No Hg, harmless to human body
-Easily and fast install, idea replacement of traditional lamp
-Constant current design ensure LED lamp to have a long working life.
Application:
-Home and office lighting
-Shopping mall lighting
-Display case lighting
-Art galleries lighting
-Decoration lighting
-Accent lighting
-Under cabinet lighting
Why to choose us?
* Your enquiry will be replied in 12hours.
* High-quality staffs will serve you in fluent English
* product can be made as per your request.
* All your private information can be protected.
* Strong supply capacity can help you enlarge your market.
|
Electrical parameters |
|
Input Voltage(AC,V) |
100-240 V |
|
Input current |
- mA |
|
Frequency |
50/60Hz |
|
Light modulation(yes/no) |
no |
|
Power Consumption, Psystem |
100 W |
|
Power factor |
≥0.9 |
|
Output Voltage(DC) |
28-43 V |
|
Output current |
3000 mA |
|
Optical parameters |
|
CCT |
Luminous Flux |
Color Rendering Index (CRI) |
Luminous Efficiency |
Beam Spread Angle |
H/3m Beam Spread Area |
|
|
|
2700K~3200K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
3800K~4300K |
≥-Lm |
≥- |
≥-Lm/W |
- ° |
- m |
|
5500K~6500K |
≥8500Lm |
≥70 |
≥85Lm/W |
|
- m |
|
|
|
100*120° |
|
Notes: Tolerance of Lumen:±10% |
|
Structure parameter |
|
Lamp material |
aluminum alloy |
|
Lampshade material |
tempered glass |
|
Outline Dimensions (L×W×H) |
285*255*103mm |
|
IP Grade |
IP 67 |
|
Installation mode |
fixed |
|
N.W. (Kg) |
3.9Kg |
|
One piece per package(L×W×H) |
295*265*138 mm |
|
G.W.(Kg) |
4.5Kg |
|
Manner of packing (L×W×H) |
545*290*320mm 4pcs/CTN |
Guangzhou Crosslighting Co.Ltd is established on the basis of Poinmark Lighting (founded in 1989) which is professional manufacture of LED flood light, LED high bay light, LED street light, we have all kinds of product, reliable product quality, advanced production equipment, sophisticated detection equipment.Comprehensive technology, also have the design of electronic circuit, heat radiation, optics, and the waterproof of outdoor lights.We adopt the project of Sanken and Xiantong for Our Electronic circuit, using A6063 aluminum to heat radiation which heat transfer coefficient can reach 209W/M-K, waterproof using suction principle, can reach IP67 on the premise that only use sealing ring without glue.The two light distribution can be done well as per request by ourselves.Our major business is exporting.
