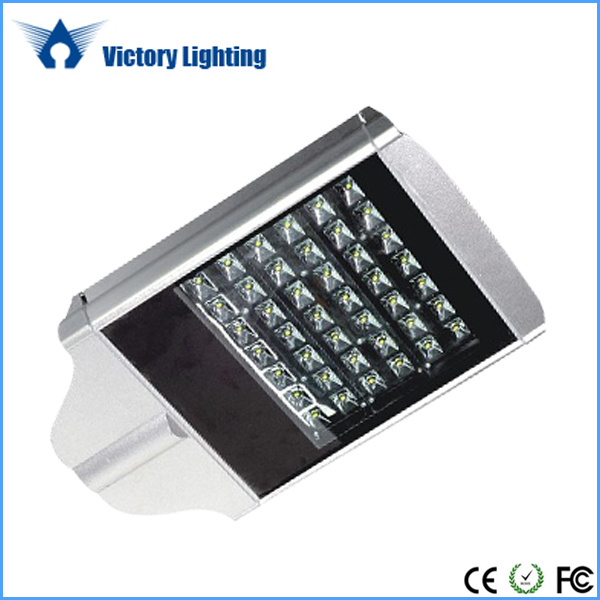

Engineering Waterproof 42W LED Street Light for Highway
Power: 42W/56W/70W/84W/98W/112W/126W/168W/196W/200W
Certification: CE&RoHS&EMC&LVD
LED Chip: Bridgelux 45MILx45MIL
IP Grade: IP65
PART ONE: Features
1. Long Lifespan: The life of highway LED street light is more than 50, 000 hours.
2. Unidirectional light: No light diffuser to ensure the efficiency of highway LED street light.
3. High Quality: The power circuit used in all high-quality components, each LED has a separate over-
current protection, without fear of damage.
4. High CRI: The CRI of highway LED street light is higher than HPS lot, high pressure sodium lamp color
rendering index of only 23, while the color rendering index of 75 or more.
5. Energy Saving Automatic Control Device: The highway LED street light can be achieved to satisfy the
lighting requirements of different conditions may reduce the mini power to save energy.
6. High Luminous Efficiency: Our Bridgelux LED Chips are with 110-110Lm/W, as opposed to traditional
high pressure sodium lamp can save more than 75%.
7. Simple Installation Method: No need to burry cable without rectifiers directly to the highway LED street
light poles installed in or connected to the original light source nested shells.
8. Uniform Light Color: Our highway LED street light is without lens, not to increase the brightness at the
expense of uniform light color, thus ensuring no aperture light color uniform.
PART TWO: Applications
Our street lighting mainly applied to urban expressway, trunk road, secondary trunk, branch, factories,
schools, gardens, residential areas, city squares other road lighting etc.
PART THREE: Contact Info.
For any information about our Project Waterproof 42W Highway LED Street Light, just free to contact me
online
| Project Waterproof 42W Highway LED Street Light (CE&RoHS) |
| Power | 42W/56W/84W/112W/
126W/168W/196W/200W | Size | 370x305x135mm |
| Housing Material | Aluminum Alloy | Color Temperature | 3000K--6500K |
| Lumens | 100-110 lm/W | Power Factor | > 0.95 |
| Working Temperature | -20° C-50° C | Weight | 5kg |
| Insulation Grade | I | Corrosion-Proof Grade | WF2 |
| Cable | 8-14 mm | IP Grade | IP65 |
| Application | highway, expressway,main road etc. | Voltage | AC85-265V |
| Warranty | 2 Years | Lifespan | ≥ 50, 000 hrs |
